Packages available:
聳 56-pin 240 mil wide plastic TSSOP (A)
聳 56-pin 300 mil wide plastic SSOP (V)
Product Description
Pericom Semiconductor鈥檚 PI74ALVCT series of logic circuits are
produced in the Company鈥檚 advanced 0.5 micron CMOS technology,
achieving industry leading speed.
The PI74ALVCT16260 is a 12-bit to 24-bit multiplexed D-type latch
designed for 2.3V to 3.6 Vcc operation. It is used in applications
where two separate datapaths must be multiplexed onto, or
demultiplexed from, a single data path.
Typical applications include multiplexing and/or demulti-plexing
address and data information in microprocessor or bus-interface
applications. This device is also useful in memory-interleaving
applications.

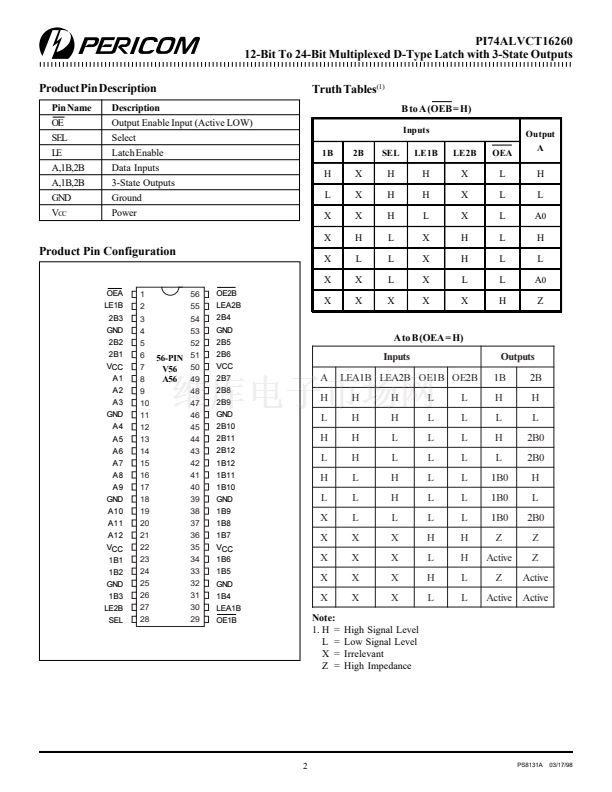

Three 12-bit I/O ports (A1-A12, 1B1-1B12, and 2B1-2B12) are available
for address and/or data transfer. The output-enable (OE1B, OE2B,
and OEA) inputs control the bus transceiver functions. The OE1B
and OE2B control signals also allow bank control in the A-to-B
direction.
Address and/or data information can be stored using the internal
storage latches. The latch-enable (LE1B, LE2B, LEA1B, and LEA2B)
inputs are used to control data storage. When the latch-enable input
is HIGH, the latch is transparent. When the latch-enable input goes
LOW, the data present at the inputs is latched and remains latched
until the latch-enable input is returned HIGH.
Logic Block Diagram
LE1B
LE2B
LEA1B
LEA2B
OE2B
2
27
30
55
56
To ensure the high-impedance state during power up or power down,
OE should be tied to Vcc through a pullup resistor, the minimum value
of the resistor is determined by the current-sinking capability of the
driver.
The ALVCT16260 can be driven from either 3.3V or 5V devices
allowing it to be used in mixed 3V/5V systems.
29
OE1B
1
28
G1
A1
8
1
1
C1
23
1D
1
B
1
OEA
SEL
C1
6
1D
2
B
1
C1
1D
C1
1D
TO 11 OTHER CHANNELS
1
