PI74ALVC162834
18-Bit Universal Bus Driver
with 3-State Outputs
Product Features
聲
聲
聲
聲
聲
聲
聲
PI74ALVC162834 is designed for low voltage operation,
V
CC
= 2.3V to 3.6V
Outputs have equivalent 26-Ohm series resistors
Supports PC100 Registered DIMM
Typical V
OLP
(Output Ground Bounce)
< 0.8V at V
CC
= 3.3V, T
A
= 25擄C
Typical V
OHV
(Output V
OH
Undershoot)
< 2.0V at V
CC
= 3.3V, T
A
= 25擄C
Industrial operation at 聳40擄C to +85擄C
Packages available:
聳 56-pin 240 mil wide plastic TSSOP (A)
聳 56-pin 173 mil wide plastic TVSOP (K)
聳 56-pin 300 mil wide plastic SSOP (V)
Product Description
Pericom Semiconductor聮s PI74ALVC series of logic circuits
are produced using the Company聮s advanced 0.5 micron CMOS
technology, achieving industry leading speed.
The 18-bit PI74ALVC162834 universal bus driver is designed
for 2.3V to 3.6V Vcc operation.
Data flow from A to Y is controlled by Output Enable (OE).
The device operates in the transparent mode when LE is LOW. The
A data is latched if CLK is held at a high or low logic level. If LE is
HIGH, the A-bus is stored in the latch/flip-flop on the low-to-high
transition of CLK. When OE is HIGH, the outputs are in the high-
impedance state.
To ensure the high-impedance state during power up or power down,
OE should be tied to Vcc through a pullup resistor; the minimum
value of the resistor is determined by the current-sinking capability
of the driver.
Logic Block Diagram
OE
27

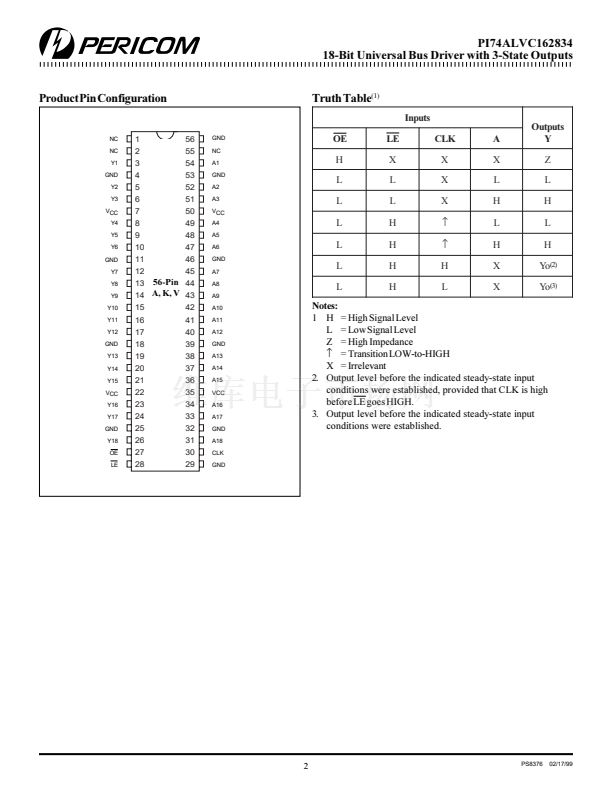

Product Pin Description
Pin Name
OE
LE
CLK
A
Y
GND
V
CC
1D
C1
CLK
3
Y1
CLK
30
28
LE
54
Description
Output Enable Input (Active LOW)
Latch Enable (Active LOW)
Clock Input
Data Input
Data Output
Ground
Power
A1
TO 17 OTHER CHANNELS
1
PS8376
02/17/99
1
2
3
4
5
