PI6C182B Datasheet

  • PI6C182B

  • Clock IC | Mobile PC. 10 Output Clock Driver. 133 MHz w/edge...

  • 572.15KB

  • 7頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

21098765432121098765432109876543210987654321210987654321098765432109876543212109876543210987654321098765432121098765432109876543210987654321
1
2109876543212109876543210987654321098765432121098765432109876543210987654321210987654321098765432109876543212109876543210987654321098765432
21098765432121098765432109876543210987654321210987654321098765432109876543212109876543210987654321098765432121098765432109876543210987654321
PI6C182B
Precision 1-10 Clock Buffer
Product Features
鈥?/div>
Low noise non-inverting 1-10 buffer
鈥?/div>
Supports frequency up to 140 MHz
鈥?/div>
Supports up to four SDRAM DIMMs
鈥?/div>
Low skew (<200ps) between any two output clocks
鈥?/div>
I
2
C Serial Configuration interface
鈥?/div>
Multiple V
DD
, V
SS
pins for noise reduction
鈥?/div>
3.3V power supply voltage
鈥?/div>
Separate Hi-Z state pin for testing
鈥?/div>

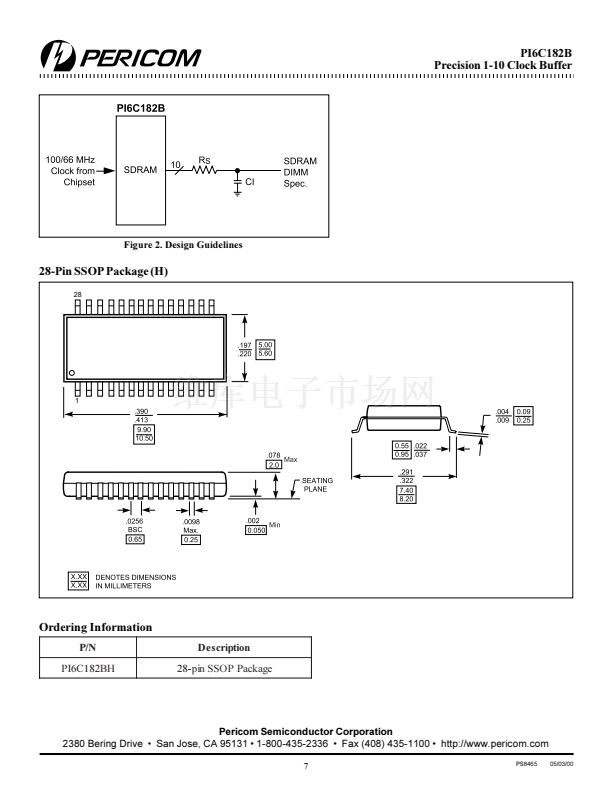

28-pin SSOP package (H)
Description
Pericom Semiconductor聮s PI6C clock series is produced using the
company聮s advanced submicron CMOS technology, achieving
industry leading speed.
The PI6C182B, a high-speed low-noise 1-10 noninverting buffer
designed for SDRAM clock buffer applications, supports higher
frequencies up to 140 MHz.

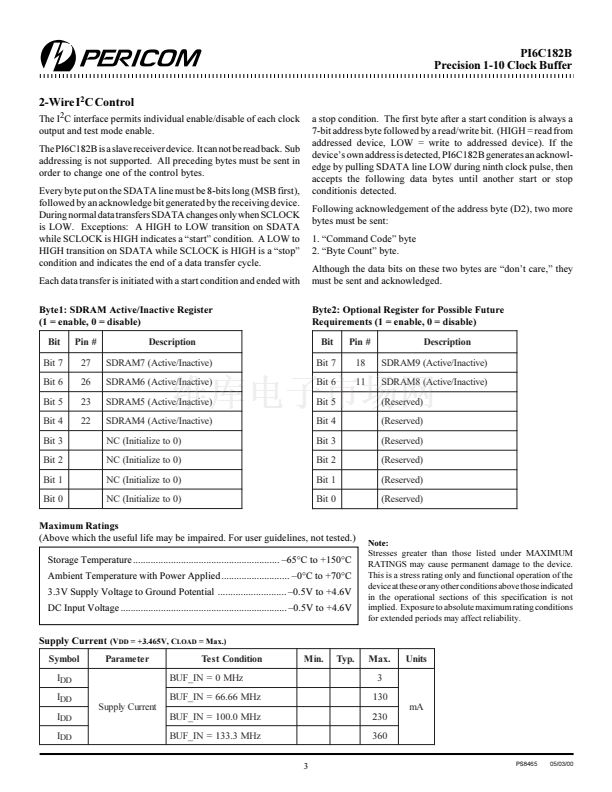

At power up all SDRAM output are enabled and active. The I
2
C
Serial control may be used to individually activate/deactivate any
of the 10 output drivers.
The output enable (OE) pin may be pulled low to Hi-Z state all
outputs.
Note:
Purchase of I
2
C components from Pericom conveys a license to
use them in an I
2
C system as defined by Philips.
Block Diagram
SDRAM0
Pin Configuration
VDD0
SDRAM1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
28-Pin
H
28
27
26
25
24
23
22
21
20
19
18
17
16
15
VDD5
SDRAM7
SDRAM6
VSS5
VDD4
SDRAM5
SDRAM4
VSS4
OE
VDD3
SDRAM9
VSS3
VSSIIC
SCLOCK
SDRAM0
SDRAM1
VSS0
VDD1
SDRAM2
SDRAM3
VSS1
BUF_IN
VDD2
SDRAM8
VSS2
VDDIIC
BUF_IN
SDRAM2
SDRAM3
SDRAM9
OE
SDATA
SCLOCK
I2C
I/O
SDATA
1
PS8465
05/03/00
