PI6C1816A Datasheet

  • PI6C1816A

  • Clock IC | 2.5/3.3V Quad 1:4. 16 Output Clock Driver

  • 180.01KB

  • 5頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

OUTA3
OUTA2
OUTA1
V
DDA
INA
V
DDB
INB
V
DDC
INC
V
DDD
IND
4
OUTD[0-3]
4
OUTC[0-3]
4
OUTB[0-3]
4
OUTA[0-3]
OUTB0
V
DDB
OUTB1
INB
OUTB2
GND
OUTB3
5
6
7
8
9
10
11
4
3
2
1 28 27 26
25
24
23
22
21
20
19
OUTD3
GND
OUTD2
IND
OUTD1
V
DDD
OUTD0
28-Pin
J
12 13 14 15 16 17 18
OUTC0
OUTC1
OUTC2
OUTC3
PS8681
V
DDC
GND
INC
OUTA0
V
DDA
GND
INA
21098765432121098765432109876543210987654321210987654321098765432109876543212109876543210987654321098765432121098765432109876543210987654321
21098765432121098765432109876543210987654321210987654321098765432109876543212109876543210987654321098765432121098765432109876543210987654321
21098765432121098765432109876543210987654321210987654321098765432109876543212109876543210987654321098765432121098765432109876543210987654321
PI6C1816A
2.5V/3.3V, 4x1:4, CMOS Clock Driver
Features
鈥?/div>
Maximum Operating Frequency: 133 MHz
鈥?/div>
Low skew: < 350ps
鈥?/div>
Low propagation delay: < 3.5ns
鈥?/div>
Fast output rise/fall time: < 1.0ns
鈥?/div>
Balanced CMOS outputs
鈥?/div>
Industrial Operation: -40
o
C to +85
o
C
鈥?/div>
2.5V and 3.3V supply voltage
鈥?/div>
3.3V and 5V tolerant input
鈥?/div>

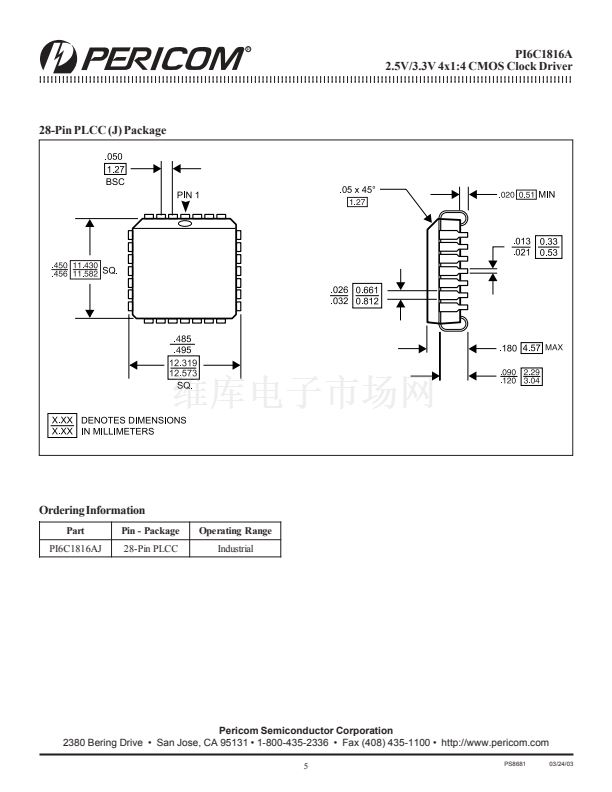

Available in 28-pin, 50-mil, PLCC (J28)
Description
The PI6C1816A is designed using CMOS technology to achieve
fast speed, low skew, low propagation delay, and fast rise and fall
times for applications requiring large fanouts, such as datacom,
telecom, and network systems.
The PI6C1816A is composed of non-inverting, 4 groups of 1-into
4-out driver. Each group of output has a pair of power and
ground pins to minimize noise and also improve performance.
PI6C1816A can be a voltage translator from 3.3V input to 2.5V
outputs, or 5V input to 3.3V outputs.
Block Diagram
Pin Configuration
1
03/24/03
