PI5V330A Datasheet

  • PI5V330A

  • ASSP | Wideband Video Mux/Demux (400 MHz)

  • 8頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

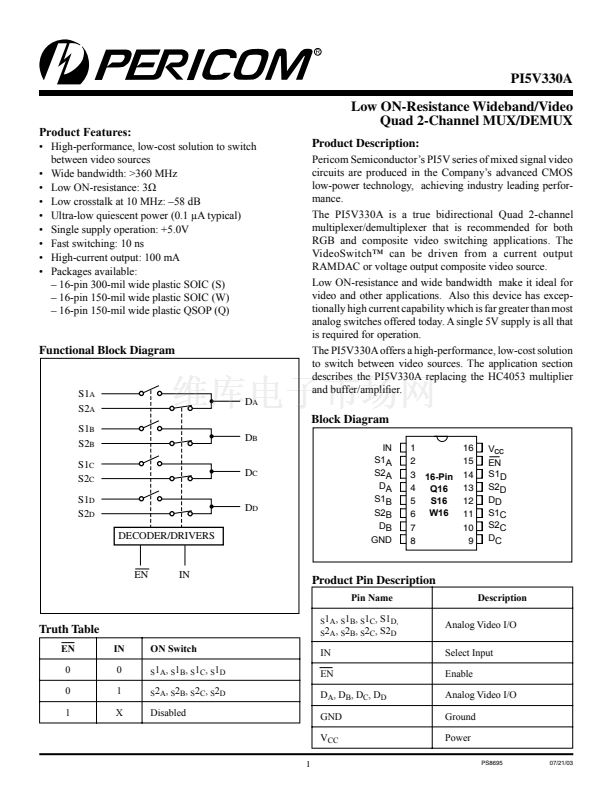

PI5V330A
Low ON-Resistance Wideband/Video
Quad 2-Channel MUX/DEMUX
Product Description:
Pericom Semiconductor鈥檚 PI5V series of mixed signal video
circuits are produced in the Company鈥檚 advanced CMOS
low-power technology, achieving industry leading perfor-
mance.
The PI5V330A is a true bidirectional Quad 2-channel
multiplexer/demultiplexer that is recommended for both
RGB and composite video switching applications. The
VideoSwitch鈩?can be driven from a current output
RAMDAC or voltage output composite video source.
Low ON-resistance and wide bandwidth make it ideal for
video and other applications. Also this device has excep-
tionally high current capability which is far greater than most
analog switches offered today. A single 5V supply is all that
is required for operation.
The PI5V330A offers a high-performance, low-cost solution
to switch between video sources. The application section
describes the PI5V330A replacing the HC4053 multiplier
and buffer/amplifier.
Product Features:
鈥?High-performance, low-cost solution to switch
between video sources
鈥?Wide bandwidth: >360 MHz
鈥?Low ON-resistance: 3惟
鈥?Low crosstalk at 10 MHz: 鈥?8 dB
鈥?Ultra-low quiescent power (0.1 碌A(chǔ) typical)
鈥?Single supply operation: +5.0V
鈥?Fast switching: 10 ns
鈥?High-current output: 100 mA
鈥?Packages available:
鈥?16-pin 300-mil wide plastic SOIC (S)
鈥?16-pin 150-mil wide plastic SOIC (W)
鈥?16-pin 150-mil wide plastic QSOP (Q)
Functional Block Diagram
S1
A
S2
A
S1
B
S2
B
D
A
D
B
Block Diagram
IN
S1A
S2A
DA
S1B
S2B
DB
1
2
3
4
5
6
7
8
16
15
14
13
12
11
10
9
Vcc
EN
S1D
S2D
DD
S1C
S2C
DC
S1
C
S2
C
S1
D
S2
D
DECODER/DRIVERS
D
C
D
D
16-Pin
Q16
S16
W16
GND
EN
IN
Product Pin Description
Pin Name
Description
Analog Video I/O
Select Input
Enable
Analog Video I/O
Ground
Power
PS8695
07/21/03
Truth Table
EN
0
0
1
IN
0
1
X
ON Switch
S
1
A
,
S
1
B
,
S
1
C
,
S
1
D
S
2
A
,
S
2
B
,
S
2
C
,
S
2
D
S
1
A
,
S
1
B
,
S
1
C
,
S
2
A
,
S
2
B
,
S
2
C
,
S1
D,
S2
D
IN
EN
D
A
, D
B
, D
C
, D
D
GND
V
CC
1
Disabled
