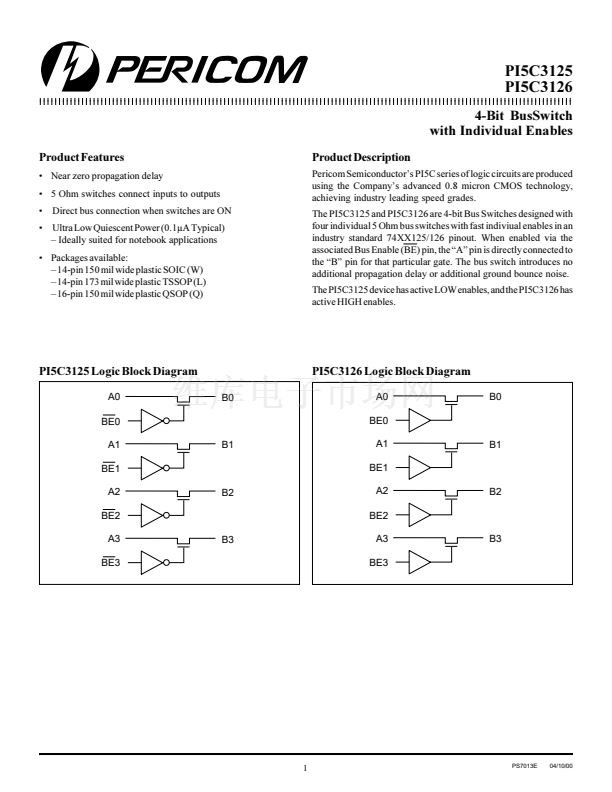

PI5C3125
PI5C3126
4-Bit BusSwitch
with Individual Enables
Product Features
聲 Near zero propagation delay
聲 5 Ohm switches connect inputs to outputs
聲
聲
Direct bus connection when switches are ON
Ultra Low Quiescent Power (0.1碌A(chǔ) Typical)
聳 Ideally suited for notebook applications
Product Description
Pericom Semiconductor聮s PI5C series of logic circuits are produced
using the Company聮s advanced 0.8 micron CMOS technology,
achieving industry leading speed grades.
The PI5C3125 and PI5C3126 are 4-bit Bus Switches designed with
four individual 5 Ohm bus switches with fast indiviual enables in an
industry standard 74XX125/126 pinout. When enabled via the
associated Bus Enable (BE) pin, the 聯A聰 pin is directly connected to
the 聯B聰 pin for that particular gate. The bus switch introduces no
additional propagation delay or additional ground bounce noise.
The PI5C3125 device has active LOW enables, and the PI5C3126 has
active HIGH enables.
聲 Packages available:
聳 14-pin 150 mil wide plastic SOIC (W)
聳 14-pin 173 mil wide plastic TSSOP (L)
聳 16-pin 150 mil wide plastic QSOP (Q)
PI5C3125 Logic Block Diagram
A0
BE0
A1
BE1
A2
BE2
A3
BE3
B3
B2
B1
B0
PI5C3126 Logic Block Diagram
A0
BE0
A1
BE1
A2
BE2
A3
BE3
B3
B2
B1
B0
1
PS7013E
04/10/00
