Pin-compatible with DG40X, MAX38X
Description
The PI5A381/383/385A are dual monolithic analog switches
designed for single-supply operation. These high-precision
devices are ideal for low-distortion audio, video signal switching
and routing.
The PI5A381 is a dual single-pole single-throw (SPST), nor-
mally open (NO) switch. The PI5A383 is a dual single-pole
double-throw (SPDT) switch. The PI5A385 is a dual double-
pole single-throw (DPST), normally open (NO) function.
Each switch conducts current equally well in either direction
when on. When off they block voltages up to the power-supply
rails.
The PI5A381/383/385 are fully specified with +5V, and +3.3V
supplies. With +5V, they guarantee <10鈩?on-resistance. On-
resistance matching between channels is within 2鈩? On-
resistance flatness is less than 4鈩?over the specified range. The
PI5A38X family guarantees fast switching speeds (t
ON
< 15ns).
These products are available in the 16-pin narrow-body SOIC,
QSOP, and PDIP packages for operation over the industrial
(-40
o
C to +85
o
C) temperature range.
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Applications
Audio, Video Switching and Routing
Battery-Powered Communication Systems
Computer Peripherals
Telecommunications
Portable Instrumentation
Replaces Mechanical Relays
Functional Diagram, Pin Configurations and Truth Tables
COM1
NIC
COM3
NC3
NC4
COM4
NIC
COM2
1
2
3
4
5
6
7
8
PI5A383A
16 NO1
15 IN1
14 NIC
13 GND
12 NIC
11 VCC
10 IN2
9 NO2
Switches shown for Logic 鈥?鈥?input
NC = Normally Closed, NO = Normally Open, NIC = Not internally Connected
PI5A381A
Logic
0
1
Switch
O FF
ON
Logic
0
1
PI5A383A
SW1, SW2
O FF
ON
SW3, SW4
ON
O FF
PI5A385A
Logic
0
1
Switch
O FF
ON

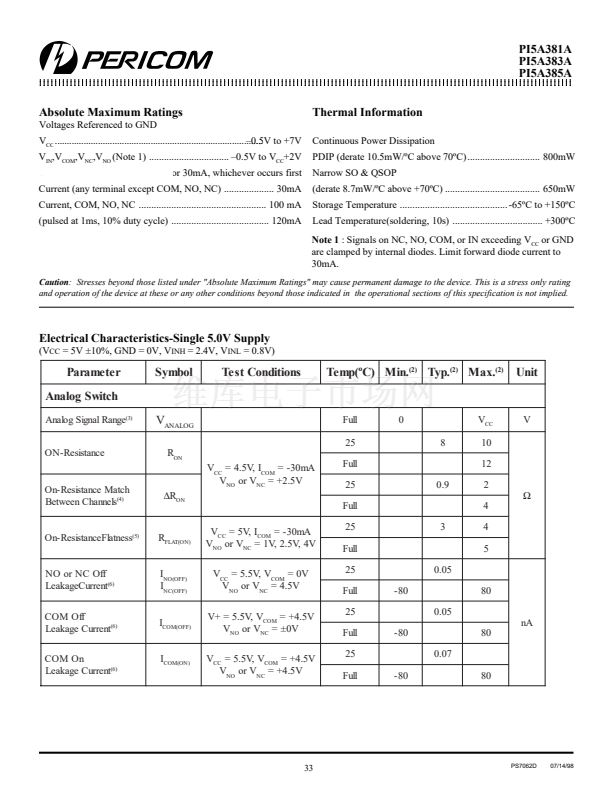

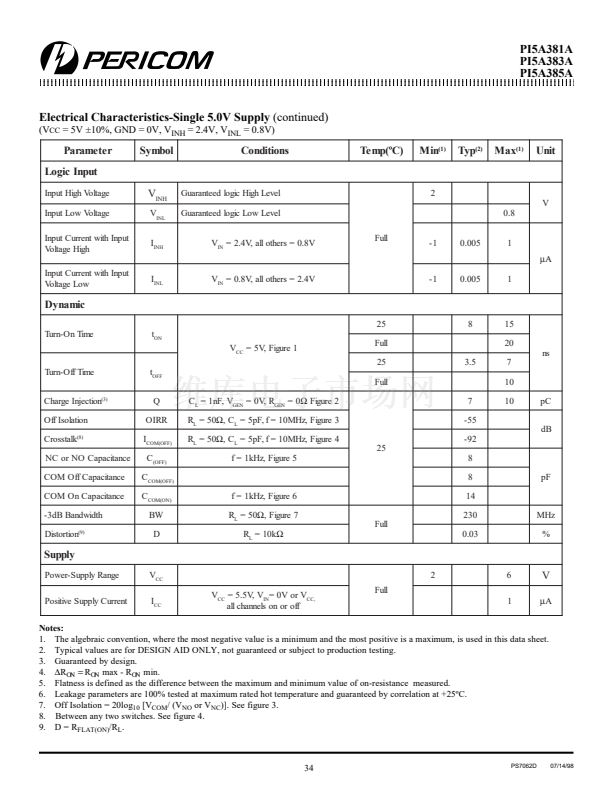

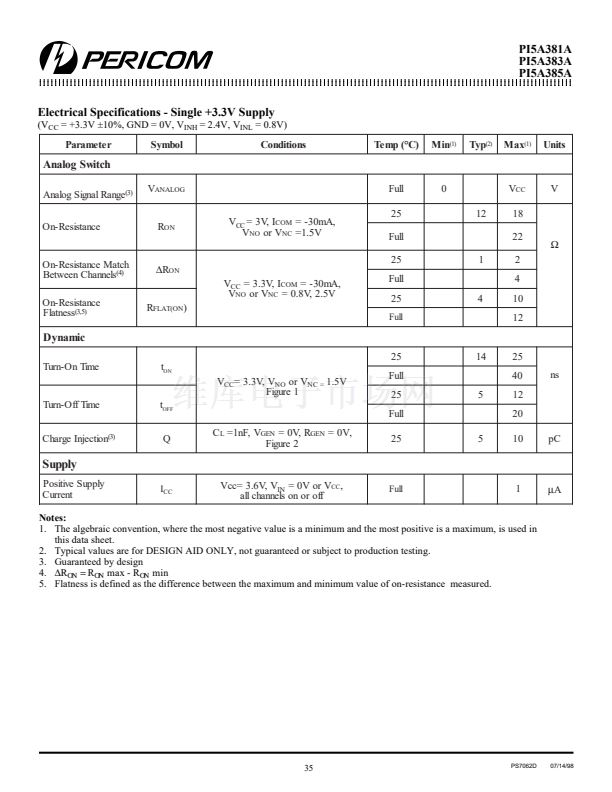

32
PS7062D
07/14/98
