Product Features
聲 Near zero propagation delay
聲 20 Ohm switches connect inputs to outputs
聲 Fast Switching Speed - 3.8ns (max.)
聲 Packages available:
聳 24-pin 150 mil wide plastic QSOP (Q)
聳 24-pin 173 mil wide plastic TSSOP (L)
21098765432121098765432109876543210987654321210987654321098765432109876543212109876543210987654321098765432121098765432109876543210987654321
21098765432121098765432109876543210987654321210987654321098765432109876543212109876543210987654321098765432121098765432109876543210987654321
PI3B3863
3.3V, 10-Bit, 2-Port BusSwitch
with SSTL-2 Enable
Product Description
Pericom聮s Semiconductor聮s PI3B series of logic circuits are
produced using the Company聮s advanced sub micron CMOS
technology, achieving industry leading performance.
The PI3B3863 is a 10-bit, 3.3 volt two-port bus switch designed
with a low ON resistance allowing inputs to be connected
directly to outputs. The bus switch creates no additional
propagational delay or additional ground bounce noise. The
switches are turned ON by the Bus Enable (BE) input signal,
which is SSTL-2 compatible.
Logic Block Diagram
Product Pin Configuration
24-Pin
Q, L
Truth Table
(1)
Function
Disconnect
Connect
Note:
BE
H
L
A
0聳9
Hi-Z
B
0聳9
Product Pin Description
Pin Name
BE
A0聳9
B0聳9
GND
V
CC
V
REF
Description
Bus Enable Input (Active LOW)
Bus A
Bus B
Ground
Power
Input Reference
1. H = High Voltage Level
L = Low Voltage Level
Hi-Z = High Impedance
1
PS8167D
01/05/00
1

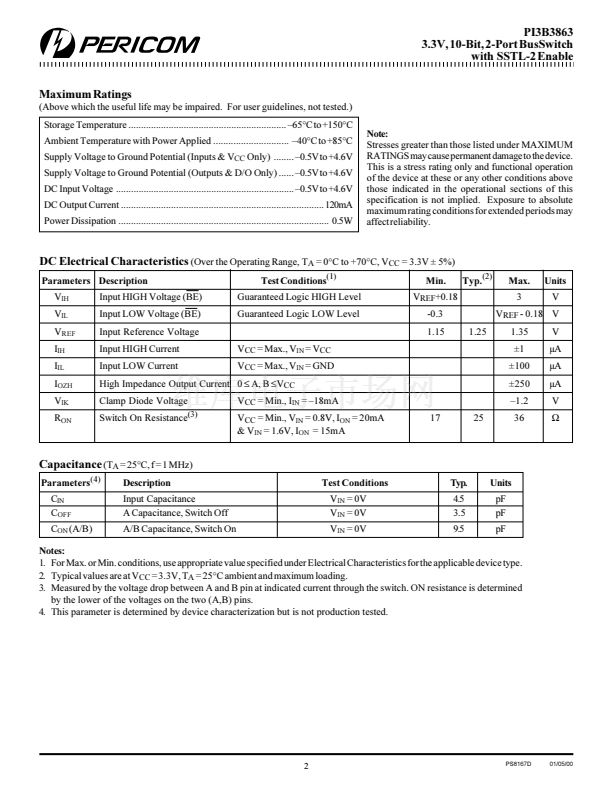

2

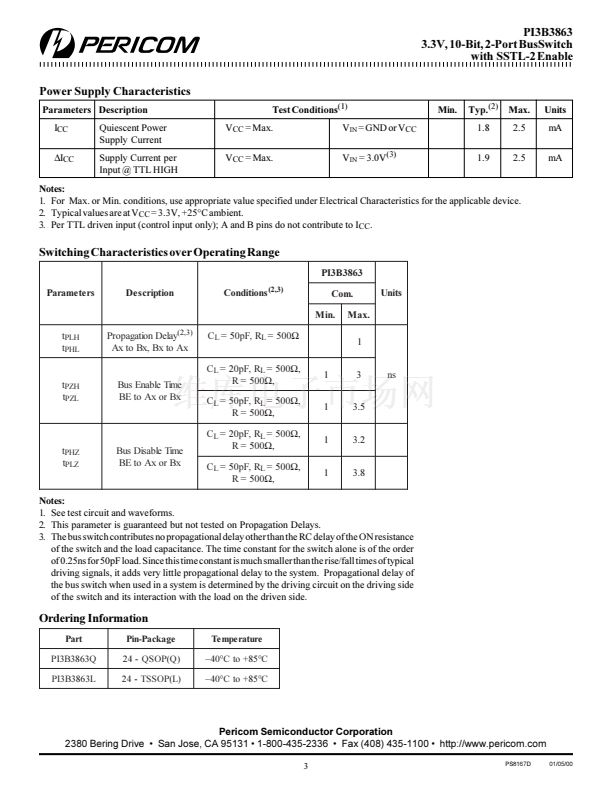

3
