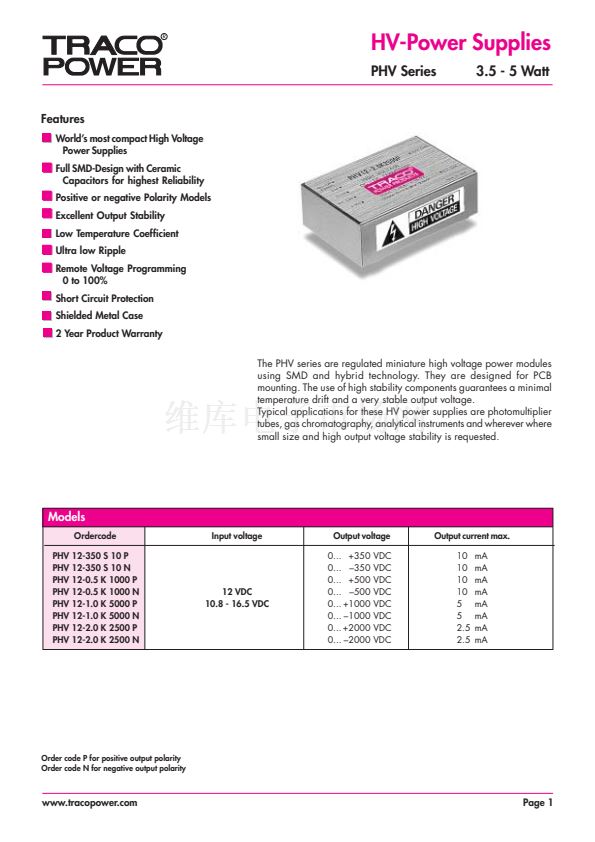

HV-Power Supplies
PHV Series
Features
World鈥檚 most compact High Voltage
Power Supplies
Full SMD-Design with Ceramic
Capacitors for highest Reliability
Positive or negative Polarity Models
Excellent Output Stability
Low Temperature Coefficient
Ultra low Ripple

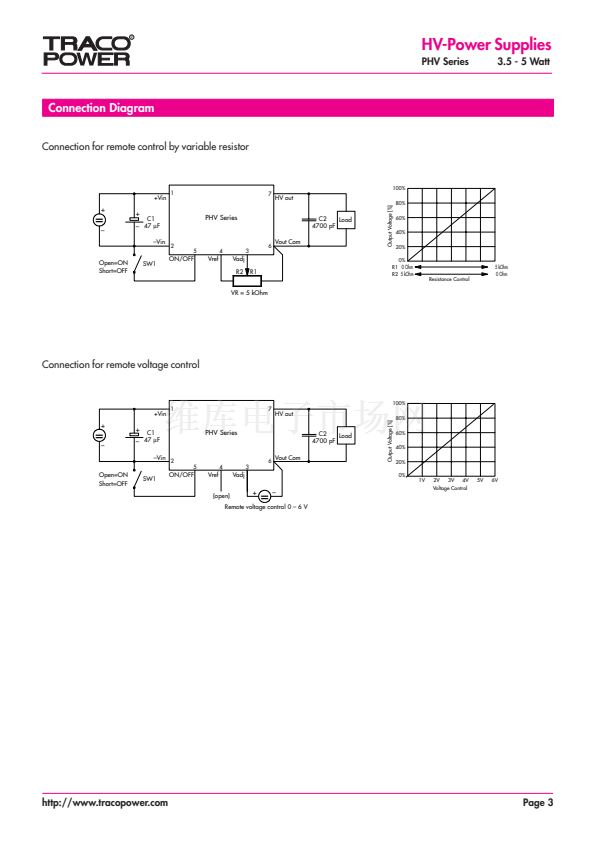

Remote Voltage Programming
0 to 100%
Short Circuit Protection
Shielded Metal Case
2 Year Product Warranty

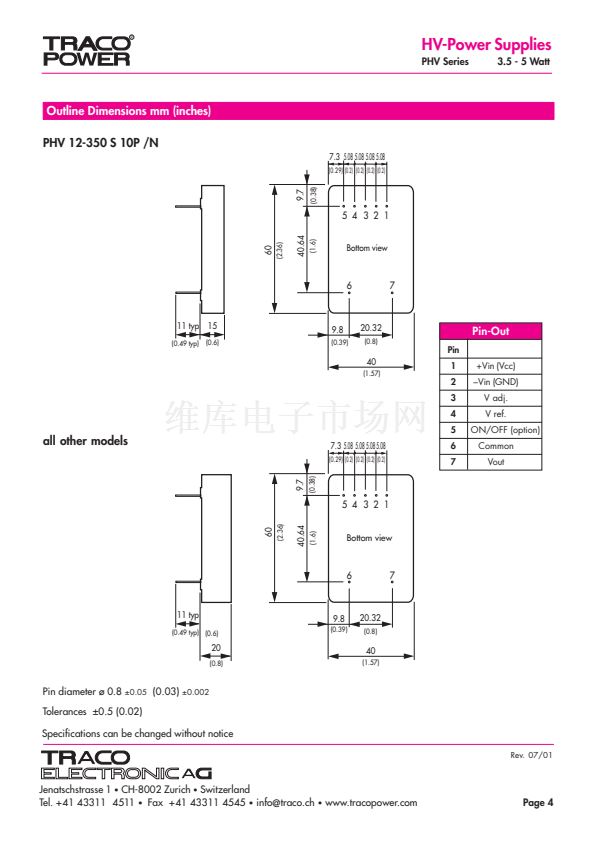

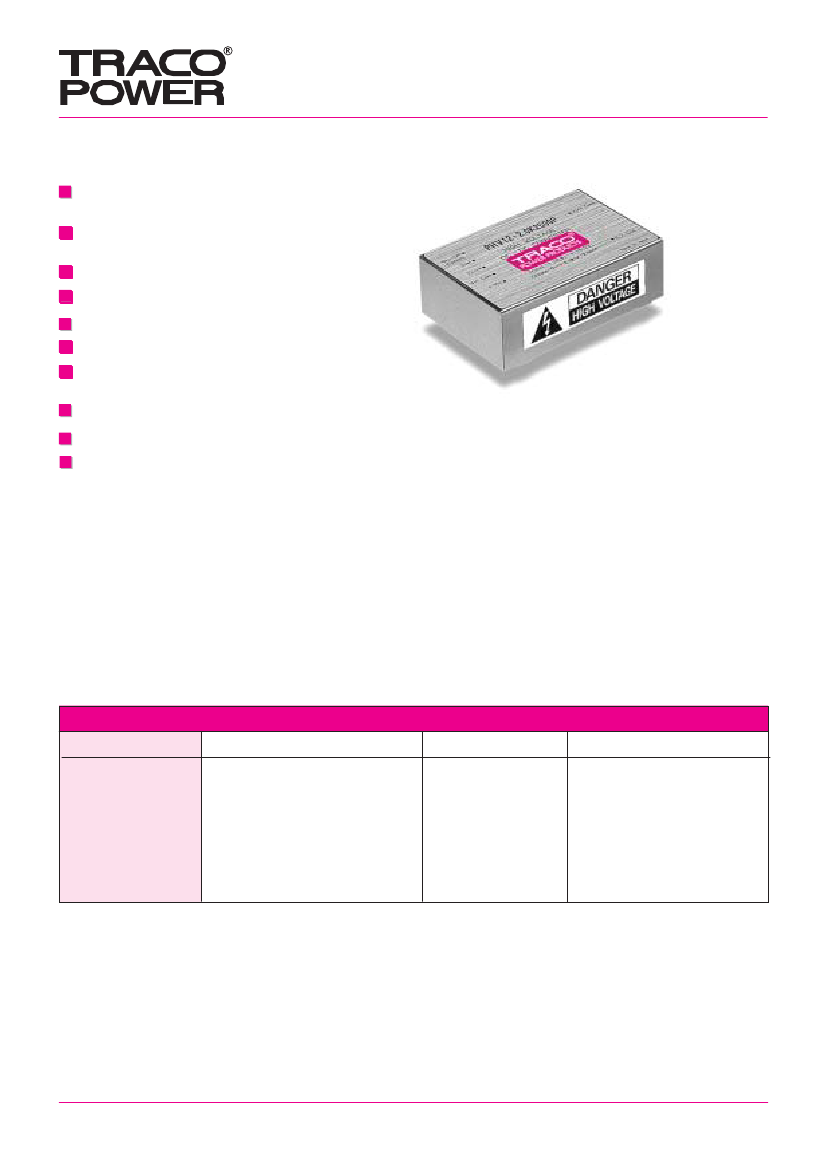

The PHV series are regulated miniature high voltage power modules
using SMD and hybrid technology. They are designed for PCB
mounting. The use of high stability components guarantees a minimal
temperature drift and a very stable output voltage.
Typical applications for these HV power supplies are photomultiplier
tubes, gas chromatography, analytical instruments and wherever where
small size and high output voltage stability is requested.
3.5 - 5 Watt
Models
Ordercode
PHV 12-350 S 10 P
PHV 12-350 S 10 N
PHV 12-0.5 K 1000 P
PHV 12-0.5 K 1000 N
PHV 12-1.0 K 5000 P
PHV 12-1.0 K 5000 N
PHV 12-2.0 K 2500 P
PHV 12-2.0 K 2500 N
Input voltage
Output voltage
0... +350
0... 鈥?50
0... +500
0... 鈥?00
0... +1000
0... 鈥?000
0... +2000
0... 鈥?000
VDC
VDC
VDC
VDC
VDC
VDC
VDC
VDC
Output current max.
10
10
10
10
5
5
2.5
2.5
mA
mA
mA
mA
mA
mA
mA
mA
12 VDC
10.8 - 16.5 VDC
Order code P for positive output polarity
Order code N for negative output polarity

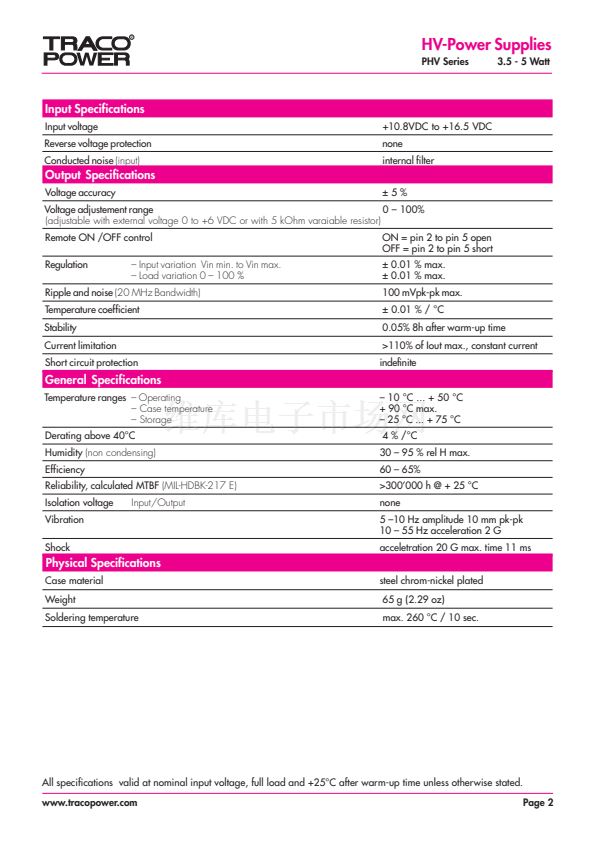

www.tracopower.com
Page 1
