PHB30NQ15T Datasheet

  • PHB30NQ15T

  • N-channel TrenchMOS transistor

  • 100.58KB

  • 9頁

  • PHILIPS

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

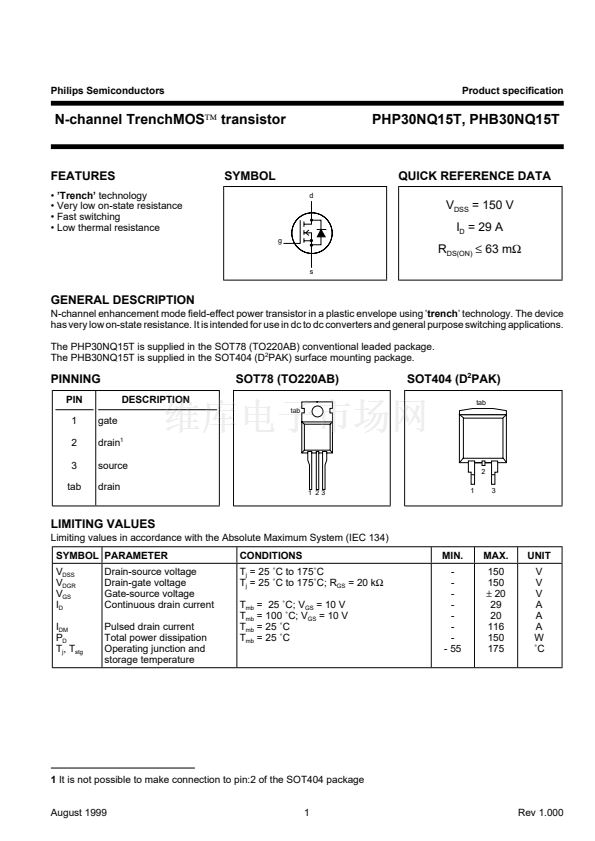

Philips Semiconductors
Product specification
N-channel TrenchMOS鈩?transistor
PHP30NQ15T, PHB30NQ15T
FEATURES
鈥?/div>
鈥橳rench鈥?/div>
technology
鈥?Very low on-state resistance
鈥?Fast switching
鈥?Low thermal resistance
SYMBOL
d
QUICK REFERENCE DATA
V
DSS
= 150 V
I
D
= 29 A
g
R
DS(ON)
鈮?/div>
63 m鈩?/div>
s
GENERAL DESCRIPTION
N-channel enhancement mode field-effect power transistor in a plastic envelope using 鈥檛rench鈥?technology. The device
has very low on-state resistance. It is intended for use in dc to dc converters and general purpose switching applications.
The PHP30NQ15T is supplied in the SOT78 (TO220AB) conventional leaded package.
The PHB30NQ15T is supplied in the SOT404 (D
2
PAK) surface mounting package.
PINNING
PIN
1
2
3
tab
gate
drain
1
source
drain
DESCRIPTION
SOT78 (TO220AB)
tab
SOT404 (D
2
PAK)
tab
2
1 23
1
3
LIMITING VALUES
Limiting values in accordance with the Absolute Maximum System (IEC 134)
SYMBOL PARAMETER
V
DSS
V
DGR
V
GS
I
D
I
DM
P
D
T
j
, T
stg
Drain-source voltage
Drain-gate voltage
Gate-source voltage
Continuous drain current
Pulsed drain current
Total power dissipation
Operating junction and
storage temperature
CONDITIONS
T
j
= 25 藲C to 175藲C
T
j
= 25 藲C to 175藲C; R
GS
= 20 k鈩?/div>
T
mb
= 25 藲C; V
GS
= 10 V
T
mb
= 100 藲C; V
GS
= 10 V
T
mb
= 25 藲C
T
mb
= 25 藲C
MIN.
-
-
-
-
-
-
-
- 55
MAX.
150
150
鹵
20
29
20
116
150
175
UNIT
V
V
V
A
A
A
W
藲C
1
It is not possible to make connection to pin:2 of the SOT404 package
August 1999
1
Rev 1.000
