PH270F6 Datasheet

IC型號：
PH270F6
PDF描述：
FRD MODULE 270A/600V/trr:170nsec
文件大?。?/label>
33.48KB
PDF頁數：
2頁
芯片廠家：
NIEC

閱覽下載糾錯 0

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

FRD MODULE

FEATURES

* Isolated Base

* Ultra Fast Recovery

* High Surge Capability

* UL Recognized, File No. E187184

270A/600V/trr:170nsec

PH270F6

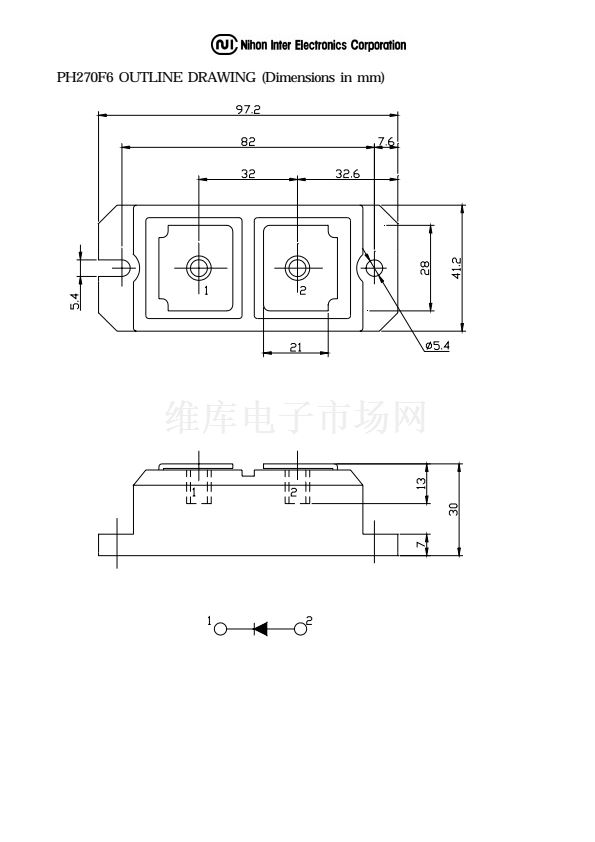

OUTLINE DRAWING

TYPICAL APPLICATIONS

* High Frequency Rectification

Maximum Ratings

Voltage Rating

Repetitive Peak Reverse Voltage

Symbol

RRM

F(RMS)

FSM

Tjw

Tstg

Viso

Ftor

Approx Net Weight:280g

PH270F6

600

Unit

Rating

Electrical Rating

Average Rectified Output Current

RMS Forward Current

Surge Forward Current

I Squared t

Operating JunctionTemperature Range

Storage Temperature Range

Isoration Voltage

Mounting torque

Condition

50Hz Half Sine Wave

Tc=82擄C

50 Hz Half Sine Wave,1cycle

Non-repetitive

2msec to 10msec

Rating

270

424

3000

45000

-40 to +150

擄C

-40 to +125

擄C

Base Plate to Terminal, AC1min

2000

Case mounting(recommended)

2.6

鈥?/div>

Terminal Screw(recommended)

9.0

Electrical

鈥?/div>

Thermal Characteristics

Characteristics

Peak Forward Voltage

Peak Reverse Current

Reverse Recovery Time

Thermal Resistance

Symbol

trr

Rth(j-c)

Test Conditions

Max. Unit

1.50

150

0.17

0.06

擄C/W

= 270A, Tj=25擄C

= V

RRM,

Tj= 150擄C

= 10A, -di/dt= 50 A/碌s, Ta= 25擄C

Junction to Case

Base Plate to Heat Sink with Thermal

Rth(c-f)

Compound
