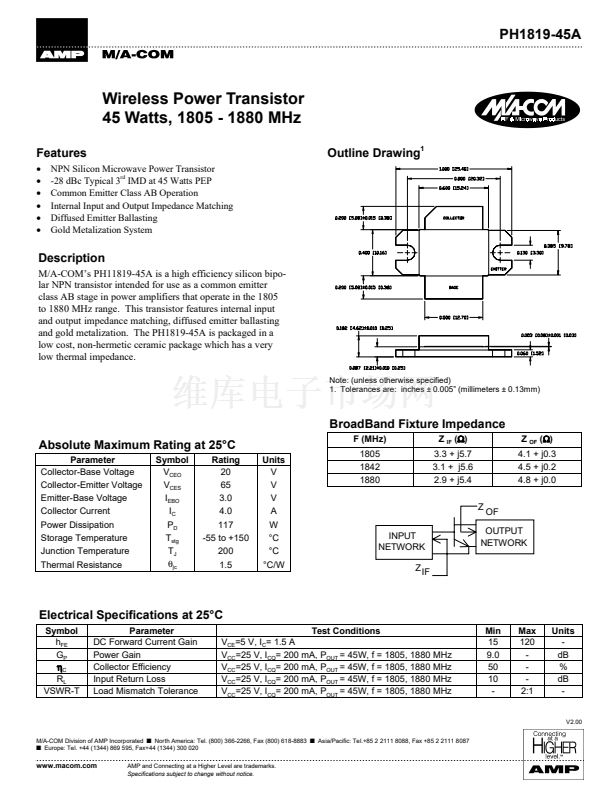

NPN Silicon Microwave Power Transistor
rd
-28 dBc Typical 3 IMD at 45 Watts PEP
Common Emitter Class AB Operation
Internal Input and Output Impedance Matching
Diffused Emitter Ballasting
Gold Metalization System
Outline Drawing
1
Description
M/A-COM鈥檚 PH11819-45A is a high efficiency silicon bipo-
lar NPN transistor intended for use as a common emitter
class AB stage in power amplifiers that operate in the 1805
to 1880 MHz range. This transistor features internal input
and output impedance matching, diffused emitter ballasting
and gold metalization. The PH1819-45A is packaged in a
low cost, non-hermetic ceramic package which has a very
low thermal impedance.
Note: (unless otherwise specified)
1. Tolerances are: inches 鹵 0.005鈥?(millimeters 鹵 0.13mm)
BroadBand Fixture Impedance
Absolute Maximum Rating at 25擄C
Parameter
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Collector Current
Power Dissipation
Storage Temperature
Junction Temperature
Thermal Resistance
Symbol
V
CEO
V
CES
I
EBO
I
C
P
D
T
stg
T
J
胃
jc
Rating
20
65
3.0
4.0
117
-55 to +150
200
1.5
Units
V
V
V
A
W
擄C
擄C
擄C/W
F (MHz)
1805
1842
1880
Z
IF
(鈩?
3.3 + j5.7
3.1 + j5.6
2.9 + j5.4
Z
OF
(鈩?
4.1 + j0.3
4.5 + j0.2
4.8 + j0.0
Z
INPUT
NETWORK
Z IF
OF
OUTPUT
NETWORK
Electrical Specifications at 25擄C
Symbol
h
FE
G
P
畏
C
R
L
VSWR-T
Parameter
DC Forward Current Gain
Power Gain
Collector Efficiency
Input Return Loss
Load Mismatch Tolerance
Test Conditions
V
CE
=5 V, I
C
= 1.5 A
V
CC
=25 V, I
CQ
= 200 mA, P
OUT
= 45W, f = 1805, 1880 MHz
V
CC
=25 V, I
CQ
= 200 mA, P
OUT
= 45W, f = 1805, 1880 MHz
V
CC
=25 V, I
CQ
= 200 mA, P
OUT
= 45W, f = 1805, 1880 MHz
V
CC
=25 V, I
CQ
= 200 mA, P
OUT
= 45W, f = 1805, 1880 MHz
Min
15
9.0
50
10
-
Max
120
-
-
-
2:1
Units
-
dB
%
dB
-
V2.00
M/A-COM Division of AMP Incorporated
3
North America: Tel. (800) 366-2266, Fax (800) 618-8883
3
Asia/Pacific: Tel.+85 2 2111 8088, Fax +85 2 2111 8087
3
Europe: Tel. +44 (1344) 869 595, Fax+44 (1344) 300 020
www.macom.com
AMP and Connecting at a Higher Level are trademarks.
Specifications subject to change without notice.
