NPN Silicon Microwave Power Transistor
Common Base Configuration
Broadband Class C Operation
High Efficiency Interdigitated Geometry
Diffused Emitter Ballasting Resistors
Gold Metalization System
Internal Input and Output Impedance Matching
Hermetic Metal/Ceramic Package
Outline Drawing
1
Description
M/A-COM鈥檚 PH1090-350L is a silicon bipolar NPN power
transistor intended for use in L-band, 1.2 - 1.4 GHz avionics
equipment such as IFF, mode-S and TCAS systems. Designed
for common-base, class C, broadband pulsed power applica-
tions, the PH1090-350L delivers 7.5 dB of gain at 350 watts of
output power when operating with long pulse length (250碌S), at
10 percent duty cycle. The transistor is housed in a 2-lead,
rectangular metal-ceramic flange package, with internal input
and output impedance matching networks. Diffused emitter
ballast resistors and gold metalization assure ruggedness and
long-term reliability.
Notes: (unless otherwise specified)
1. Tolerances are: inches 鹵 .005鈥?(millimeters 鹵 0.13mm)
Narrowband Test Fixture Impedance
F (MHz)
Z
IF
(鈩?
2.5 - j1.5
Z
OF
(鈩?
1.1 + j0.9
1090
Absolute Maximum Rating at 25擄C
Parameter
Collector-Emitter Voltage
Emitter-Base Voltage
Collector Current (Peak)
Total Power Dissipation
@ +25擄C
Storage Temperature
Junction Temperature
Symbol
V
CES
V
EBO
I
C
P
TOT
T
stg
T
j
Rating
80
3.0
17
750
-65 to +200
200
Units
V
V
A
W
擄C
擄C

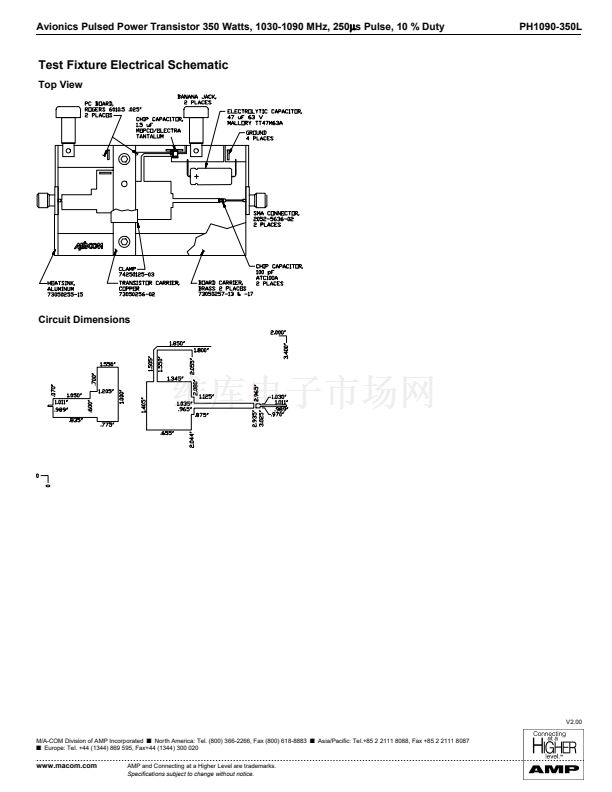

TEST FIXTURE
INPUT
CIRCUIT
TEST FIXTURE
OUTPUT
CIRCUIT
50
鈩?/div>
ZIF
ZOF
50
鈩?/div>
Electrical Specifications at 25擄C
Symbol
BV
CES
I
CES
R
TH(JC)
P
in
G
P
畏
R
L
VSWR-T
VSWR-S
Parameter
Collector-Emitter Breakdown
Collector-Emitter Leakage
Thermal Resistance
Input Power
Power Gain
Collector Efficiency
Input Return Loss
Load Mismatch Tolerance
Load Mismatch Stability
Test Conditions
I
C
=250mA
V
CE
=45 V
V
CC
=45 V, P
in
=350 W, f=1090 MHz
V
CC
=45 V, P
in
=350 W, f=1090 MHz
V
CC
=45 V, P
in
=350 W, f=1090 MHz
V
CC
=45 V, P
in
=350 W, f=1090 MHz
V
CC
=45 V, P
in
=350 W, f=1090 MHz
V
CC
=45 V, P
in
=350 W, f=1090 MHz
V
CC
=45 V, P
in
=350 W, f=1090 MHz
Min
80
-
-
-
8.0
55
9
-
-
Max
-
25
0.2
55
-
-
-
2:1
1.5:1
Units
V
mA
擄C/W
W
dB
%
dB
-
-
V2.00
M/A-COM Division of AMP Incorporated
3
North America: Tel. (800) 366-2266, Fax (800) 618-8883
3
Asia/Pacific: Tel.+85 2 2111 8088, Fax +85 2 2111 8087
3
Europe: Tel. +44 (1344) 869 595, Fax+44 (1344) 300 020
www.macom.com
AMP and Connecting at a Higher Level are trademarks.
Specifications subject to change without notice.
