PGR 203 01
PIN Receiver Module
for 2.5 Gb/s
Key Features
鈥?Hermetic, 14 pin butterfly package with
multisourced footprint
鈥?FC/PC, SC or ST connector
鈥?InGaAs PIN photo diode with low noise
GaAs MMIC preamplifier
鈥?AC-coupled, single-ended data output
鈥?Operates between 1250 nm and
1620 nm
鈥?1.7 GHz typical bandwidth
鈥?-25 dBm typical sensitivity
鈥?+0.5 dBm typical overload
Applications
鈥?SDH STM-16 SH
鈥?SONET OC-48 IR
鈥?Digital recievers to 2.5 Gb/s
鈥?Analog receivers to 1.8 GHz

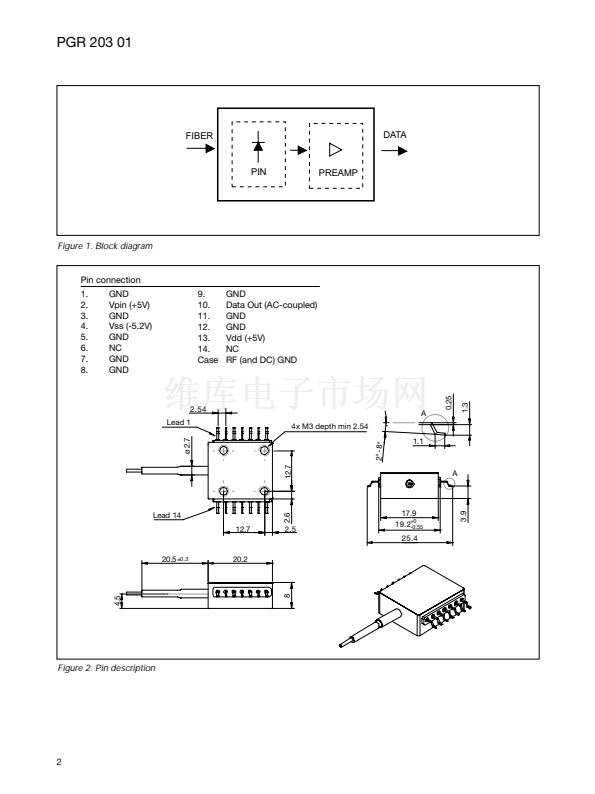

Description
Fiber optic receiver front-end module for STM-16 and OC-48 applications.
The module includes an InGaAs PIN Photo Diode, with a low noise GaAs
MMIC preamplifier in a 14 pin butterfly package. The single-mode fiber pigtail
is terminated with a customer specified connector. The module operates
between 1250 and 1620 nm. The electrical output is AC-coupled, single
ended and inverted i.e., light on equals logic low.
