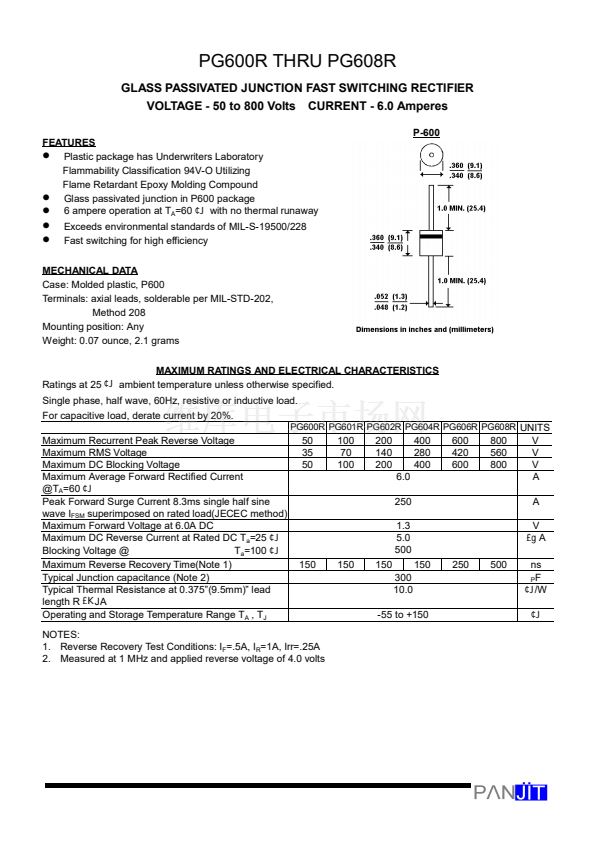

PG600R THRU PG608R
GLASS PASSIVATED JUNCTION FAST SWITCHING RECTIFIER
VOLTAGE - 50 to 800 Volts
CURRENT - 6.0 Amperes
P-600
FEATURES
l
Plastic package has Underwriters Laboratory
Flammability Classification 94V-O Utilizing
Flame Retardant Epoxy Molding Compound
l
Glass passivated junction in P600 package
l
6 ampere operation at T
A
=60
壟J
with no thermal runaway
l
Exceeds environmental standards of MIL-S-19500/228
l
Fast switching for high efficiency
MECHANICAL DATA
Case: Molded plastic, P600
Terminals: axial leads, solderable per MIL-STD-202,
Method 208
Mounting position: Any
Weight: 0.07 ounce, 2.1 grams
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25
壟J
ambient temperature unless otherwise specified.
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
PG600R PG601R PG602R PG604R PG606R PG608R
UNITS
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
@T
A
=60
壟J
Peak Forward Surge Current 8.3ms single half sine
wave I
FSM
superimposed on rated load(JECEC method)
Maximum Forward Voltage at 6.0A DC
Maximum DC Reverse Current at Rated DC T
a
=25
壟J
Blocking Voltage @
T
a
=100
壟J

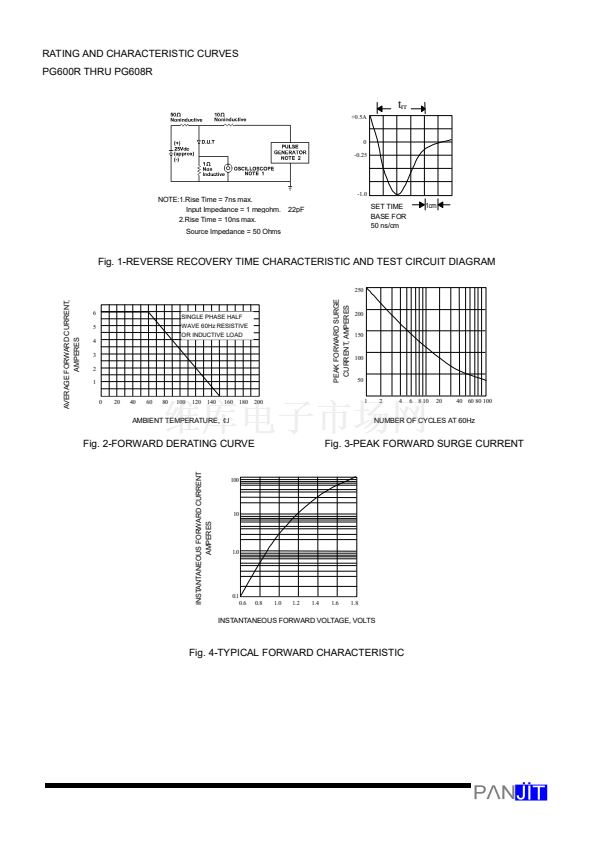

Maximum Reverse Recovery Time(Note 1)
Typical Junction capacitance (Note 2)
Typical Thermal Resistance at 0.375鈥?9.5mm)鈥?lead
length R
攏K
JA
Operating and Storage Temperature Range T
A
, T
J
50
35
50
100
70
100
200
140
200
6.0
250
1.3
5.0
500
400
280
400
600
420
600
800
560
800
V
V
V
A
A
V
攏g
A
150
150
150
300
10.0
150
250
500
ns
P
F
壟J
/W
壟J
-55 to +150
NOTES:
1. Reverse Recovery Test Conditions: I
F
=.5A, I
R
=1A, Irr=.25A
2. Measured at 1 MHz and applied reverse voltage of 4.0 volts
