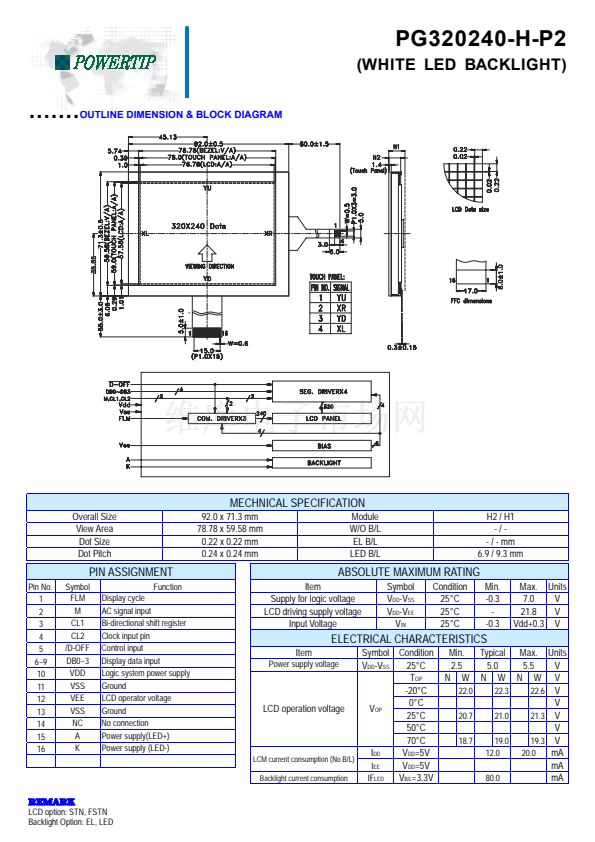

PG320240-H-P2
(WHITE LED BACKLIGHT)
鈥︹€?
OUTLINE DIMENSION & BLOCK DIAGRAM
MECHNICAL SPECIFICATION
Overall Size
View Area
Dot Size
Dot Pitch
92.0 x 71.3 mm
78.78 x 59.58 mm
0.22 x 0.22 mm
0.24 x 0.24 mm
Function
Display cycle
AC signal input
Bi-directional shift register
Clock input pin
Control input
Display data input
Logic system power supply
Ground
LCD operator voltage
Ground
No connection
Power supply(LED+)
Power supply (LED-)
Module
W/O B/L
EL B/L
LED B/L
Item
Supply for logic voltage
LCD driving supply voltage
Input Voltage
Item
Power supply voltage
H2 / H1
-/-
- / - mm
6.9 / 9.3 mm
Symbol
V
DD
-V
SS
V
DD
-V
EE
V
IN
Condition
25擄C
25擄C
25擄C
Min.
2.5
N W
22.0
20.7
18.7
PIN ASSIGNMENT
Pin No.
1
2
3
4
5
6~9
10
11
12
13
14
15
16
Symbol
FLM
M
CL1
CL2
/D-OFF
DB0~3
VDD
VSS
VEE
VSS
NC
A
K
ABSOLUTE MAXIMUM RATING
Min.
-0.3
-
-0.3
Typical
5.0
N W
Max. Units
7.0
V
21.8
V
Vdd+0.3 V
ELECTRICAL CHARACTERISTICS
Symbol Condition
V
DD
-V
SS
25擄C
T
OP
-20擄C
0擄C
V
OP
25擄C
50擄C
70擄C
I
DD
V
DD
=5V
I
EE
V
DD
=5V
IF
LED
V
B/L
=3.3V
Max. Units
5.5
V
N W V
22.3
22.6
V
V
21.0
21.3
V
V
19.0
19.3
V
12.0
20.0
mA
mA
80.0
mA
LCD operation voltage
LCM current consumption (No B/L)
Backlight current consumption
REMARK
LCD option: STN, FSTN
Backlight Option: EL, LED
