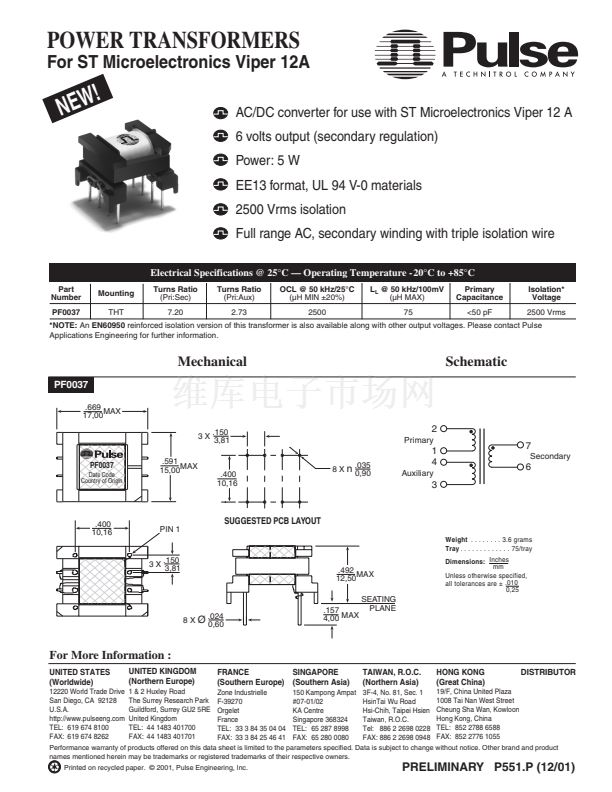

POWER TRANSFORMERS
For ST Microelectronics Viper 12A
W!
NE
AC/DC converter for use with ST Microelectronics Viper 12 A
6 volts output (secondary regulation)
Power: 5 W
EE13 format, UL 94 V-0 materials
2500 Vrms isolation
Full range AC, secondary winding with triple isolation wire
Electrical Specifications @ 25擄C 鈥?Operating Temperature - 20擄C to +85擄C
Part
Number
PF0037
Mounting
THT
Turns Ratio
(Pri:Sec)
7.20
Turns Ratio
(Pri:Aux)
2.73
OCL @ 50 kHz/25擄C
(碌H MIN 鹵20%)
2500
L
L
@ 50 kHz/100mV
(碌H MAX)
75
Primary
Capacitance
<50 pF
Isolation*
Voltage
2500 Vrms
*NOTE:
An
EN60950
reinforced isolation version of this transformer is also available along with other output voltages. Please contact Pulse
Applications Engineering for further information.
Mechanical
PF0037
.669
17,00MAX
.150
3 X 3,81
Schematic
Primary
.035
8 X
n
0,90
2
7
6
Secondary
Date Code
Country of Origin
PF0037
.591
15,00MAX
.400
10,16
Auxiliary
1
4
3
.400
10,16
PIN 1
.150
3 X 3,81
SUGGESTED PCB LAYOUT
Weight
. . . . . . . . 3.6 grams
Tray
. . . . . . . . . . . . . 75/tray
.492
12,50MAX
SEATING
PLANE
Dimensions:
Inches
mm
Unless otherwise specified,
all tolerances are 鹵 .010
0,25
.024
8 X
脴
0,60
.157
4,00 MAX
