PESD5V0V4UG Datasheet

  • PESD5V0V4UG

  • Very low capacitance quadruple ESD protection diode arrays i...

  • 11頁

  • PHILIPS

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

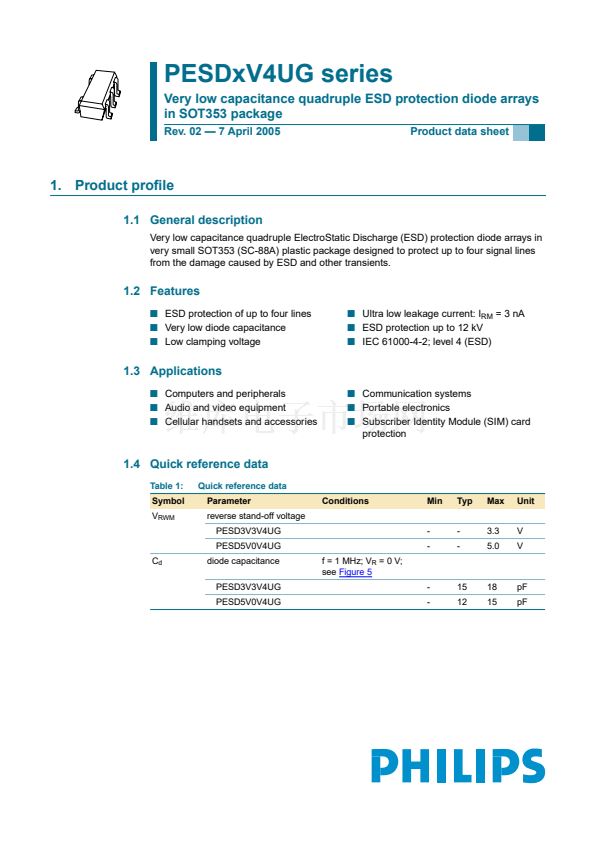

PESDxV4UG series
Very low capacitance quadruple ESD protection diode arrays
in SOT353 package
Rev. 02 鈥?7 April 2005
Product data sheet
1. Product pro鏗乴e
1.1 General description
Very low capacitance quadruple ElectroStatic Discharge (ESD) protection diode arrays in
very small SOT353 (SC-88A) plastic package designed to protect up to four signal lines
from the damage caused by ESD and other transients.
1.2 Features
s
ESD protection of up to four lines
s
Very low diode capacitance
s
Low clamping voltage
s
Ultra low leakage current: I
RM
= 3 nA
s
ESD protection up to 12 kV
s
IEC 61000-4-2; level 4 (ESD)
1.3 Applications
s
Computers and peripherals
s
Audio and video equipment
s
Cellular handsets and accessories
s
Communication systems
s
Portable electronics
s
Subscriber Identity Module (SIM) card
protection
1.4 Quick reference data
Table 1:
Symbol
V
RWM
Quick reference data
Parameter
reverse stand-off voltage
PESD3V3V4UG
PESD5V0V4UG
C
d
diode capacitance
PESD3V3V4UG
PESD5V0V4UG
f = 1 MHz; V
R
= 0 V;
see

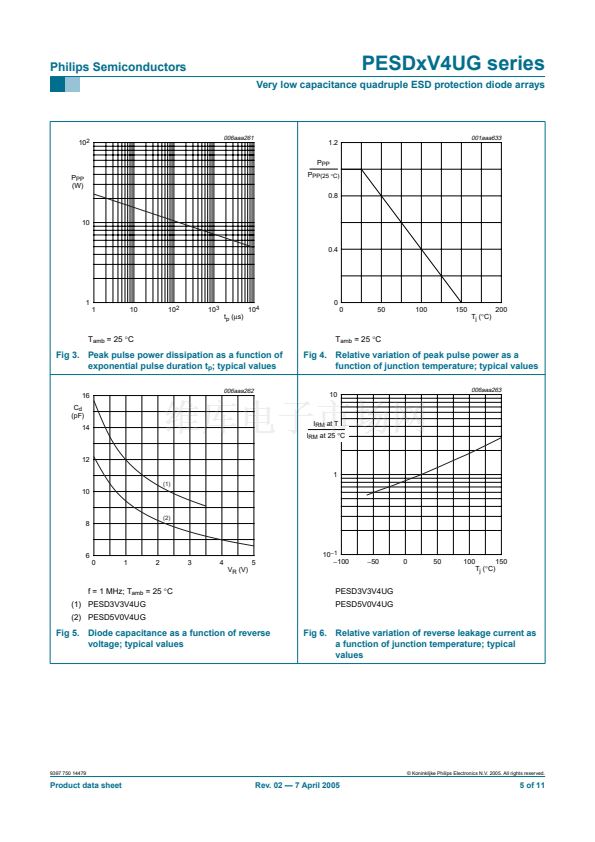

Figure 5
-
-
15
12
18
15
pF
pF
-
-
-
-
3.3
5.0
V
V
Conditions
Min
Typ
Max
Unit
