PENTIUM Datasheet

  • PENTIUM

  • PENTIUM - PROCESSORS 75 - 200MHZ

  • 70頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

E
Max. Operating Frequency
iCOMP Index 2.0 Rating
廬
PENTIUM PROCESSOR
75
MHz
67
90
MHz
81
100
MHz
90
廬
廬
120
MHz
100
133
MHz
111
150
MHz
114
166
MHz
127
200
MHz
142
Note: Contact Intel Corporation for more information about iCOMP Index 2.0 ratings.
n
n
n
n
n
n
n
n
n
n
n
Compatible with Large Software Base
錚?/div>
MS-DOS*, Windows*, OS/2*, UNIX*
32-Bit CPU with 64-Bit Data Bus
Superscalar Architecture
錚?/div>
Two Pipelined Integer Units Are Capable
of 2 Instructions/Clock
錚?/div>
Pipe-lined Floating Point Unit
Separate Code and Data Caches
錚?/div>
8-Kbyte Code, 8-Kbyte Write Back Data
錚?/div>
MESI Cache Protocol
Advanced Design Features
錚?/div>
Branch Prediction
錚?/div>
Virtual Mode Extensions
3.3V BiCMOS Silicon Technology
4-Mbyte Pages for Increased TLB Hit Rate
IEEE 1149.1 Boundary Scan
Dual Processing Configuration
Functional Redundancy Checking Support
Internal Error Detection Features
n
n
n
n
n
Multi-Processor Support
錚?/div>
Multiprocessor Instructions
錚?/div>
Support for Second Level Cache
On-Chip Local APIC Controller
錚?/div>
MP Interrupt Management
錚?/div>
8259 Compatible
Upgradable with a Pentium OverDrive
Processor
Power Management Features
錚?/div>
System Management Mode
錚?/div>
Clock Control
Fractional Bus Operation
錚?/div>
200-MHz Core/66-MHz Bus
錚?/div>
166-MHz Core/66-MHz Bus
錚?/div>
150-MHz Core/60-MHz Bus
錚?/div>
133-MHz Core/66-MHz Bus
錚?/div>
120-MHz Core/60-MHz Bus
錚?/div>
100-MHz Core/66-MHz Bus
錚?/div>
100-MHz Core/50-MHz Bus
錚?/div>
90-MHz Core/60-MHz Bus
錚?/div>
75-MHz Core/50-MHz Bus
廬
廬

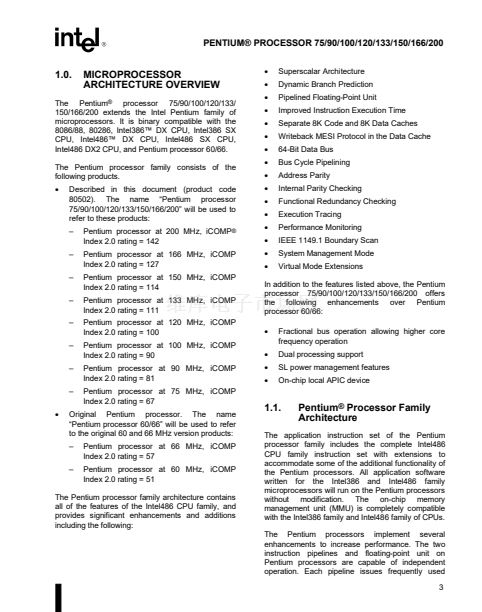

The Pentium
廬
processor 75/90/100/120/133/150/166/200 extends the Pentium processor family, providing
performance needed for mainstream desktop applications as well as for workstations and servers. The Pentium
processor is compatible with the entire installed base of applications for DOS*, Windows*, OS/2*, and UNIX*.
The Pentium processor 75/90/100/120/133/150/166/200 superscalar architecture can execute two instructions
per clock cycle. Branch prediction and separate caches also increase performance. The pipelined floating point
unit delivers workstation level performance. Separate code and data caches reduce cache conflicts while
remaining software transparent. The Pentium processor 75/90/100/120/133/150/166/200 has 3.3 million
transistors and is built on Intel鈥檚 advanced 3.3V BiCMOS silicon technology. The Pentium processor
75/90/100/120/133/150/166/200 has on-chip dual processing support, a local multiprocessor interrupt controller,
and SL power management features. The Pentium processor may contain design defects or errors known as
errata which may cause the product to deviate from published specifications. Current characterized errata are
available upon request.
June 1997
Order Number 241997-010
