SDSL One Chip Rate Adaptive
Transceiver with Embedded
Start-up
The one chip transceiver IC SOCRATES
TM
inte-
grates all functions of a SDSL transceiver accord-
ing to the emerging ETSI and ITU standards. It can
operate at all data rates from 144 kBit/s up to
2.3 MBit/s in 8 kBit/s granularity. Its small package
and low power consumption make it especially
useful in linecard and remote feed applications.
The integrated microcontroller and HDLC control-
ler make it easy to use in a variety of applications.
The built-in 2B1Q mode keeps it interoperable
with HDSL solutions. All features required for
operation in WLL/RITL systems are available. The
device is also interoperable with the MuBIC MDSL
chip. Infineon also supplies a wide range of other
telecom ICs to offer complete system solutions
for different applications.
R O D U C T
B
R I E F

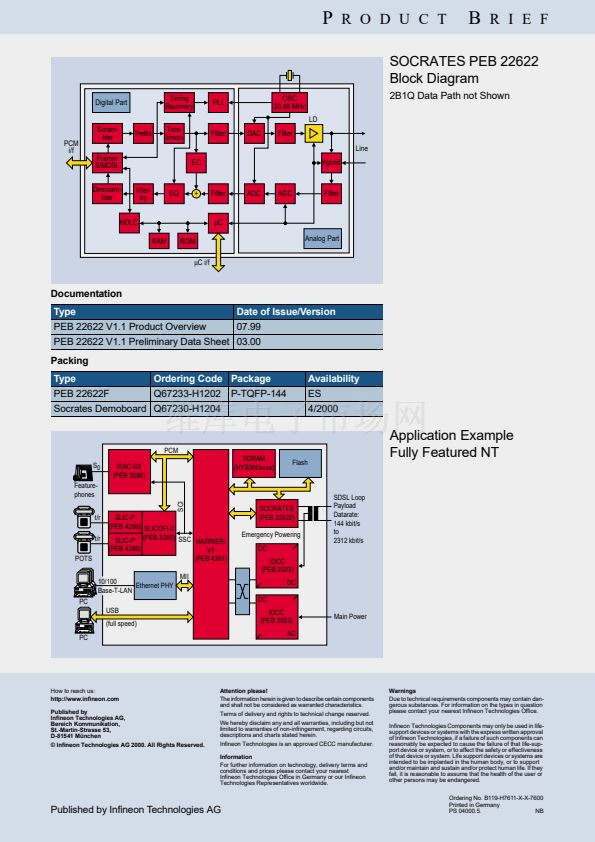

Development and Support Tools
SMART 2000 Evaluation
package
S O C R AT E S
P E B 2 2 6 2 2
N e v e r
s t o p
t h i n k i n g .
High speed subscriber access
N-channel DAML systems
Extended range full and
fractional T1/E1
Internet connections
ISDN H0 transport
ISDN Primary rate access
replacement
Remote LAN Access (Home
office)
Videoconferencing
Cellular base stations
RITL and WLL systems
SDH and SONET termination
Leased line services
Frame Relay services
PBX trunk lines
Single chip SDSL transceiver
Plastic TQFP-144 package
Lowest power consumption
TCPAM linecode with 2, 3 or 4
Bits/symbol
Synchronous or plesiochronous
operation
8-Bit 碌C parallel interface of
Infineon/Intel and Motorola
multiplexed/demuliplexed type
Transparent transmission or
built-in Framer with MuBIC or
SDSL framing
Embedded 碌C also usable for
board control
Two integrated HDLC control-
lers for payload and EOC
Warmstart capability
G. handshake start-up
Potential Applications
Features
Central office (COT) and
remote (RT) operation (master/
slave)
2 MBit/s and 4 MBit/s TDM
interface in RT mode
2 MBit/s to 10 MBit/s TDM inter-
face in COT mode
1544 kBits/s TDM interface (T1)
DECT base station synchroni-
zation
Delay measurement
2B1Q mode
Single 2.0 V, 3.3 V and +5 V
power supply
Inputs and Outputs TTL level
Capable of transmitting on ETSI
and ANSI HDSL testloops
JTAG boundary scan
