OKI Semiconductor
ML9352
128-Channel Organic EL Driver with Built-in RAM
PEDL9352-01
Issue Date:Dec. 27, 2002
Preliminary
GENERAL DESCRIPTION
The ML9352 is an LSI for dot matrix graphic organic EL devices carrying out bit map display. This LSI can drive
a dot matrix graphic organic EL display panel under the control of microcomputer. Since all the functions
necessary for driving a bit map type organic EL device are incorporated in a single chip, using the ML9352 makes
it possible to realize a bit map type dot matrix graphic organic EL display system with only a few chips.
Since the bit map method in which one bit of display RAM data turns ON or OFF one dot in the display panel, it is
possible to carry out displays with a high degree of freedom such as Chinese character displays, etc. With one chip,
it is possible to construct a graphic display system with a maximum of 128
脳
32 dots.
Since the organic EL drive voltage of the ML9352 can range as high as 30 V, the ML9352 is suited to drive
on-vehicle panels that require high luminance and panels used in audio equipment.
FEATURES
鈥?/div>
Direct display of the RAM data using the bit map method
Display RAM data 鈥?鈥?... Dot is displayed
Display RAM data 鈥?鈥?... Dot is not displayed
鈥?/div>
Display RAM capacity
ML9352: 32
脳
128 = 4096 dots
鈥?/div>
Organic EL Drive circuits
33 cathode outputs, 128 anode outputs
鈥?/div>
Microcomputer interface: Can select an 8-bit parallel or serial interface
鈥?/div>
Built-in oscillator circuit (Internal oscillator circuit/external clock input selectable)
鈥?/div>
A variety of commands
Read/write of display data, display ON/OFF, normal/reverse display, all dots ON, write address setting, scroll
start line setting, fixed display line number setting, anode pulse width adjustment, etc.
鈥?/div>
Power supply voltage
Logic power supply: V
DDA
= V
DDL
= 2.7 to 5.5 V
Organic EL Drive voltage: V
DISPS
= 18 to 30 V, V
DISPC
= 18 to 30 V
鈥?/div>
Package: Bare chip

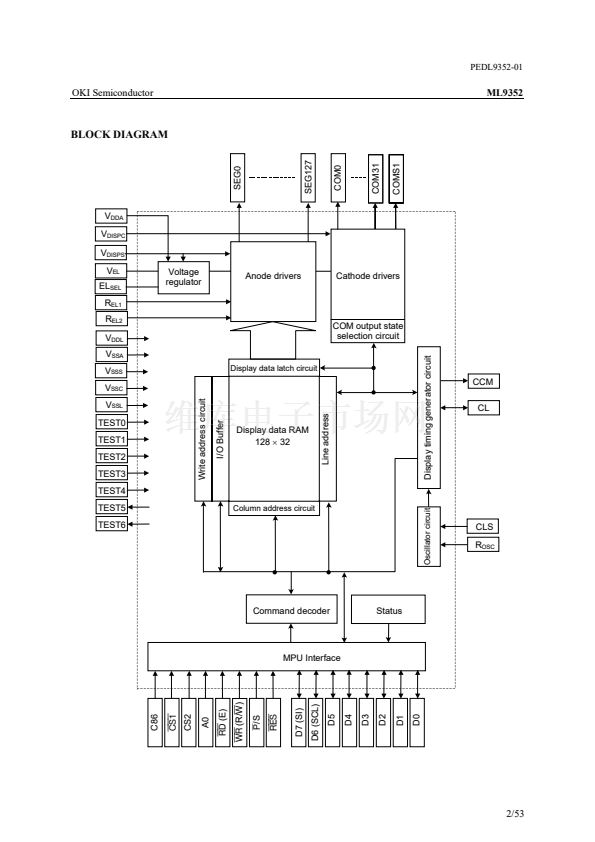

1/53
