T3/DS3/E3/STS-1

TRANSFORMERS

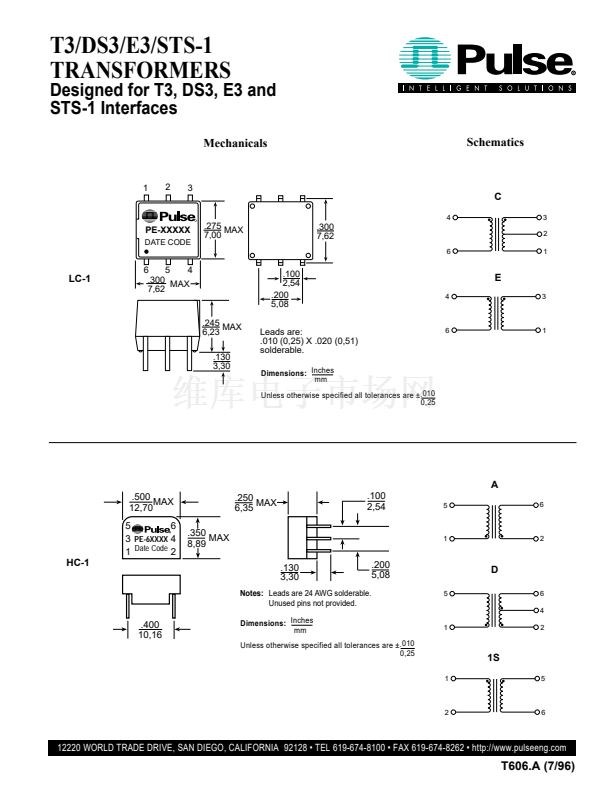

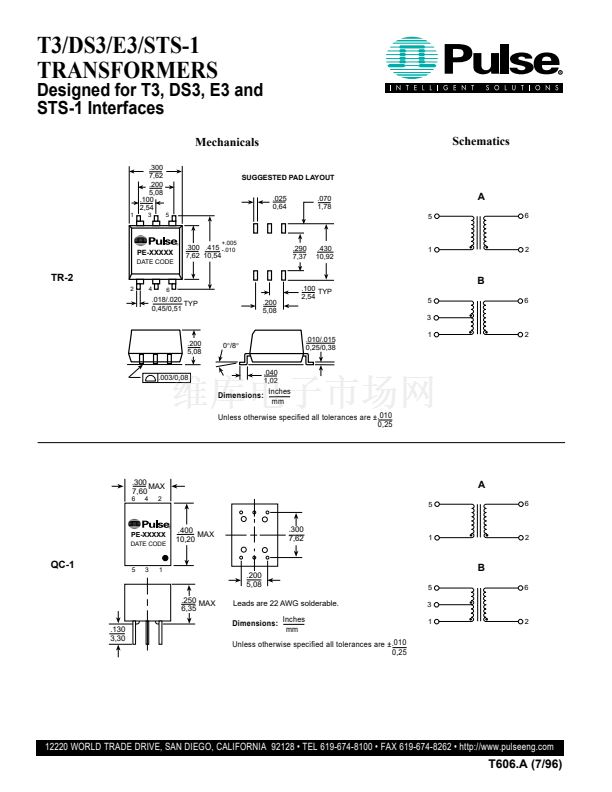

Designed for T3, DS3, E3 and

STS-1 Interfaces

Return loss meets requirements

of G.703

Fast rise time compatible with

standards

Through hole and surface mount

packages available

Models with 1500 Vrms isolation and

3000 Vrms reinforced insulation per

BABT EN41003/EN60950

Electrical Specifications @ 25擄C 鈥?Operating Temperature 0擄C to 70擄C

Part Number

PE-65661

PE-65662

PE-65663

PE-65664

PE-65779

PE-65856

PE-65966

PE-65967

PE-65968

PE-65969

PE-68629

PE-68630

Turns

Ratio

(鹵2%)

1:2CT

1:1

1:2CT

1:4CT

1:1.73CT

1:1

1:2CT

1:1

1:2CT

OCL

Primary

(碌H MIN)

35

45

40

35

150

50

40

19

40

19

OCL

at -40擄C

(碌H MIN)

20

30

20

鈥?/div>

L

(碌H MAX)

.12

.30

.10

.06

.10

.06

C

W/W

(pF MAX)

10

13

10

15

12

10

5

10

Bandwidth

75

鈩?/div>

System

(MHz TYP)

鈥?/div>

.060-300

.200-340

.250-500

鈥?/div>

Isolation

Voltage

(Vrms MIN)

1500

3000

4

3000

4

Package/

Schematic

TR-2/B SMT

TR-2/A SMT

QC-1/A THT

QC-1/B THT

LC-1/C THT

LC-1/E THT

LS-1/E SMT

LS-1/C SMT

LC-1/C THT

HC-1/A THT

HC-1/D THT

Primary

Pins

2-6

4-6

1-5

Electrical Specifications @ 25擄C

Part Number

PE-64934

Turns Ratio

(Pri:Sec 鹵5%)

1:1

OCL @ 25擄C

(mH MIN)

1.20

C

W

/

W

(pF MAX)

25

L

(碌H MAX)

0.50

DCR Pri

(鈩?MAX)

0.70

DCR Sec

(鈩?MAX)

0.70

Isolation Voltage

(Vrms MIN)

1500

Package/

Schematic

HC-1/1S

Primary

Pins

1-2

Packaging Information

Package

LS-1

TR-2

LC-1

HC-1

QC-1

Type

SMT

THT

Part Weight

0.6 grams

1.2 grams

0.8 grams

Parts/Tube

70

65

60

Parts/Reel

600

500

鈥?/div>

Reel Diameter

13 inches

鈥?/div>

Tape Width

24 mm

鈥?/div>

Pitch

16 mm

鈥?/div>

12220 WORLD TRADE DRIVE, SAN DIEGO, CALIFORNIA 92128 鈥?TEL 619-674-8100 鈥?FAX 619-674-8262 鈥?http://www.pulseeng.com

T606.A (7/96)
