PD60-0015-06S Datasheet

  • PD60-0015-06S

  • High Power， 6 Channel Transmit Combiner for AMPS/GSM/IS-95

  • 1頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

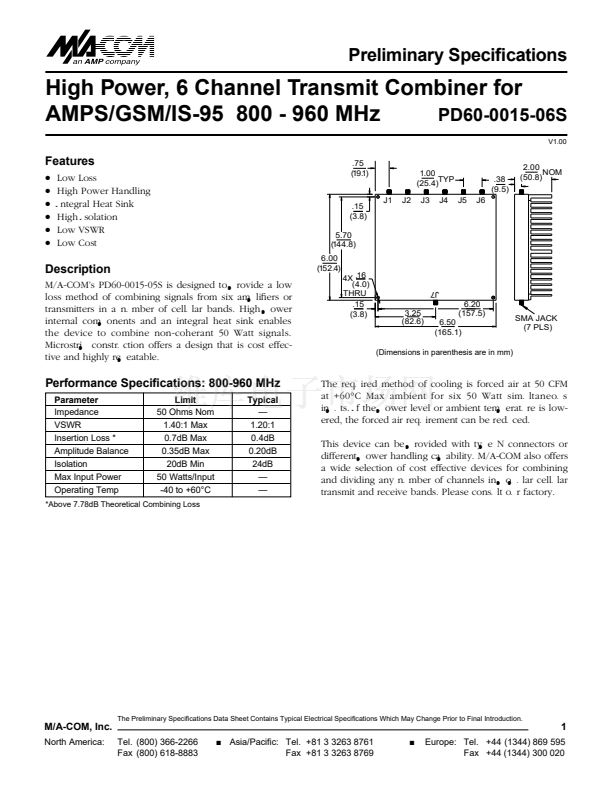

Preliminary Speci鏗乧ations
High Power, 6 Channel Transmit Combiner for
AMPS/GSM/IS-95 800 - 960 MHz
PD60-0015-06S
V1.00
Features
q
q
q
q
q
q
Low Loss
High Power Handling
Integral Heat Sink
High Isolation
Low VSWR
Low Cost
.75
(19. )
1
1.00
(25.4)TYP
J1
J2
J3
J4
J5
J6
.38
(9.5)
2.00
NOM
(50.8)
.15
(3.8)
5.70
(144.8)
6.00
(152.4)
Description
M/A-COM鈥檚 PD60-0015-05S is designed to provide a low
loss method of combining signals from six ampli鏗乪rs or
transmitters in a number of cellular bands. High power
internal components and an integral heat sink enables
the device to combine non-coherant 50 Watt signals.
Microstrip construction offers a design that is cost effec-
tive and highly repeatable.
3.25
(82.6)
(Dimensions in parenthesis are in mm)
Performance Speci鏗乧ations: 800-960 MHz
Parameter
Impedance
VSWR
Insertion Loss *
Amplitude Balance
Isolation
Max Input Power
Operating Temp
Limit
50 Ohms Nom
1.40:1 Max
0.7dB Max
0.35dB Max
20dB Min
50 Watts/Input
-40 to +60擄C
Typical
鈥?/div>
1.20:1
0.4dB
0.20dB
24dB
鈥?/div>
鈥?/div>
The required method of cooling is forced air at 50 CFM
at +60擄C Max ambient for six 50 Watt simultaneous
inputs. If the power level or ambient temperature is low-
ered, the forced air requirement can be reduced.
This device can be provided with type N connectors or
different power handling capability. M/A-COM also offers
a wide selection of cost effective devices for combining
and dividing any number of channels in popular cellular
transmit and receive bands. Please consult our factory.
*Above 7.78dB Theoretical Combining Loss
The Preliminary Speci鏗乧ations Data Sheet Contains Typical Electrical Speci鏗乧ations Which May Change Prior to Final Introduction.
M/A-COM, Inc.
North America:
Tel. (800) 366-2266
Fax (800) 618-8883
s
Asia/Paci鏗乧: Tel. +81 3 3263 8761
Fax +81 3 3263 8769
s
Europe: Tel. +44 (1344) 869 595
Fax +44 (1344) 300 020
J7
6.20
(157.5)
6.50
(165.1)
SMA JACK
(7 PLS)
4X .16
(4.0)
THRU
.15
(3.8)
1
