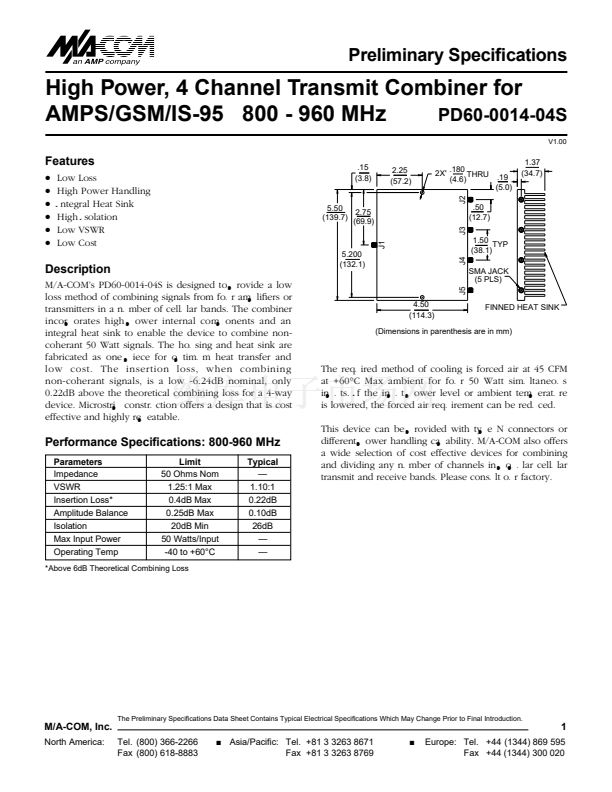

Preliminary Speci鏗乧ations
High Power, 4 Channel Transmit Combiner for
AMPS/GSM/IS-95 800 - 960 MHz
PD60-0014-04S
V1.00
Features
q
q
q
q
q
q
Description
M/A-COM鈥檚 PD60-0014-04S is designed to provide a low
loss method of combining signals from four ampli鏗乪rs or
transmitters in a number of cellular bands. The combiner
incorporates high power internal components and an
integral heat sink to enable the device to combine non-
coherant 50 Watt signals. The housing and heat sink are
fabricated as one piece for optimum heat transfer and
low cost. The insertion loss, when combining
non-coherant signals, is a low -6.24dB nominal, only
0.22dB above the theoretical combining loss for a 4-way
device. Microstrip construction offers a design that is cost
effective and highly repeatable.
5.200
(132.1)
J1
Low Loss
High Power Handling
Integral Heat Sink
High Isolation
Low VSWR
Low Cost
.15
(3.8)
2.25
(57.2)
2X' .180 THRU
(4.6)
J2
.19
(5.0)
1.37
(34.7)
5.50
2.75
(139.7) (69.9)
J3
.50
(12.7)
1.50
TYP
(38.1)
J4
SMA JACK
(5 PLS)
4.50
(114.3)
J5
FINNED HEAT SINK
(Dimensions in parenthesis are in mm)
The required method of cooling is forced air at 45 CFM
at +60擄C Max ambient for four 50 Watt simultaneous
inputs. If the input power level or ambient temperature
is lowered, the forced air requirement can be reduced.
This device can be provided with type N connectors or
different power handling capability. M/A-COM also offers
a wide selection of cost effective devices for combining
and dividing any number of channels in popular cellular
transmit and receive bands. Please consult our factory.
Performance Speci鏗乧ations: 800-960 MHz
Parameters
Impedance
VSWR
Insertion Loss*
Amplitude Balance
Isolation
Max Input Power
Operating Temp
Limit
50 Ohms Nom
1.25:1 Max
0.4dB Max
0.25dB Max
20dB Min
50 Watts/Input
-40 to +60擄C
Typical
鈥?/div>
1.10:1
0.22dB
0.10dB
26dB
鈥?/div>
鈥?/div>
*Above 6dB Theoretical Combining Loss
The Preliminary Speci鏗乧ations Data Sheet Contains Typical Electrical Speci鏗乧ations Which May Change Prior to Final Introduction.
