PD57006-01 Datasheet

  • PD57006-01

  • RF POWER TRANSISTORS THE LDMOST PLASTIC FAMILY

  • 4頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

PD57006-01
RF POWER TRANSISTORS
The LdmoST
Plastic FAMILY
TARGET DATA
N-CHANNEL ENHANCEMENT-MODE LATERAL
MOSFETs
鈥?/div>
EXCELLENT THERMAL STABILITY
鈥?/div>
COMMON SOURCE CONFIGURATION
鈥?/div>
P
OUT
= 6 W with 15 dB gain @ 945 MHz / 28V
鈥?/div>

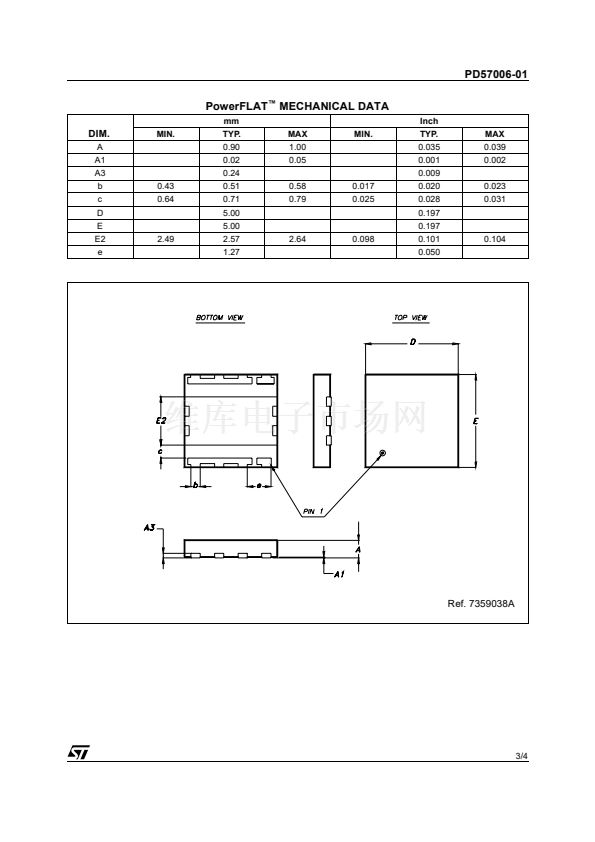

NEW LEADLESS PLASTIC PACKAGE
PowerFLAT
鈩?/div>
(5x5)
DESCRIPTION
The PD57006-01 is a common source N-Channel,
enhancement-mode lateral Field-Effect RF power
transistor. It is designed for high gain, broad band
commercial and industrial applications. It operates
at 28 V in common source mode at frequencies of
up to 1 GHz. PD57006-01 boasts the excellent
gain, linearity and reliability of ST鈥檚 latest LDMOS
technology mounted in the innovative leadless
SMD plastic package, PowerFLAT鈩?
It is ideal for digital cellular BTS applications
requiring high linearity.
ORDER CODE
PD57006-01
BRANDING
PD57006-01
ABSOLUTE MAXIMUM RATINGS (T
CASE
= 2\5
擄
C)
Symbol
V
(BR)DSS
V
GS
I
D
P
DISS
Tj
T
STG
Drain-Source Voltage
Gate-Source Voltage
Drain Current
Power Dissipation (@ Tc = 70擄C)
Max. Operating Junction Temperature
Storage Temperature
Parameter
Value
65
鹵
20
1
TBD
150
-65 to +150
Unit
V
V
A
W
擄C
擄C
THERMAL DATA
R
th(j-c)
Junction -Case Thermal Resistance
TBD
擄C/W
February, 21 2002
1/4
