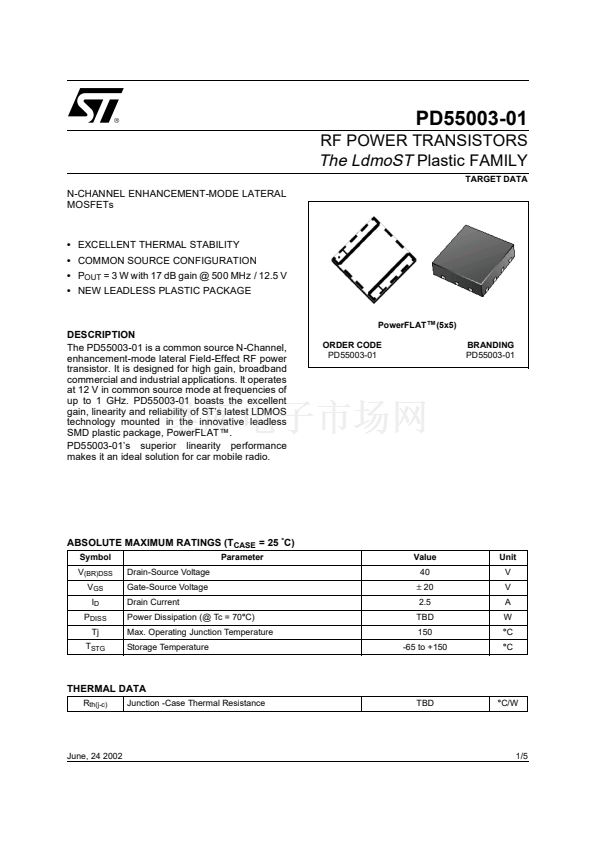

PD55003-01
RF POWER TRANSISTORS
The LdmoST
Plastic FAMILY
TARGET DATA
N-CHANNEL ENHANCEMENT-MODE LATERAL
MOSFETs
鈥?/div>
EXCELLENT THERMAL STABILITY
鈥?/div>
COMMON SOURCE CONFIGURATION
鈥?/div>
P
OUT
= 3 W with 17 dB gain @ 500 MHz / 12.5 V
鈥?/div>
NEW LEADLESS PLASTIC PACKAGE
PowerFLAT
鈩?/div>
(5x5)
DESCRIPTION
The PD55003-01 is a common source N-Channel,
enhancement-mode lateral Field-Effect RF power
transistor. It is designed for high gain, broadband
commercial and industrial applications. It operates
at 12 V in common source mode at frequencies of
up to 1 GHz. PD55003-01 boasts the excellent
gain, linearity and reliability of ST鈥檚 latest LDMOS
technology mounted in the innovative leadless
SMD plastic package, PowerFLAT鈩?
PD55003-01鈥檚 superior linearity performance
makes it an ideal solution for car mobile radio.
ORDER CODE
PD55003-01
BRANDING
PD55003-01
ABSOLUTE MAXIMUM RATINGS (T
CASE
= 25
擄
C)
Symbol
V
(BR)DSS
V
GS
I
D
P
DISS
Tj
T
STG
Drain-Source Voltage
Gate-Source Voltage
Drain Current
Power Dissipation (@ Tc = 70擄C)
Max. Operating Junction Temperature
Storage Temperature
Parameter
Value
40
鹵
20
2.5
TBD
150
-65 to +150
Unit
V
V
A
W
擄C
擄C
THERMAL DATA
R
th(j-c)
Junction -Case Thermal Resistance
TBD
擄C/W
June, 24 2002
1/5
