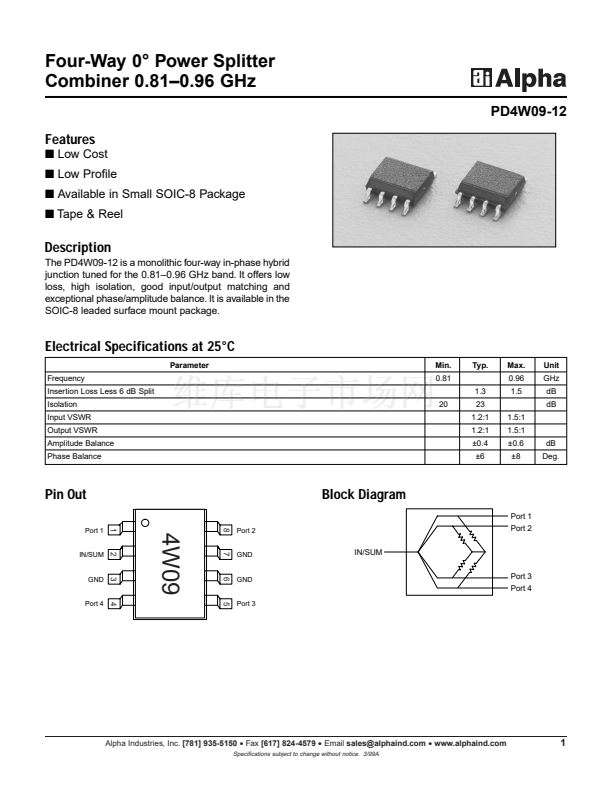

Four-Way 0擄 Power Splitter

Combiner 0.81鈥?.96 GHz

PD4W09-12

Features

Low Cost

Low Profile

Available in Small SOIC-8 Package

Tape & Reel

Description

The PD4W09-12 is a monolithic four-way in-phase hybrid

junction tuned for the 0.81鈥?.96 GHz band. It offers low

loss, high isolation, good input/output matching and

exceptional phase/amplitude balance. It is available in the

SOIC-8 leaded surface mount package.

Electrical Specifications at 25擄C

Parameter

Frequency

Insertion Loss Less 6 dB Split

Isolation

Input VSWR

Output VSWR

Amplitude Balance

Phase Balance

Min.

0.81

1.3

1.2:1

鹵0.4

鹵6

1.5:1

鹵0.6

鹵8

Deg.

Typ.

Max.

0.96

1.5

Unit

GHz

Pin Out

Port 1

Port 2

Block Diagram

Port 1

Port 2

IN/SUM

Port 3

Port 4

Port 3

4W09

IN/SUM

GND

Port 4

Alpha Industries, Inc.

[781] 935-5150

鈥?/div>

Fax

[617] 824-4579

鈥?/div>

sales@alphaind.com

鈥?/div>

www.alphaind.com

Specifications subject to change without notice. 3/99A
