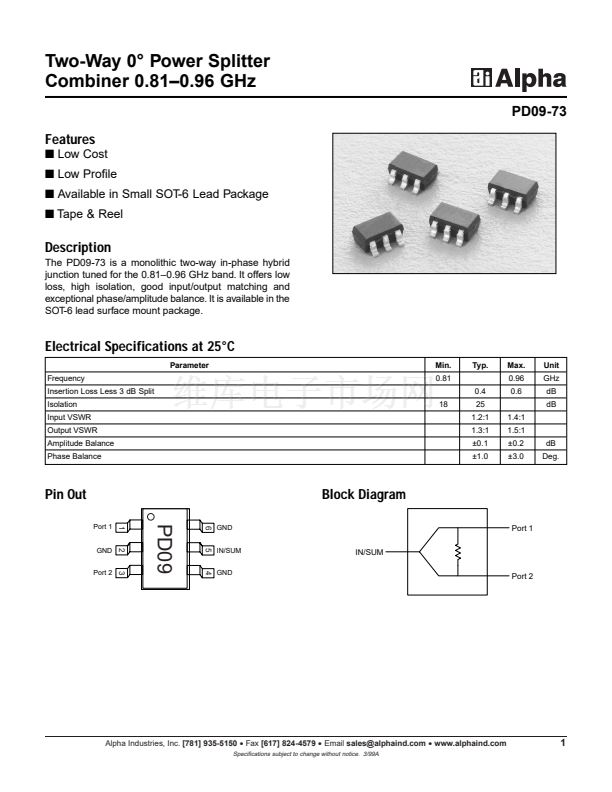

Two-Way 0擄 Power Splitter

Combiner 0.81鈥?.96 GHz

PD09-73

Features

Low Cost

Low Profile

Available in Small SOT-6 Lead Package

Tape & Reel

Description

The PD09-73 is a monolithic two-way in-phase hybrid

junction tuned for the 0.81鈥?.96 GHz band. It offers low

loss, high isolation, good input/output matching and

exceptional phase/amplitude balance. It is available in the

SOT-6 lead surface mount package.

Electrical Specifications at 25擄C

Parameter

Frequency

Insertion Loss Less 3 dB Split

Isolation

Input VSWR

Output VSWR

Amplitude Balance

Phase Balance

Min.

0.81

0.4

1.2:1

1.3:1

鹵0.1

鹵1.0

1.4:1

1.5:1

鹵0.2

鹵3.0

Deg.

Typ.

Max.

0.96

0.6

Unit

GHz

Pin Out

Block Diagram

PD09

Port 1

GND

Port 2

GND

IN/SUM

GND

Port 1

IN/SUM

Port 2

Alpha Industries, Inc.

[781] 935-5150

鈥?/div>

Fax

[617] 824-4579

鈥?/div>

sales@alphaind.com

鈥?/div>

www.alphaind.com

Specifications subject to change without notice. 3/99A
