PCT789T-A F

EATURES

鈥?3.3 V PCI HSP Controller

鈥?56K ITU upgradable/data

14.4K Fax/ADPCM Voice/V.80

PRELIMINARY

PCT1789W Chip Set

The Leader in Host Signal Processing (HSP) Modem Technology

PCI HSP56 World MicroModem

Data/Fax/Voice Modem Solution

鈥?support power-down mode for CODEC and/or

core logic

PCT789T-A F

UNCTIONAL

D

ESCRIPTION

The PCT789T-A device provides the interface and

buffering between PCI bus and CODEC serial interface,

input/output port, interrupt control, and auto power-down

management. This device works with CODEC, DAA,

and PC-TEL鈥檚 advanced host signal processing

software to perform data/fax/voice functions. The figure

below shows the hardware block diagram of an internal

modem using the PCT789T-A device.

PCT789T-A is a single-chip modem controller which

supports PC-TEL Host Signal Processing 56Kbps

modem solution. The PCT789T-A provides the most

compact, power-saving, and cost-effective solution for

56Kbps internal modems. It can also be used with other

hardware such as audio chip and video-conferencing

chip sets for combo board applications.

鈥?Low power consumption (35 mW operating @ 3.3 V)

and auto power management

鈥?Supports Win 95, Win 98, Win NT 4.0 and NT 5.0

operating systems

鈥?Support for D3 cold, VAUX, Wake-on-Ring

鈥?Minimum system configuration:

Pentium MMX 166 MHz +, AMD K6 MMX 200 MHz +,

or Cyrix 6x86MX PR200 +; 256K Cache; 16 MB RAM

鈥?HSP speakerphone via software upgrade with full-

duplex sound chip

鈥?V.80 for Point to Point H.324 video conferencing

PCT789T-A H

ARDWARE

F

EATURES

鈥?PCI interface

鈥?comply with PCI V2.2 specification

鈥?comply with PCI Bus Power Management

Interface Specification V1.1

鈥?Programmable circular buffer

鈥?for effectively supporting different sampling rates

and protocols

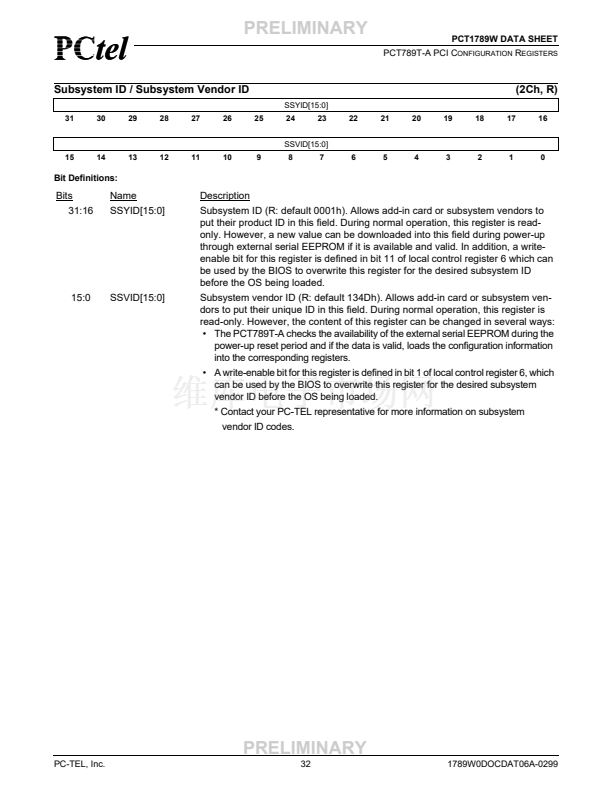

鈥?EEPROM required for storing user defined subsystem

ID, subsystem vendor ID, anddevice ID

鈥?Low power consumption

鈥?power supply range for digital circuit: 3.3 V 鹵 5%.

鈥?the lowest power consumptive solution in the mo-

dem industry today

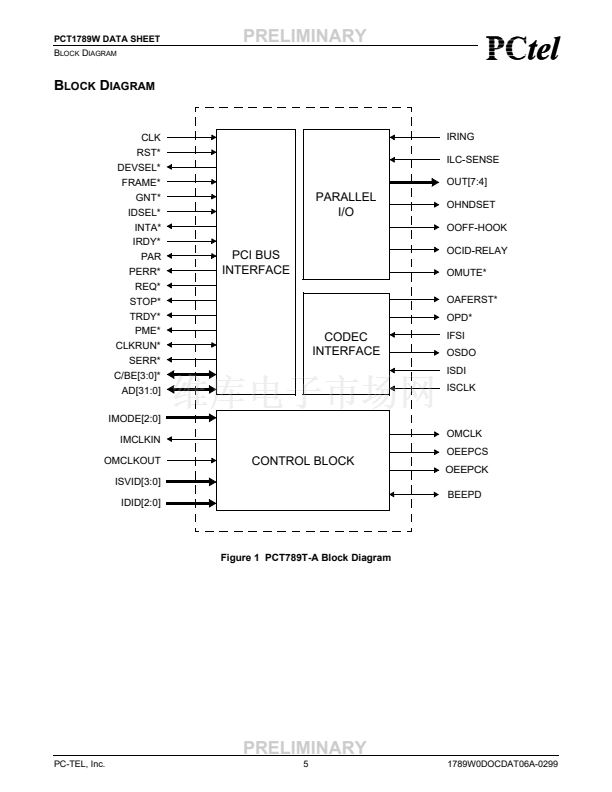

PCT789T-A

PCT1789W F

UNCTIONAL

B

LOCK

D

IAGRAM

RING DETECTION

LINE SENSOR

PC BUS

PCT789T-A

CALLER ID CONTROL

PCT303DW

PSTN

EEPROM

OFF HOOK CONTROL

PRELIMINARY

1789W0DOCDAT06A-0299

1

PC-TEL, Inc.
