The Leader in Host Signal Processing (HSP) Modem Technology
PCT2303N for AMR & MDC
Motherboard integration of the modem subsystem has been problematic to date, in large part due to FCC and
other international telecom certification processes that delay the introduction of a motherboard when the
modem鈥檚 analog I/O (codec and DAA) circuitry was physically soldered to the board. Resolving homologation/
certification issues for OEMs is one of the key objectives of the AMR/MDC specification.
With an open, Industry-standard riser solution, a system manufacturer is free to implement audio and/or modem
functions on the motherboard at a lower bill of materials (BOM) cost than would be possible by deploying these
functions in either industry-standard expansion slots or in a proprietary method.
PC-TEL has streamlined the traditional modem into the Host Signal Processing (HSP) solution. Operating with
the Pentium class processors, HSP becomes part of the host computer鈥檚 system software. It requires less power
to operate and less physical space than standard modem solutions. PC-TEL鈥檚 HSP modem is an easily
integrated, cost-effective communications solution that is flexible enough to carry you into the future.

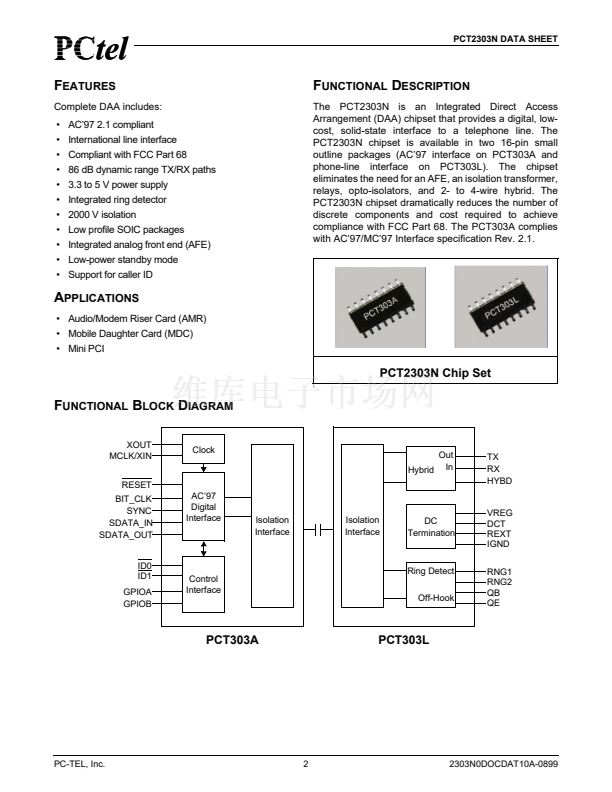

The PCT2303N chip set is an integrated direct access arrangement (DAA) and CODEC that provides a
programmable line interface to meet requirements. ThePCT 2303N chip set is available in two 16-pin small
outline packages (AC鈥?7 interface on PCT303A and phone-line interface on PCT303L). The chip set eliminates
the need for an AFE, an isolation transformer, relays, opto-isolators, and 2- to 4-wire hybrid. The PCT2303N chip
set dramatically reduces the number of discrete components and cost required to achieve compliance with
regulatory requirements. The PCT303A complies with AC鈥?7 Interface specification Rev. 2.1.
Codec/DAA Features
S
S
S
S
S
S
S
S
S
S
S
AC鈥?7 Rev 2.1 compliant
86dB dynamic range TX/RX paths
2-4-wire hybrid
Integrated ring detector
High voltage isolation of 2000V
Support for 鈥淐aller ID鈥?/div>
Compliant with FCC Part15B/Part
68
Low power standby
Low profile SOIC package
10x3x1.55mm
Low power consumption
10mA @ 3.3V operation
1mA @ 3.3V power down
Integrated modem codec
Standard Features
Data
S
Integrated DAA/Codec Chip Set
AC 鈥?7 Digital Controller
AC 鈥?7 Audio Codec
RJ11
Integrated Chipset DAA/Codec
RJ11
S
S
ITU-T V.90, V.34, V.32bis, V.32,
V.22bis, V.22, V.21, V.23,
Bell 212A, Bell 103
Data Compression
ITU-T V.42bis
MNP Class 5
Error Correction
ITU-T V.42 LAPM
MNP 2-4
ITU-T V. 17, V.29, V.27ter, V.21
Channel 2
Group 3
EIA Class I
Windows 95/98, NT 4.0,
Windows 2000, and Linux
27*45mm
AC鈥?7 Audio Codec
AMR46-pin Connector
AC鈥?7 Digital
Controller
Modem Daughter Card
MDC 30-pin Connector
Fax
S
Mobile Daughter Card
Modem Riser Card
68mm
Operating Systems
S
PCT2303N Chip
MDC
I/F
30-Pin
60mm
PCT2303N Chip
Set
Intel AM R I/F
2303N0DOCDAT10A-0899
1
PC-TEL, Inc.
