PCM1737E/2K Datasheet

  • PCM1737E/2K

  • D/A CONVERTER

  • 28頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

廬
PCM
173
7
PCM1737
For most current data sheet and other product
information, visit www.burr-brown.com
24-Bit, 192kHz Sampling
Enhanced Multi-Level, Delta-Sigma, Audio
DIGITAL-TO-ANALOG CONVERTER
TM
FEATURES
q
24-BIT RESOLUTION
q
ANALOG PERFORMANCE (V
CC
= +5V):
Dynamic Range: 106dB typ
SNR: 106dB typ
THD+N: 0.0015% typ
Full-Scale Output: 3.1Vp-p typ
q
4x/8x OVERSAMPLING DIGITAL FILTER:
Passband: 0.454f
S
Stopband: 0.546f
S
Stopband Attenuation: 鈥?2dB
Passband Ripple:
鹵
0.002dB
q
SAMPLING FREQUENCY: 10kHz to 192kHz
q
SYSTEM CLOCK: 128, 192, 256, 384, 512, or
768f
S
with Auto Detect
q
ACCEPTS 16-, 18-, 20-, AND 24-BIT AUDIO DATA
q
DATA FORMATS: Standard, I
2
S, and Left-Justified
q
USER-PROGRAMMABLE MODE CONTROLS:
Digital Attenuation: 0dB to 鈥?3dB, 0.5dB/Step
Digital De-Emphasis
Digital Filter Roll-Off: Sharp or Slow
Soft Mute
Variable Oversampling for
鈭單?/div>
DACs
Zero Detect Mute
Zero Flags for Each Output
q
DUAL SUPPLY OPERATION:
+5V Analog, +3.3V Digital
q
5V TOLERANT DIGITAL INPUTS
q
SMALL SSOP-28 PACKAGE
APPLICATIONS
q
A/V RECEIVERS
q
DVD MOVIE AND AUDIO PLAYERS
q
DVD ADD-ON CARDS FOR HIGH-END PCs
q
HDTV RECEIVERS
q
CAR AUDIO SYSTEMS
q
OTHER APPLICATIONS REQUIRING 24-BIT
AUDIO
DESCRIPTION
The PCM1737 is a CMOS, monolithic, integrated
circuit which includes stereo digital-to-analog con-
verters and support circuitry in a small SSOP-28
package. The data converters utilize Burr-Brown鈥檚
enhanced multi-level delta-sigma architecture, which
employs 4th-order noise shaping and 8-level ampli-
tude quantization to achieve excellent dynamic per-
formance and improved tolerance to clock jitter.
The PCM1737 accepts industry standard audio data
formats with 16- to 24-bit data, providing easy
interfacing to audio DSP and decoder chips. Sam-
pling rates up to 192kHz are supported. A full set
of user-programmable functions are accessible through
a 4-wire serial control port which supports register
write and read back functions.
International Airport Industrial Park 鈥?Mailing Address: PO Box 11400, Tucson, AZ 85734 鈥?Street Address: 6730 S. Tucson Blvd., Tucson, AZ 85706 鈥?Tel: (520) 746-1111
Twx: 910-952-1111 鈥?Internet: http://www.burr-brown.com/ 鈥?Cable: BBRCORP 鈥?Telex: 066-6491 鈥?FAX: (520) 889-1510 鈥?Immediate Product Info: (800) 548-6132
漏 1999 Burr-Brown Corporation
PDS-1552C
Printed in U.S.A. March, 2000
SBAS129

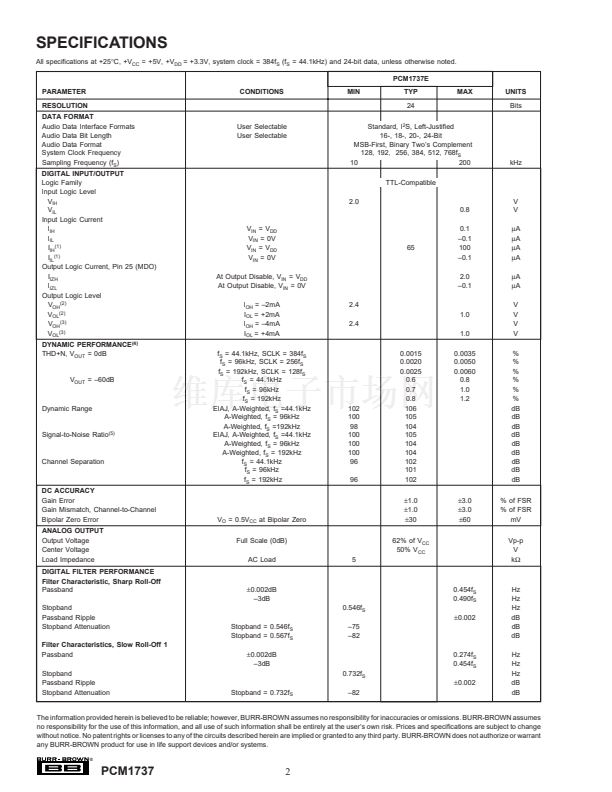

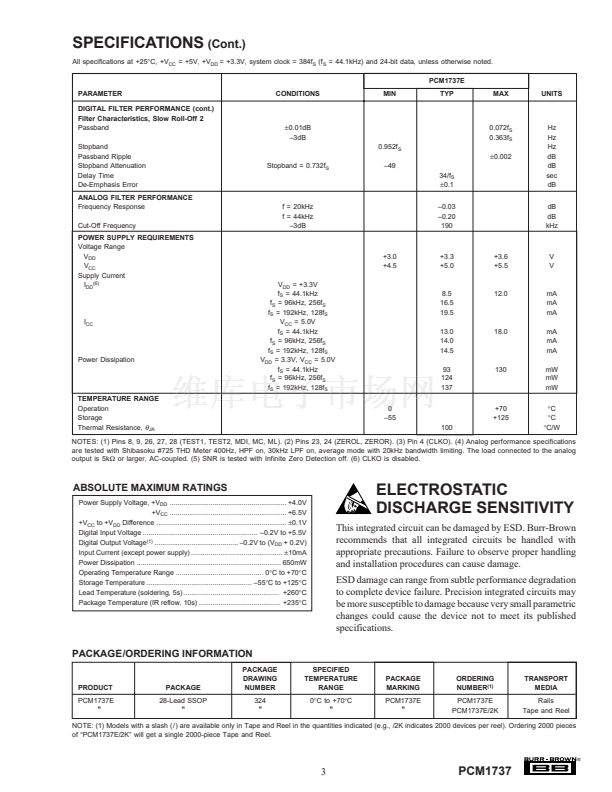

PCM1737E/2K 產品屬性

  • Texas Instruments

  • 音頻數/模轉換器 IC

  • 192 KSPs

  • 24 bit

  • Serial (3-Wire)

  • 5 V

  • + 70 C

  • SSOP-28

  • Reel

  • SMD/SMT

  • 2

  • 105 dB

  • 2000
