PCM1601Y/1K Datasheet

  • PCM1601Y/1K

  • D/A CONVERTER

  • 260.30KB

  • 29頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

廬
PCM
16
PCM
16
00
01
PCM1600
PCM1601
For most current data sheet and other product
information, visit www.burr-brown.com

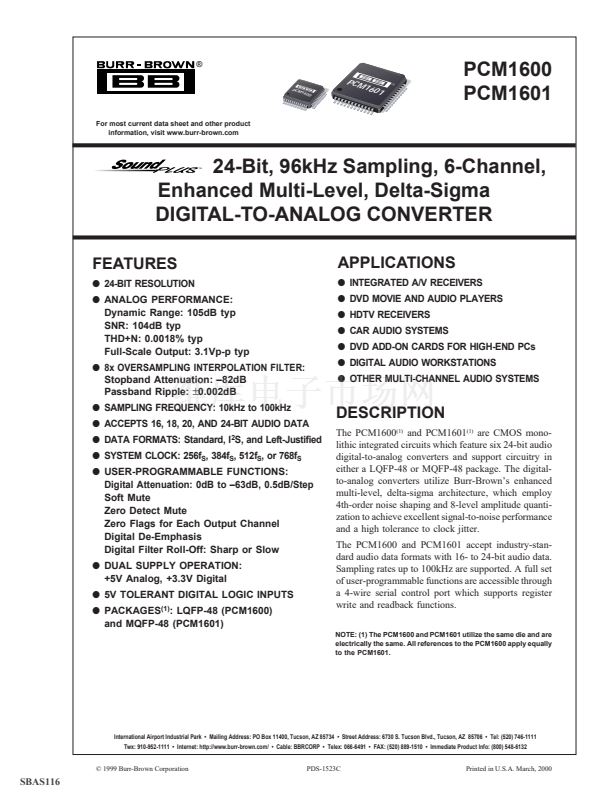

24-Bit, 96kHz Sampling, 6-Channel,
Enhanced Multi-Level, Delta-Sigma
DIGITAL-TO-ANALOG CONVERTER
TM
FEATURES
q
24-BIT RESOLUTION
q
ANALOG PERFORMANCE:
Dynamic Range: 105dB typ
SNR: 104dB typ
THD+N: 0.0018% typ
Full-Scale Output: 3.1Vp-p typ
q
8x OVERSAMPLING INTERPOLATION FILTER:
Stopband Attenuation: 鈥?2dB
Passband Ripple:
鹵
0.002dB
q
SAMPLING FREQUENCY: 10kHz to 100kHz
q
ACCEPTS 16, 18, 20, AND 24-BIT AUDIO DATA
q

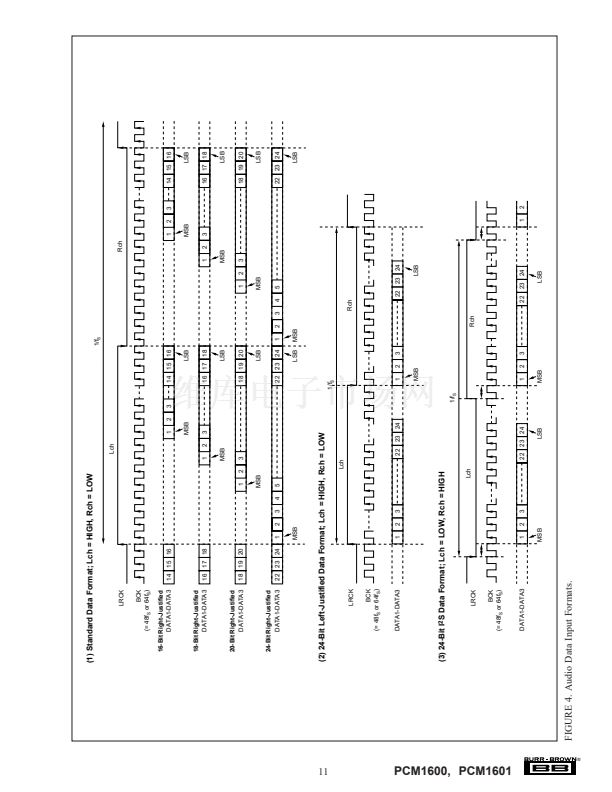

DATA FORMATS: Standard, I
2
S, and Left-Justified
q
SYSTEM CLOCK: 256f
S
, 384f
S
, 512f
S
, or 768f
S
q

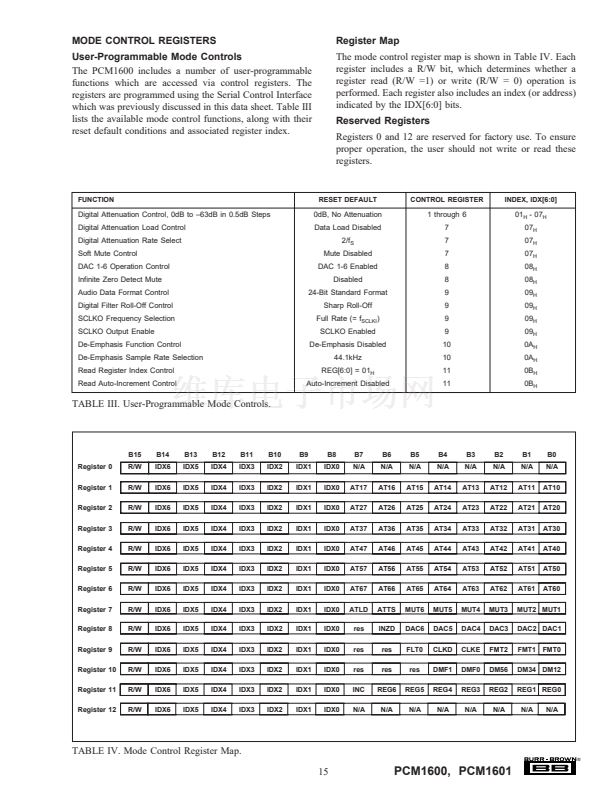

USER-PROGRAMMABLE FUNCTIONS:

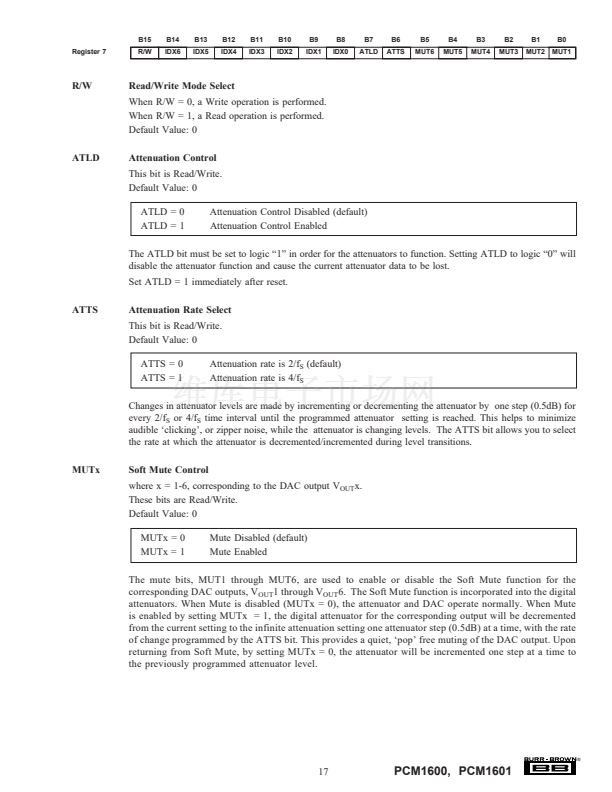

Digital Attenuation: 0dB to 鈥?3dB, 0.5dB/Step
Soft Mute
Zero Detect Mute
Zero Flags for Each Output Channel

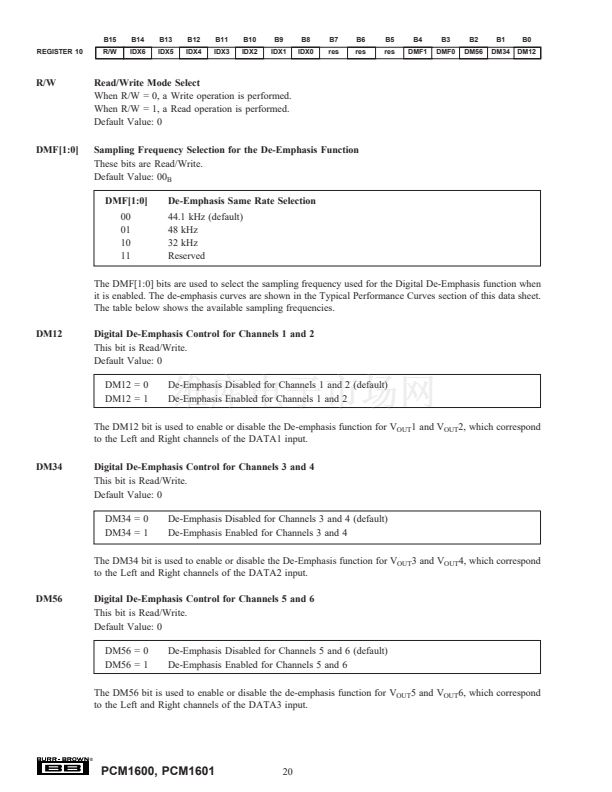

Digital De-Emphasis

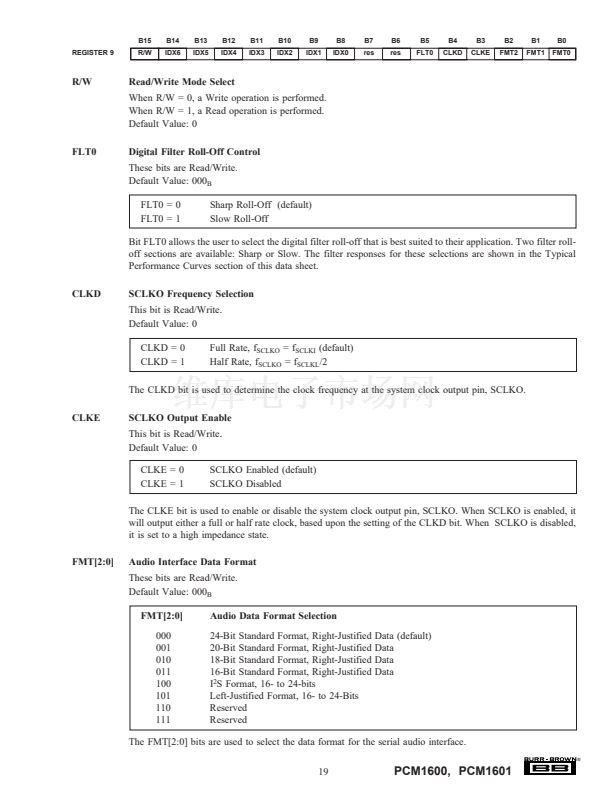

Digital Filter Roll-Off: Sharp or Slow
q
DUAL SUPPLY OPERATION:
+5V Analog, +3.3V Digital
q
5V TOLERANT DIGITAL LOGIC INPUTS
q
PACKAGES
(1)
: LQFP-48 (PCM1600)
and MQFP-48 (PCM1601)

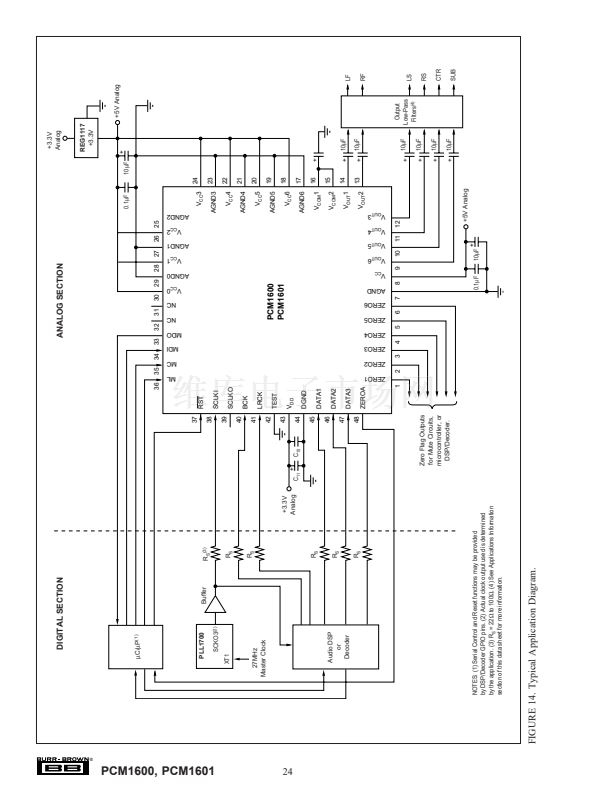

APPLICATIONS
q
INTEGRATED A/V RECEIVERS
q
DVD MOVIE AND AUDIO PLAYERS
q
HDTV RECEIVERS
q
CAR AUDIO SYSTEMS
q
DVD ADD-ON CARDS FOR HIGH-END PCs
q
DIGITAL AUDIO WORKSTATIONS
q
OTHER MULTI-CHANNEL AUDIO SYSTEMS
DESCRIPTION

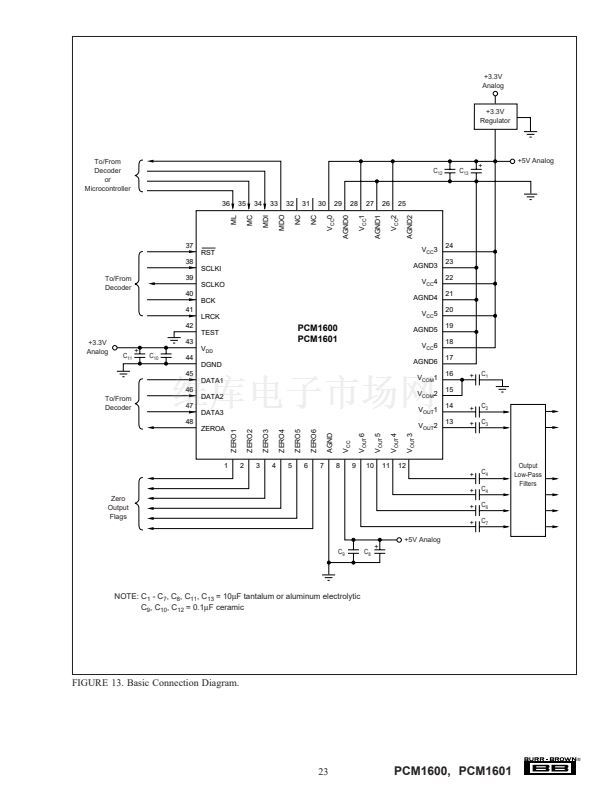

The PCM1600
(1)
and PCM1601
(1)
are CMOS mono-
lithic integrated circuits which feature six 24-bit audio
digital-to-analog converters and support circuitry in
either a LQFP-48 or MQFP-48 package. The digital-
to-analog converters utilize Burr-Brown鈥檚 enhanced

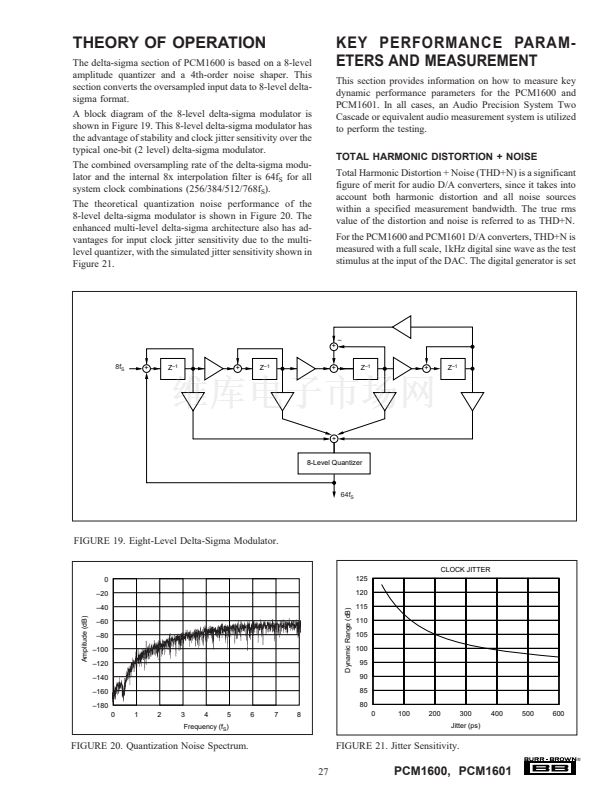

multi-level, delta-sigma architecture, which employ
4th-order noise shaping and 8-level amplitude quanti-
zation to achieve excellent signal-to-noise performance
and a high tolerance to clock jitter.

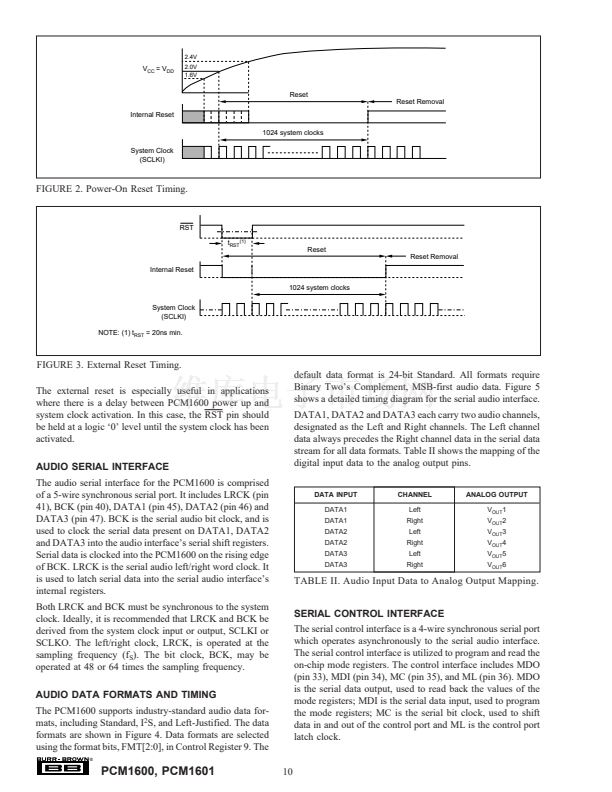

The PCM1600 and PCM1601 accept industry-stan-
dard audio data formats with 16- to 24-bit audio data.
Sampling rates up to 100kHz are supported. A full set

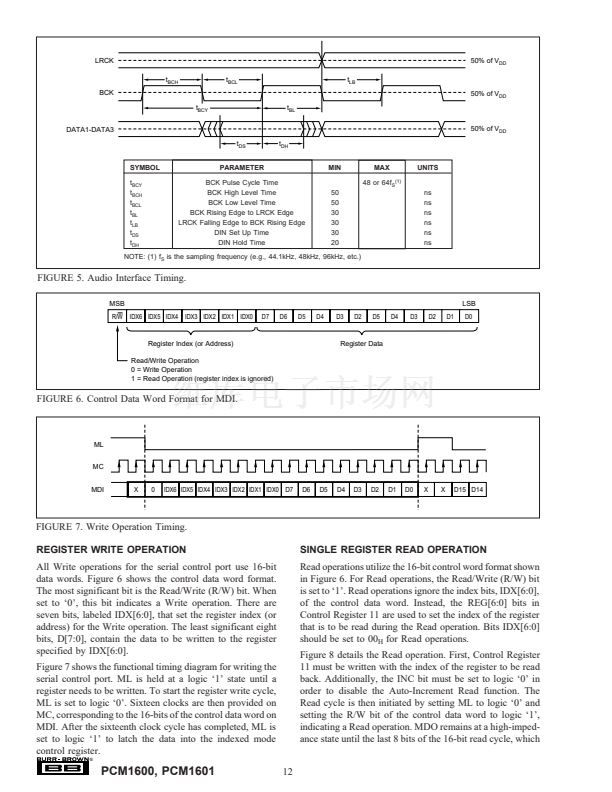

of user-programmable functions are accessible through

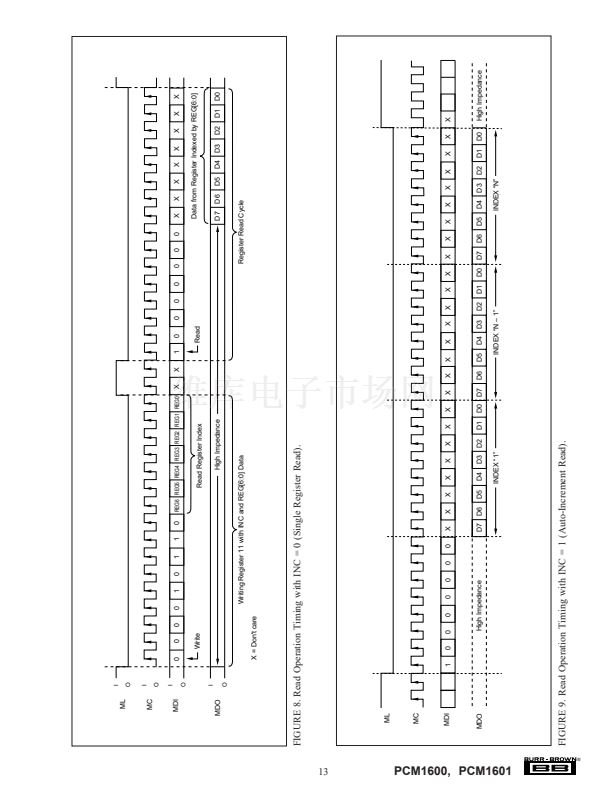

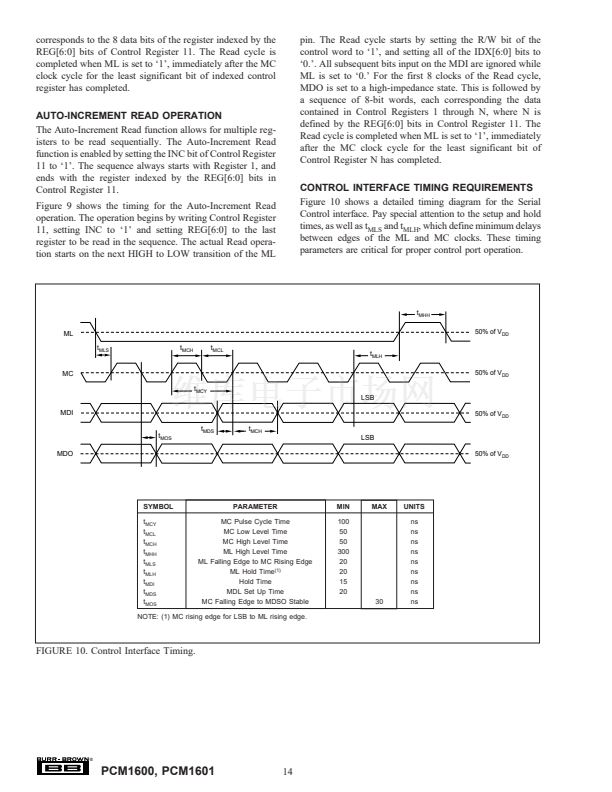

a 4-wire serial control port which supports register
write and readback functions.
NOTE: (1) The PCM1600 and PCM1601 utilize the same die and are
electrically the same. All references to the PCM1600 apply equally
to the PCM1601.
International Airport Industrial Park 鈥?Mailing Address: PO Box 11400, Tucson, AZ 85734 鈥?Street Address: 6730 S. Tucson Blvd., Tucson, AZ 85706 鈥?Tel: (520) 746-1111
Twx: 910-952-1111 鈥?Internet: http://www.burr-brown.com/ 鈥?Cable: BBRCORP 鈥?Telex: 066-6491 鈥?FAX: (520) 889-1510 鈥?Immediate Product Info: (800) 548-6132
漏 1999 Burr-Brown Corporation
PDS-1523C
Printed in U.S.A. March, 2000
SBAS116
