PCF85103C-2 Datasheet

  • PCF85103C-2

  • 256 x 8-bit CMOS EEPROM with I2C-bus interface

  • 319.80KB

  • 20頁

  • PHILIPS

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

PCF85103C-2
256
脳
8-bit CMOS EEPROM with I
2
C-bus interface
Rev. 02 鈥?09 May 2002
Product data
1. Description
The PCF85103C-2 is a 鏗俹ating gate Electrically Erasable Programmable Read Only
Memory (EEPROM) with 2 kbits (256
脳
8-bit) non-volatile storage. By using an
internal redundant storage code, it is fault tolerant to single bit errors. This feature
dramatically increases the reliability compared to conventional EEPROMs. Power
consumption is low due to the full CMOS technology used. The programming voltage
is generated on-chip, using a voltage multiplier.
Data bytes are received and transmitted via the serial I
2
C-bus. Up to eight

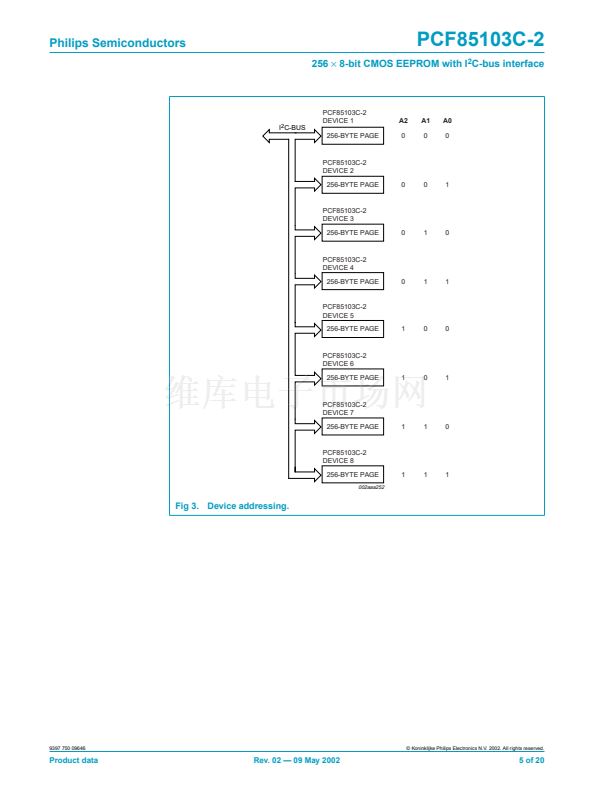

PCF85103C-2 devices may be connected to the I
2
C-bus. Chip select is accomplished
by three address inputs (A0, A1 and A2).
The PCF85103C-2 is identical to PCF85102C-2 except for the 鏗亁ed I
2
C address,
allowing up to eight PCF85102C-2 and eight PCF85103C-2 on the same I
2
C-bus.
2. Features
s
Low power CMOS:
x
2.0 mA maximum operating current
x
maximum standby current 10
碌A(chǔ)
(at 6.0 V), typical 4
碌A(chǔ)
s
Non-volatile storage of 2 kbits organized as 256
脳
8-bit
s
Single supply with full operation down to 2.5 V
s
On-chip voltage multiplier
s
Serial input/output I
2
C-bus
s
Write operations:
x
byte write mode
x
8-byte page write mode (minimizes total write time per byte)
s
Read operations:
x
sequential read
x
random read
s
Internal timer for writing (no external components)
s
Internal power-on reset
s
0 to 100 kHz clock frequency
s
High reliability by using a redundant storage code
s
Endurance: 1,000,000 Erase/Write (E/W) cycles at T
amb
= 22
擄C
s
10 years non-volatile data retention time
s
Pin compatible to: PCF8570, PCF8571, PCF8572, PCA8581, PCF8582, and
PCF85102
