SELF-LEADED SMT
COMMON MODE INDUCTORS
Pick and place compatible
Rated voltage 250Vac
Low RFI toroid
Tape & Reel packaging available
VDE approval and U.L. recognition pending
Electrical Specifications @ 25擄C 鈥?Operating Temperature -40擄C to +130擄C
Part
Number
PE-53910
PE-53911
PE-53912
PE-53913
PE-53914
1 RMS
(Amps)
3.60
1.50
2.50
1.00
0.50
Inductance
(mH 鹵30%)
1.0
1.0
3.0
10.0
22.0
DCR (MAX)
(m鈩?
50
60
80
450
850
SRF
(MHz)
4
2
2.2
0.5
0.3

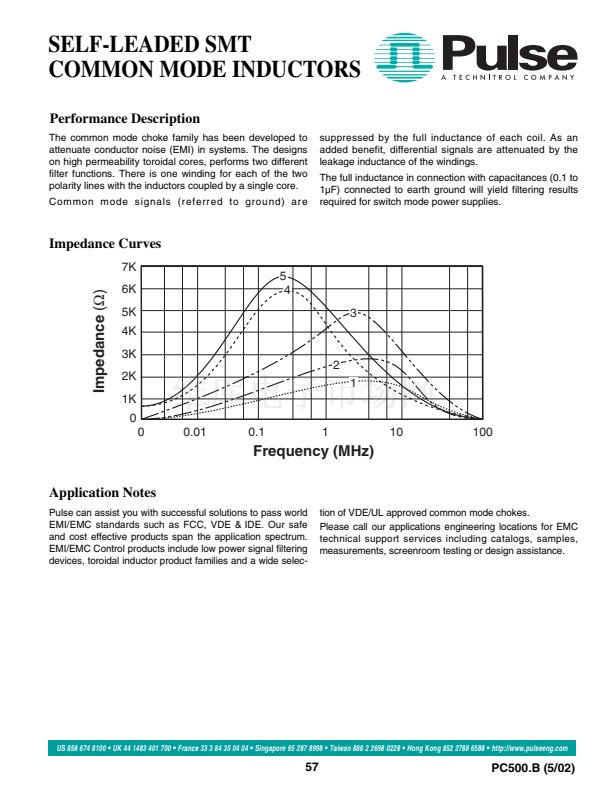

Impedance
Curve
(see back page)
1
2
3
4
5
Size
Code
LCCI-3
LCCI-1
LCCI-3
LCCI-1
LCCI-1
Weight
(Grams)
5.3
2.5
5.2
2.4
2.4
Quantity
In Tube
30
40
30
40
40
NOTE:
Add suffix
"T"
to part number for tape and reel package (i.e. PE-53910T).
Mechanical
PE-5391X
Schematic
E
A
2
3
Date Code
Country of Origin
4X .175
4,45
R
1
P5391X
4X .060
1,52
2
1
1
2
3
1:1 鹵2%
F
4
4
4
3
Suggested Pad Layout
C
D
.005/0,13
4 SURFACES
Dimensions:
Inches
mm
Unless otherwise specified, all tolerances are 鹵 .010
0,25
B
Size
LCCI-1
LCCI-3
A
.560/14,22
.670/17,02
B
.645/16,38
.770/19,56
C
.350/8,89
.390/9,90
D
.520/13,21
.650/16,51
E
.340/8,64
.445/11,30
F
.530/13,46
.660/16,76
US 858 674 8100
鈥?/div>
UK 44 1483 401 700
鈥?/div>
France 33 3 84 35 04 04
鈥?/div>
Singapore 65 287 8998
鈥?/div>
Taiwan 886 2 2698 0228
鈥?/div>
Hong Kong 852 2788 6588
鈥?/div>
http://www.pulseeng.com
PC500.B (5/02)
56
