UTC PC1379

DESCRIPTION

LINEAR INTEGRATED CIRCUIT

1-CHIP DEFECTION SYSTEM

The UTC PC1379 consists of a vertical system, including

function and a horizontal system, including an AFC function.

It is for use in small size color TVs, B/W TV receivers and

monitors.

FEATURES

*Low power consumption, direct deflection coil driving

capability(Fly-back voltage two times as high supply voltage

is supplied during fly-back period only)

*Variable circuit of vertical retrace time on chip

FUNCTIONS

HORIZONTAL SECTION

*SYNC separation

*Horizontal Oscillators

*Horizontal Pre-drivers

*Horizontal AFCs

*Shunt Regulator(Typical 6.7V)

DIP-16H

VERTICAL SECTION

*Vertical Oscillator

*Vertical Pre-drivers

*Vertical Output

*Fly-back generators

BLOCK DIAGRAM

V-Osc

Control

V-Osc

V-Vcc

Boot

Strap

Flykack

Adjusting

Boot

Strap

2

1

SYNC

SEParation

Output

SYNC

SEParation

Input

3

4

5

11

7

V-AMP

V-OSC

8

V-

Output

16

15

SYNC-SEP

Fly Back

Generator

6

NF

H.AFC

Input

14

H-AFC

H-OSC

H-PREDRIVERS

REGUALTOR

10

H-Vcc

13

H-AFC

Output

12

H-Osc

Control

9

H-

Output

UTC

UNISONIC TECHNOLOGIES CO., LTD.

1

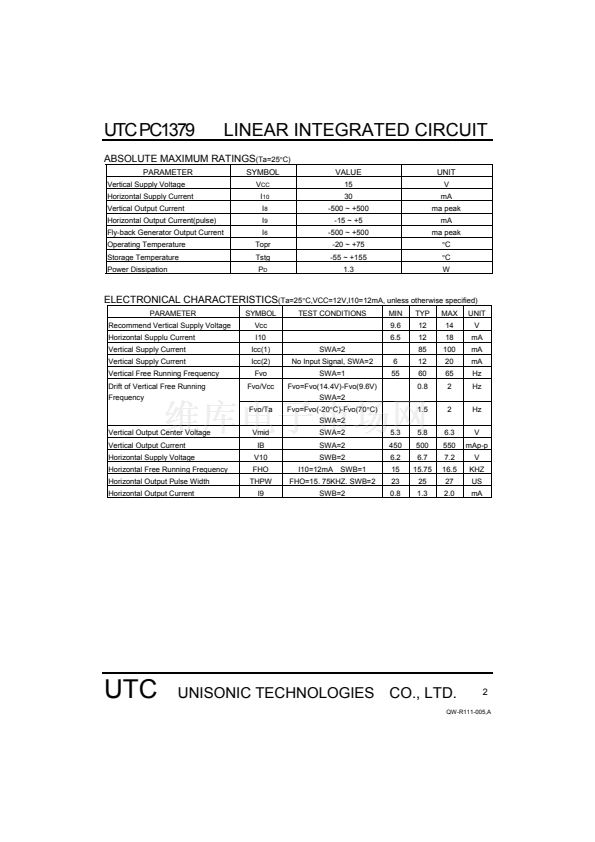

QW-R111-005,A
