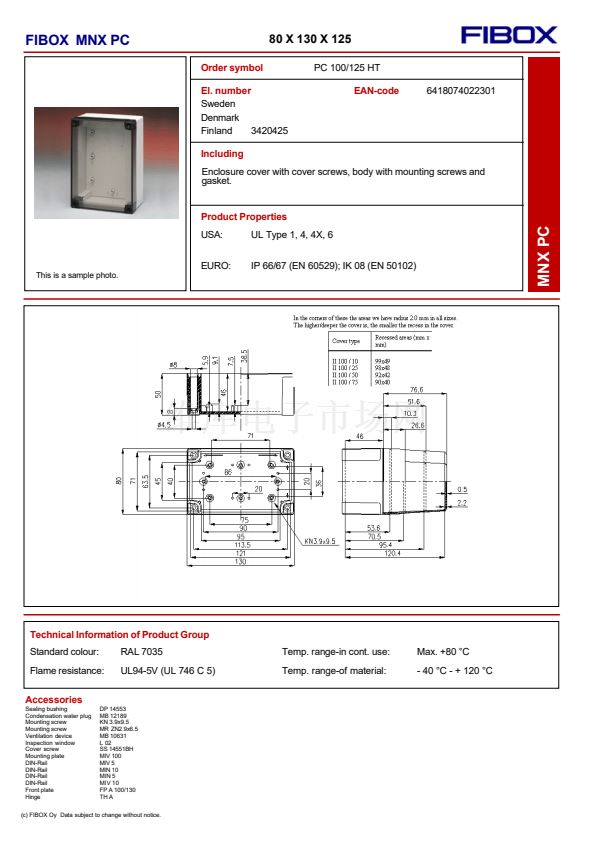

FIBOX MNX PC
Order symbol
80 X 130 X 125
PC 100/125 HT
EAN-code
6418074022301
El. number
Sweden
Denmark
Finland
3420425
Including
Enclosure cover with cover screws, body with mounting screws and
gasket.
Product Properties
USA:
EURO:
This is a sample photo.
UL Type 1, 4, 4X, 6
IP 66/67 (EN 60529); IK 08 (EN 50102)
Technical Information of Product Group
Standard colour:
Flame resistance:
Accessories
Sealing bushing
Condensation water plug
Mounting screw
Mounting screw
Ventilation device
Inspection window
Cover screw
Mounting plate
DIN-Rail
DIN-Rail
DIN-Rail
DIN-Rail
Front plate
Hinge
DP 14553
MB 12189
KN 3.9x9.5
MR ZN2.9x6.5
MB 10631
L 02
SS 14551BH
MIV 100
MIV 5
MIN 10
MIN 5
MIV 10
FP A 100/130
TH A
RAL 7035
UL94-5V (UL 746 C 5)
Temp. range-in cont. use:
Temp. range-of material:
Max. +80 擄C
- 40 擄C - + 120 擄C
(c) FIBOX Oy Data subject to change without notice.
MNX PC
1
