5.0-14.0 GHz GaAs MMIC
Packaged Driver Amplifier
February 2007 - Rev 02-Feb-07
CMM0511-QT
Features
20 dB Gain
11 dBm P1dB
3x3 QFN Package
Single Power Supply
5-7 V, 90 mA Self Bias
On-Chip ESD Protection
Circuit Description
Mimix Broadband鈥檚 3 stage 5.0 to 14.0 GHz driver
amplifier is packaged in surface mount 3x3 QFN
package. The device is a self-biased, single supply
design with 20 dB gain and 11 dBm P1dB. This MMIC
uses Mimix Broadband鈥檚 0.25um optical pHEMT
process.
Absolute Maximum Ratings
Supply Voltage
RF Input Power
Storage Temperature (Tstg)
Junction Temperature
Operating Temperature
+8 V
+10 dBm
-55 潞C to +125 潞C
175 潞C
-40 潞C to +85潞C
Operating this device beyond any of these parameters may
cause permanent damage.
Electrical Characteristics (T=25潞C)
Parameter
Frequency Range
Gain
Input Return Loss
Output P1dB
Output IP3
Supply Voltage
Current
Units
GHz
dB
dBm
dBm
V
mA
Min.
5
-
-
-
-
-
Typ.
-
20
-12
11
22
5
90
Max.
14
-
-
-
-
7
120

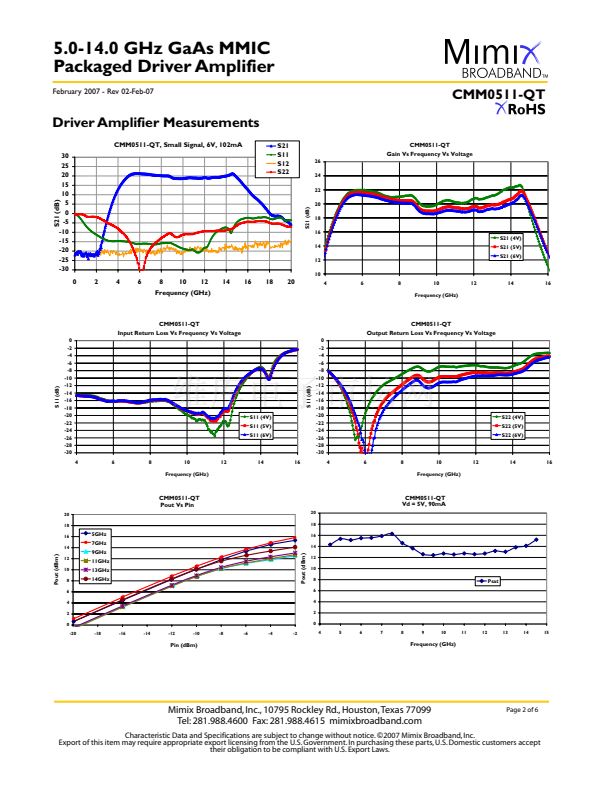

Typical Parameters (6V, 90 mA)
Parameter
Frequency
Gain
IP Return Loss
Op Return Loss
P1dB
OIP3
5
20.5
-15
-14.5
13
24.0
7
20.5
-15
-15
13
24.0
Typical
9
18.5
-17
-11
10
22.0
11
18.5
-20
-11
10
20.0
13
18.5
-10
-9
10
21.0
14
20
-8
-9
11.5
20.5
Mimix Broadband, Inc., 10795 Rockley Rd., Houston, Texas 77099
Tel: 281.988.4600 Fax: 281.988.4615 mimixbroadband.com
Page 1 of 6
Characteristic Data and Specifications are subject to change without notice.
漏2007
Mimix Broadband, Inc.
Export of this item may require appropriate export licensing from the U.S. Government. In purchasing these parts, U.S. Domestic customers accept
their obligation to be compliant with U.S. Export Laws.
