One upstream USB port terminator, EMI filter and
transient overvoltage protector in a single surface-
mount package

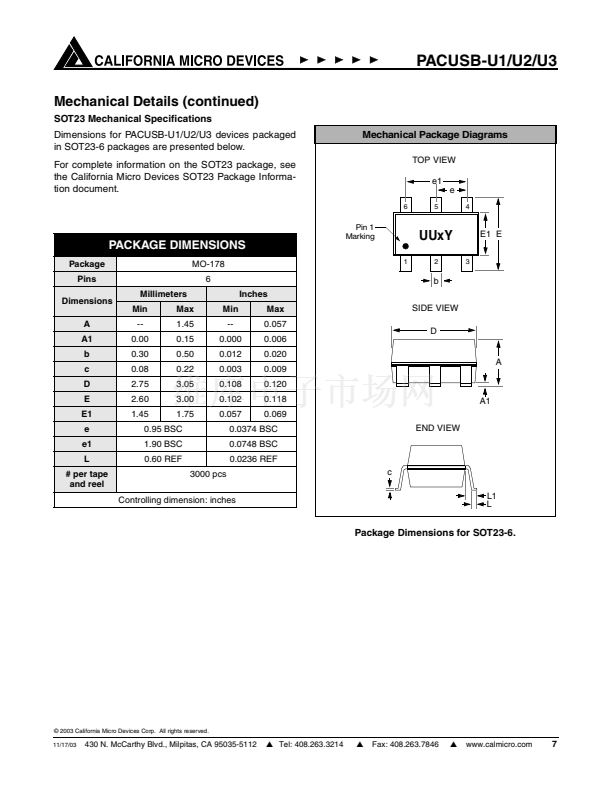

Compact SC70 or SOT23 package saves board
space and lowers manufacturing costs compared
to discrete solutions
ESD protection to 30kV contact discharge per
MIL-STD-883D, method 3015
ESD protection to 15kV contact discharge per
IEC 61000-4-2 international standard
Product Description
The PACUSB-U1, PACUSB-U2, and PACUSB-U3 are
single-channel USB upstream-port termination net-
works.

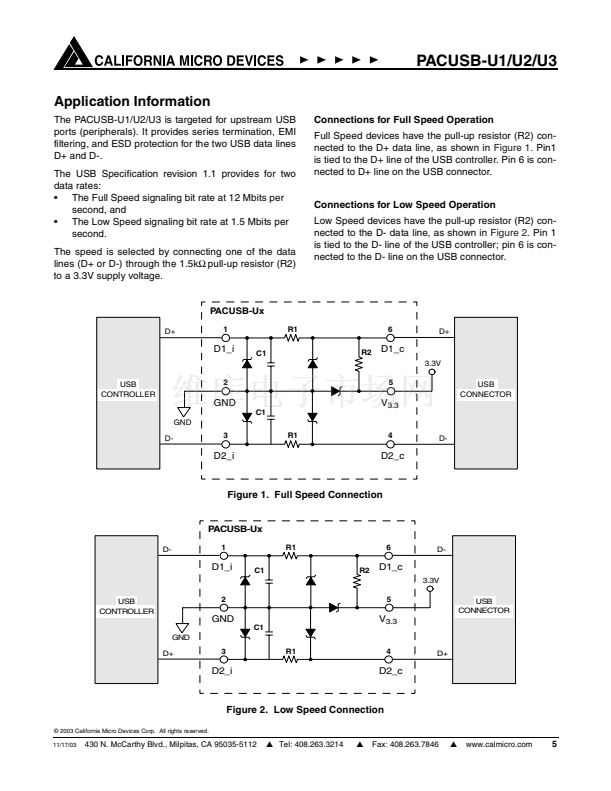

The PACUSB-U1/U2/U3 integrate EMI/RFI filter com-
ponents R1 and C1, as recommended by the USB
specification. Because these are upstream USB
devices, they are terminated with a single 1.5k鈩?pull-up
resistor to V
3.3
(R2).

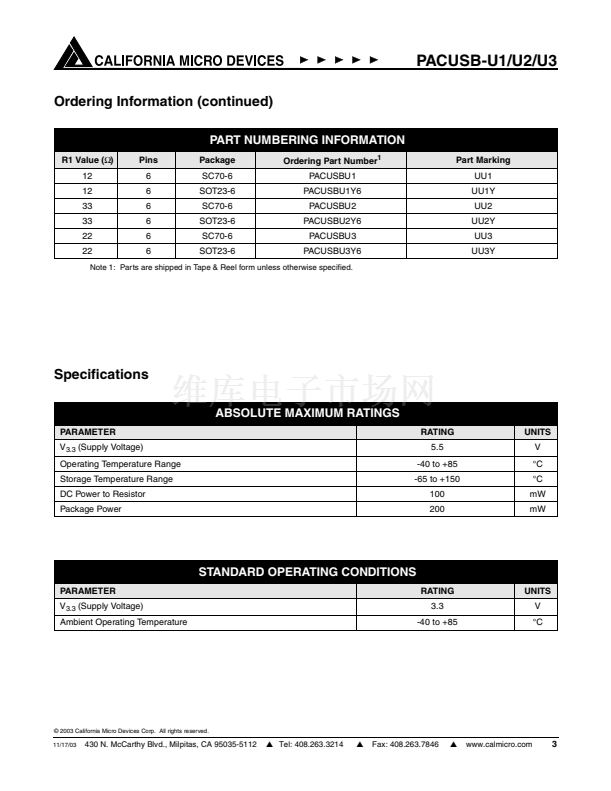

There are three options for the value of the series
resistor R1:
鈥?For PACUSB-U1, R1=12鈩?/div>
鈥?For PACUSB-U2, R1=33鈩?/div>
鈥?For PACUSB-U3, R1=22鈩?/div>
This series resistance plus the USB driver output resis-
tance must be close to the USB cable鈥檚 characteristic
impedance of 45鈩?(90鈩?balanced) to minimize trans-
mission line reflections.

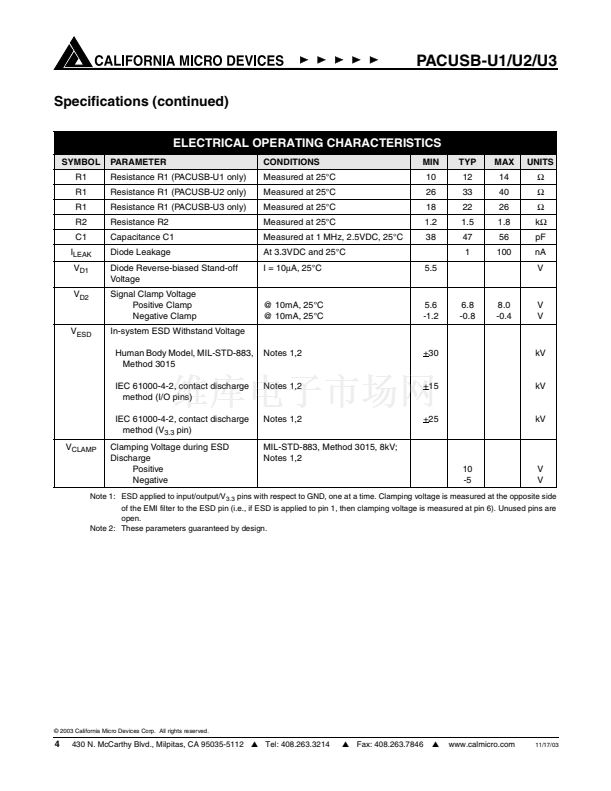

In addition, these parts provide a very high level of pro-
tection for sensitive electronic components that may be
subjected to electrostatic discharge (ESD). The input
and output pins are designed and characterized to dis-
sipate ESD strikes of 15kV safely, a level well beyond
the maximum requirements of the IEC 61000-4-2 inter-
national standard.
Using the MIL-STD-883D (Method 3015) specification
for Human Body Model (HBM) ESD, all pins are pro-
tected for contact discharges to greater than 30kV.
鈥?/div>
鈥?/div>
鈥?/div>
Applications
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
ESD protection and termination of USB port
All USB peripherals (PC printers, scanners,
zip drives, etc.)
PDAs / handheld PCs
Digital cameras
Wireless Handets
MP3 Players
Cable Modems

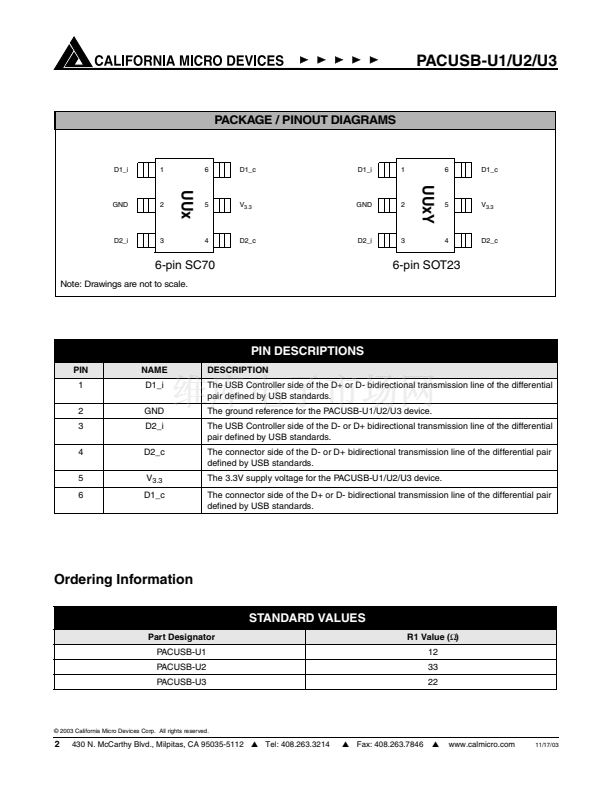

Electrical Schematic
D1_i
IN1
1
C1
R1
R2
6
D1_c
OUT 1
GND
GND
2
C1
3
R1
5
V
3.3
Vcc
D2_i
IN2
漏 2003 California Micro Devices Corp. All rights reserved.
11/17/03
4
D2_c
OUT 2
C0160997D
430 N. McCarthy Blvd., Milpitas, CA 95035-5112
L
Tel: 408.263.3214
L
Fax: 408.263.7846
L
www.calmicro.com
1
