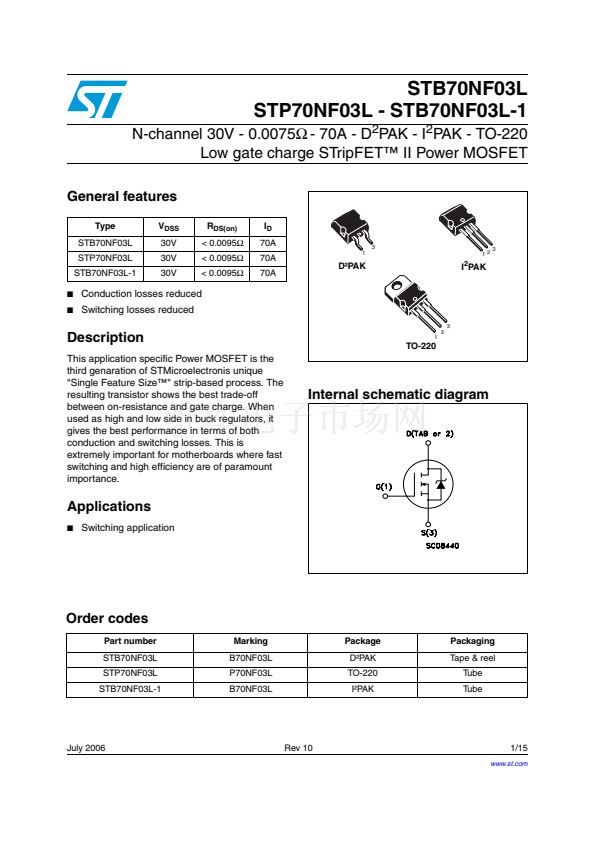

STB70NF03L

STP70NF03L - STB70NF03L-1

N-channel 30V - 0.0075鈩?- 70A - D

PAK - I

PAK - TO-220

Low gate charge STripFET鈩?II Power MOSFET

General features

Type

STB70NF03L

STP70NF03L

STB70NF03L-1

鈻?/div>

DSS

30V

DS(on)

< 0.0095鈩?/div>

70A

D虜PAK

PAK

Conduction losses reduced

Switching losses reduced

Description

This application specific Power MOSFET is the

third genaration of STMicroelectronis unique

"Single Feature Size鈩?quot; strip-based process. The

resulting transistor shows the best trade-off

between on-resistance and gate charge. When

used as high and low side in buck regulators, it

gives the best performance in terms of both

conduction and switching losses. This is

extremely important for motherboards where fast

switching and high efficiency are of paramount

importance.

TO-220

Internal schematic diagram

Applications

鈻?/div>

Switching application

Order codes

Part number

STB70NF03L

STP70NF03L

STB70NF03L-1

Marking

B70NF03L

P70NF03L

B70NF03L

Package

D虜PAK

TO-220

I虜PAK

Packaging

Tape & reel

Tube

July 2006

Rev 10

1/15

www.st.com
