Silicon Avalanche Diodes

600W Surface Mount Transient Voltage Suppressors

P6SMBJ Series

Protect sensitive electronics against voltage transients induced by

inductive load switching and lightning. Ideal for the protection

of I/O interfaces, Vcc bus and other integrated circuits.

廬

FEATURES

鈥?/div>

Stand-off voltage range 5.5 to 185 Volts

鈥?/div>

Uni-directional and Bi-directional

鈥?/div>

Glass passivated junction

鈥?/div>

Jedec package designed to meet SM assembly needs

鈥?/div>

Low lead inductance

鈥?/div>

100% surge tested

鈥?/div>

UL recognised

MAXIMUM RATING

鈥?/div>

Peak Pulse Power (Ppk) 600 Watts (10 x 1000碌s)@25擄C

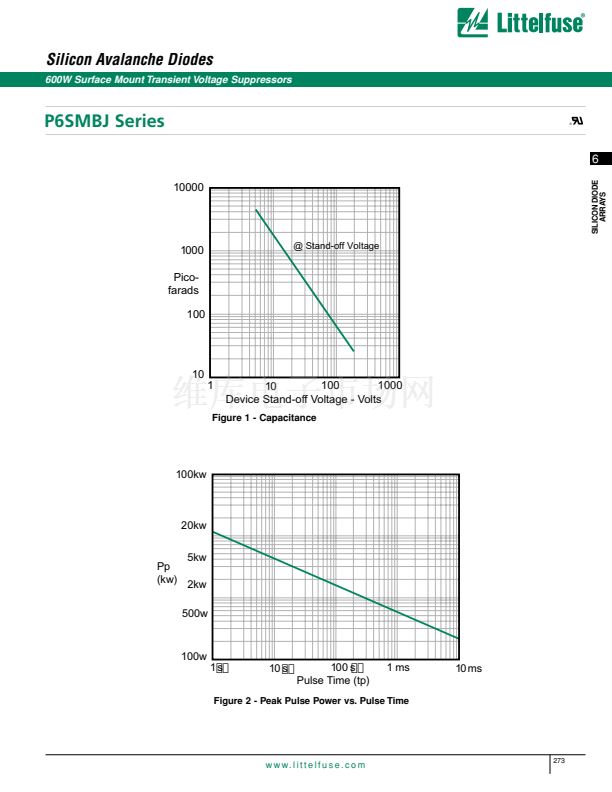

(see diagram on page 3 for wave form)

鈥?/div>

1.5 watt steady state

鈥?/div>

Response time: 1 x 10-12 secs (theoretical)

鈥?/div>

Forward surge rating: 100A, 8.3 ms single half sine-wave

(uni-directional only)

鈥?/div>

Operating & storage temp.: -55擄C to +150擄C

MECHANICAL CHARACTERISTICS

鈥?/div>

Case: DO-214AA moulded plastic over glass

passivated junction UL94V(O) (Thermoset) Epoxy

鈥?/div>

Terminals: Solder plated solderable per MIL-STD-750

Method 2026

鈥?/div>

Solderable leads: 230擄C for 10 seconds.

鈥?/div>

Marking: cathode band (positive terminal, uni-directional

devices only), device code, logo

鈥?/div>

Weight: 0.093 gram (approx).

2.16

2.74

2.16

Agency Approvals:

Recognized under the Components Program

of Underwriters Laboratories.

Agency File Number:

E128662

2.26

Solder Pads

ORDERING INFORMATION

All dimensions in mm

P6SMBJ

Voltage

Bi-Directional

5% Voltage Tolerance

272

w w w. l i t t e l f u s e . c o m

標準包裝
3,000
類別
過電壓，電流，溫度裝置
家庭
TVS - 二極管
系列
P6SMBJ
電壓 - 反向隔離（標準值）
77.8V
電壓 - 擊穿
86.5V
功率（瓦特）
600W
電極標記
單向
安裝類型
表面貼裝
封裝/外殼
DO-214AA，SMB
供應商設備封裝
SMB
包裝
帶卷 (TR)
