P6KE8V2A Datasheet

IC型號：
P6KE8V2A
PDF描述：
Transient Voltage Suppressors P6KE6V8(C)A - P6KE440(C)A
文件大?。?/label>
51.63KB
PDF頁數：
3頁
芯片廠家：
FAIRCHILD

閱覽下載糾錯 0

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

P6KE6V8(C)A - P6KE440(C)A

Transient Voltage Suppressors

P6KE6V8(C)A - P6KE440(C)A

Features

鈥?/div>

Glass passivated junction.

600W Peak Pulse Power capability at

1.0 ms.

Excellent clamping capability.

Low incremental surge resistance.

Fast response time; typically less

than 1.0 ps from 0 volts to BV for

unidirectional and 5.0 ns for

bidirectional.

Typical I

less than 1.0

碌A(chǔ)

above 10V.

DO-15

COLOR BAND DENOTES CATHODE

ON UNIDIRECTIONAL DEVICES ONLY. NO

COLOR BAND ON BIDIRECTIONAL DEVICES.

鈥?/div>

DEVICES FOR BIPOLAR APPLICATIONS

- Bidirectional types use CA suffix.

- Electrical Characteristics apply in both directions.

600 Watt Transient Voltage Suppressors

Absolute Maximum Ratings*

Symbol

PPM

FSM

stg

Peak Pulse Current

Power Dissipation

.375 " lead length @ T

= 75擄C

Non-repetitive Peak Forward Surge Current

superimposed on rated load (JEDEC method)

Storage Temperature Range

Operating Junction Temperature

= 25擄C unless otherwise noted

Parameter

Peak Pulse Power Dissipation at T

=1ms

Value

600

see table

5.0

(Note 1)

Units

擄C

100

-65 to +175

+ 175

These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.

Note 1:

Measured on 8.3 ms single half-sine wave; Duty cycle = 4 pulses per minute maximum.

錚?002

Fairchild Semiconductor Corporation

P6KE6V8(C)A - P6KE440(C)A, Rev. D

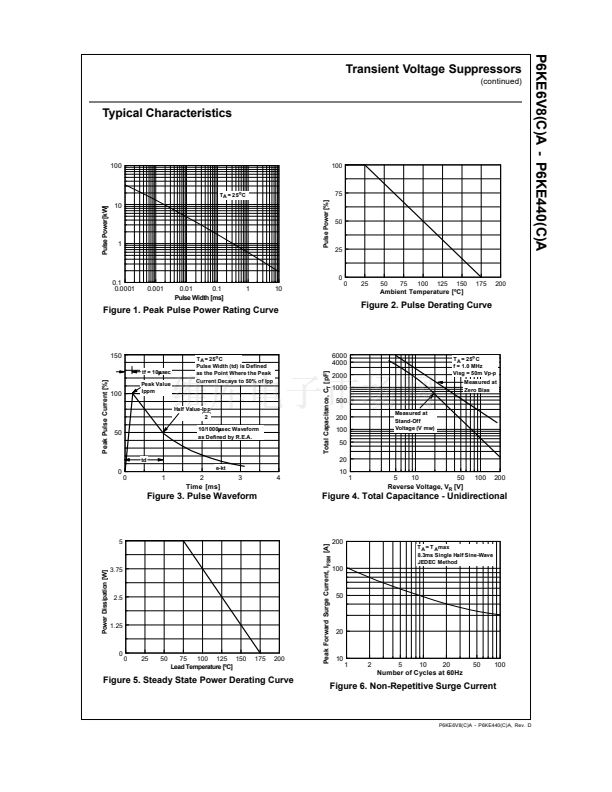

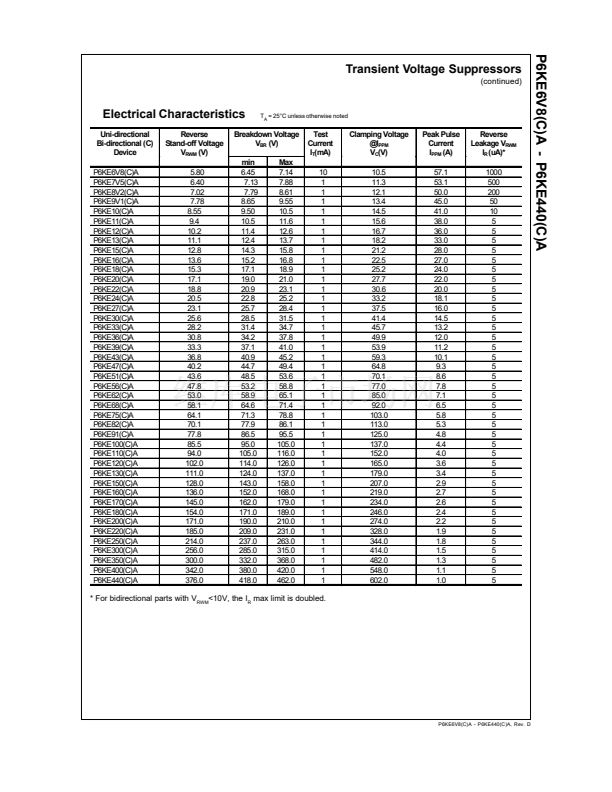

標準包裝
4,000
類別
過電壓，電流，溫度裝置
家庭
TVS - 二極管
系列
-
電壓 - 反向隔離（標準值）
7.02V
電壓 - 擊穿
7.79V
功率（瓦特）
600W
電極標記
單向
安裝類型
通孔
封裝/外殼
DO-204AC，DO-15，軸向
供應商設備封裝
DO-15
包裝
帶卷 (TR)
