RECTRON
SEMICONDUCTOR
TECHNICAL SPECIFICATION
TVS
P6KE
SERIES
GPP TRANSIENT VOLTAGE SUPPRESSOR
600 WATT PEAK POWER 1.0 WATT STEADY STATE
FEATURES
*
*
*
*
*
*
Plastic package has underwriters laboratory
Glass passivated chip construction
600 watt surage capability at 1ms
Excellent clamping capability
Low zener impedance
Fast response time
DO-15
Ratings at 25
o
C ambient temperature unless otherwise specified.
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25
o
C ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load,
For capacitive load, derate current by 20%.
Dimensions in inches and (millimeters)
DEVICES FOR BIPOLAR APPLICATIONS
For Bidirectional use C or CA suffix for types P6KE6.8 thru P6KE400
Electrical characteristics apply in both direction
MAXIMUM RATINGS
(At T
A
= 25
o
C unless otherwise noted)
RATINGS
Peak power dissipation with a 10/1000uS (NOTES 1, FIG.1)
Steady state power dissipation at T
L
= 75 C lead lengths,
.375鈥?( 9.5 mm ) ( NOTES 2 )
Peak forward surge current, 8.3ms single half sine wave-
superimposed on rated load( JEDEC METHOD ) ( NOTES 3 )
Maximum instantaneous forward voltage at 50A for
unidirectional only ( NOTES 4 )
Operating and storage temperature range
o
o
SYMBOL
P
PPM
P
D
VALUE
Minimum 600
5.0
UNITS
Watts
Watts
I
FSM
100
Amps
V
F
T
J
, T
STG
3.5/5.0
-65 to + 175
Volts
0
C
1998-8

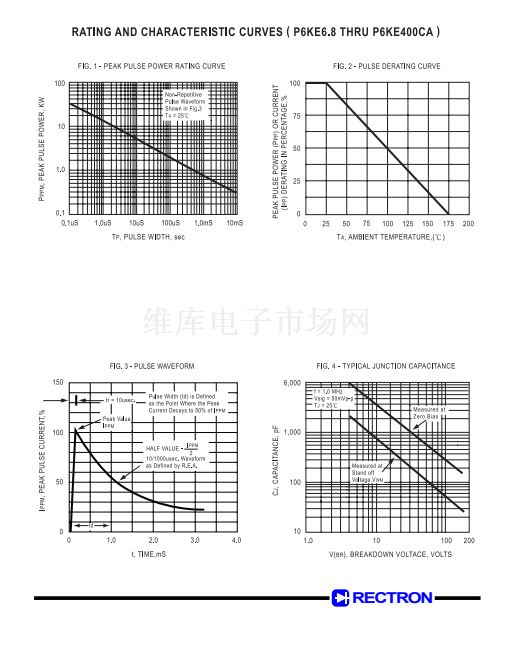

NOTES : 1. Non-repetitive current pulse, per Fig.3 and derated above T
A
= 25 C per Fig.2.

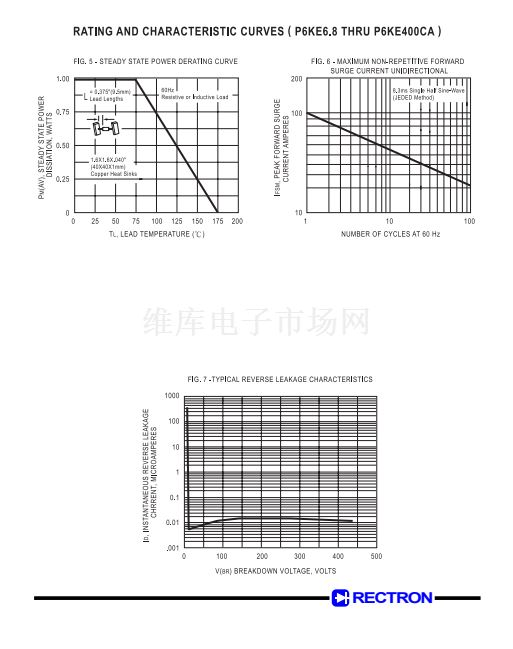

2. Mounted on copper pad area of 1.6 X 1.6鈥? 40X40 mm) per Fig. 5
3. Measured on 8.3ms single half sine-wave or equivalent square wave duty cycle = 4 pulses per minute maximum.
4. V
F
= 3.0V max. for devices of V(
BR
) < 200V and V
F
= 5.0 Volts for devices of V(
BR
) > 200V.
