Working Peak Reverse Voltage Range 鈥?171 V
Peak Power 鈥?600 Watts @ 1.0 ms
ESD Rating of Class 3 (>16 KV) per Human Body Model
Maximum Clamp Voltage @ Peak Pulse Current
Low Leakage < 5.0
碌A(chǔ)
above 171 V
Maximum Temperature Coefficient Specified
UL 497B for Isolated Loop Circuit Protection
Response Time is typically < 1.0 ns
Mechanical Characteristics:
CASE:
Void-free, Transfer-molded, Thermosetting plastic
FINISH:
All external surfaces are corrosion resistant and leads are

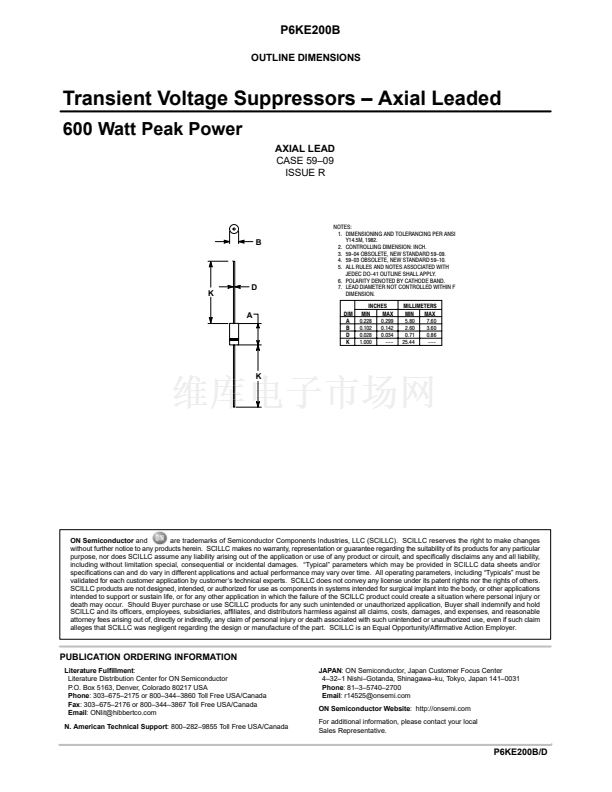

AXIAL LEAD
CASE 59鈥?9
PLASTIC
L
P6KE
200B
YYWW
L = Assembly Location
P6KE200B = Device Code
YY = Year
WW = Work Week
readily solderable
MAXIMUM LEAD TEMPERATURE FOR SOLDERING:
230_C, 1/16鈥?from the case for 10 seconds
POLARITY:
Cathode indicated by polarity band
MOUNTING POSITION:
Any
MAXIMUM RATINGS
Rating
Peak Power Dissipation (Note 1)
@ T
L
鈮?/div>
25擄C
Steady State Power Dissipation
@ T
L
鈮?/div>
75擄C, Lead Length = 3/8鈥?/div>
Derated above T
L
= 75擄C
Thermal Resistance, Junction鈥搕o鈥揕ead
Forward Surge Current (Note 2)
@ T
A
= 25擄C
Operating and Storage
Temperature Range
Symbol
P
PK
P
D
Value
600
5.0
50
R
qJL
I
FSM
T
J
, T
stg
15
100
鈥?55 to
+150
Unit
Watts
Watts
mW/擄C
擄C/W
Amps
擄C
ORDERING INFORMATION
Device
P6KE200B
P6KE200BRL
Package
Axial Lead
Axial Lead
Shipping
1000 Units/Box
5000 Tape & Reel

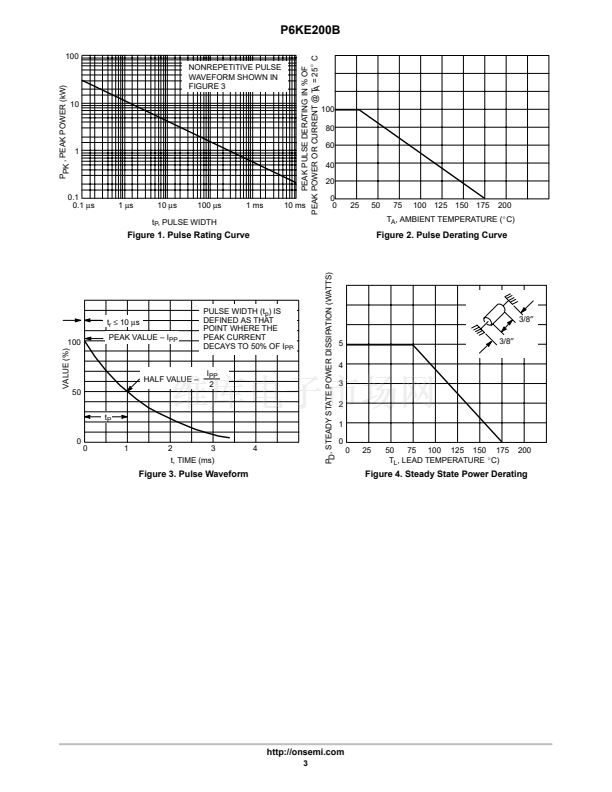

1. Nonrepetitive current pulse per Figure 3 and derated above T
A
= 25擄C per
Figure 2.
2. 1/2 sine wave (or equivalent square wave), PW = 8.3 ms, duty cycle = 4 pulses
per minute maximum.
漏
Semiconductor Components Industries, LLC, 2002
1
January, 2002 鈥?Rev. 0
Publication Order Number:
P6KE200B/D
