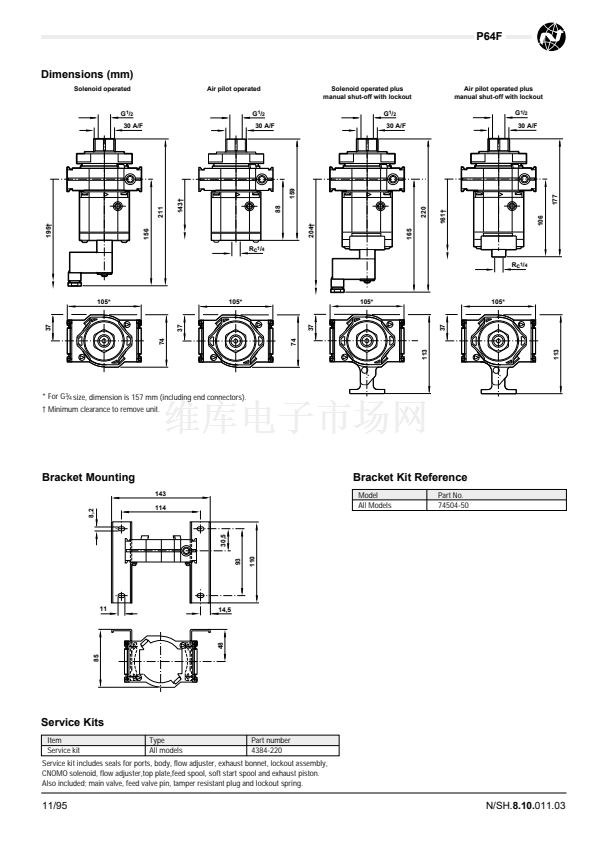

Olympian Plus plug in design
q
Controlled increase of downstream pressure on
start up
q
Solenoid, air pilot or manual operator
q
High forward flow capacity
q
High flow dump facility
Soft start valves allow a controlled increase of pressure
onto downstream cylinder/machines offering protection
to personnel and equipment.
The dump feature can be activated by removing power
to the solenoid, the pilot operator or by activating the
optional manual shut-off.
Technical Data
Medium:
Compressed Air
Maximum pressure solenoid operated:
dependant on solenoid rating (must not exceed 17 bar)
Maximum pressure pilot operated:
17 bar max.
Minimum operating pressure:
3 bar
Operating temperature solenoid operated:
dependant on solenoid rating (must be within
range -20擄C* to +80擄C)
Operating temperature pilot operated:
-20擄C* to +80擄C
* Consult our technical service for use below +2擄C

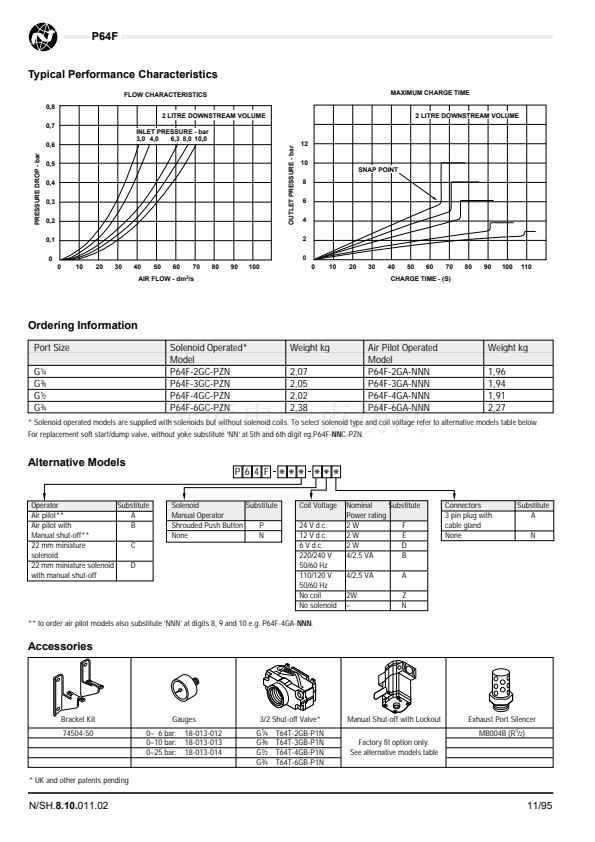

Ordering Information
To order a standard Olympian Plus soft
start/dump valve, quote model number from
table overleaf.
For non-standard models substitute appropriate
digits as instructed.
Gauge Ports:
Rc
1
鈦?/div>
8
Air Pilot Port:
Rc
1
鈦?/div>
4
Maximum flow with 6,3 bar inlet pressure and pressure drop of
0.5 bar:
57 dm
3
/s (P1 to P2 = Cv 4,2) (P2 to P3 = Cv 5,6)
Snap pressure:
Full flow when downstream pressure reaches 50 鈥?80% of
inlet pressure.
Charge time:
For 2 litre downstream volume and 6,3 bar inlet pressure
0,2 sec. minimum
76 sec. maximum
Materials:
Zinc alloy body and yoke. Aluminium intermediate body and
top plate. Synthetic elastomeric materials. Sintered plastic
filter discs, brass/steel internal components.
ISO Symbols
Solenoid operated
Air pilot
11/95
N/SH
8.10.011.01
