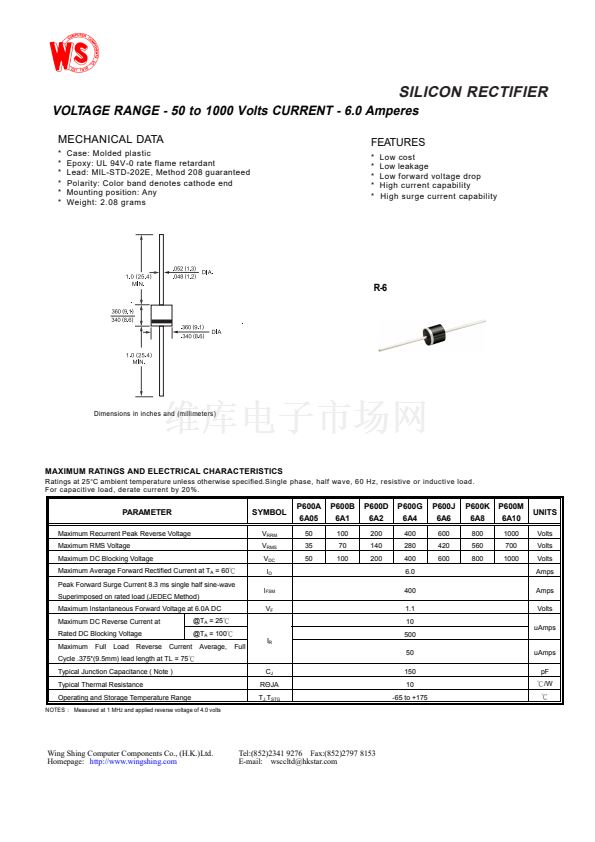

6A05-6A10
MECHANICAL DATA
*
*
*
*
*
*
Case: Molded plastic
Epoxy: UL 94V-0 rate flame retardant
Lead: MIL-STD-202E, Method 208 guaranteed
Polarity: Color band denotes cathode end
Mounting position: Any
Weight: 2.08 grams
SILICON RECTIFIER
VOLTAGE RANGE - 50 to 1000 Volts CURRENT - 6.0 Amperes
FEATURES
*
*
*
*
*
Low cost
Low leakage
Low forward voltage drop
High current capability
High surge current capability
R-6
Dimensions in inches and (millimeters)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25
o
C ambient temperature unless otherwise specified.Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
PARAMETER
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current at T
A
= 60鈩?/div>
Peak Forward Surge Current 8.3 ms single half sine-wave
Superimposed on rated load (JEDEC Method)
Maximum Instantaneous Forward Voltage at 6.0A DC
Maximum DC Reverse Current at
Rated DC Blocking Voltage
Maximum
Full
Load
Reverse
Current
@T
A
= 25鈩?/div>
@T
A
= 100鈩?/div>
Average,
Full
SYMBOL
V
RRM
V
RMS
V
DC
I
O
I
FSM
V
F
P600A
6A05
50
35
50
P600B
6A1
100
70
100
P600D
6A2
200
140
200
P600G
6A4
400
280
400
6.0
400
1.1
10
P600J
6A6
600
420
600
P600K
6A8
800
560
800
P600M
6A10
1000
700
1000
UNITS
Volts
Volts
Volts
Amps
Amps
Volts
uAmps
uAmps
pF
鈩?W
鈩?/div>
I
R
500
50
Cycle .375*(9.5mm) lead length at TL = 75鈩?/div>
Typical Junction Capacitance ( Note )
Typical Thermal Resistance
Operating and Storage Temperature Range
NOTES : Measured at 1 MH
Z
and applied reverse voltage of 4.0 volts
C
J
R螛JA
T
J,
T
STG
150
10
-65 to +175
Wing Shing Computer Components Co., (H.K.)Ltd.
Homepage:
http://www.wingshing.com
Tel:(852)2341 9276 Fax:(852)2797 8153
E-mail: wsccltd@hkstar.com
