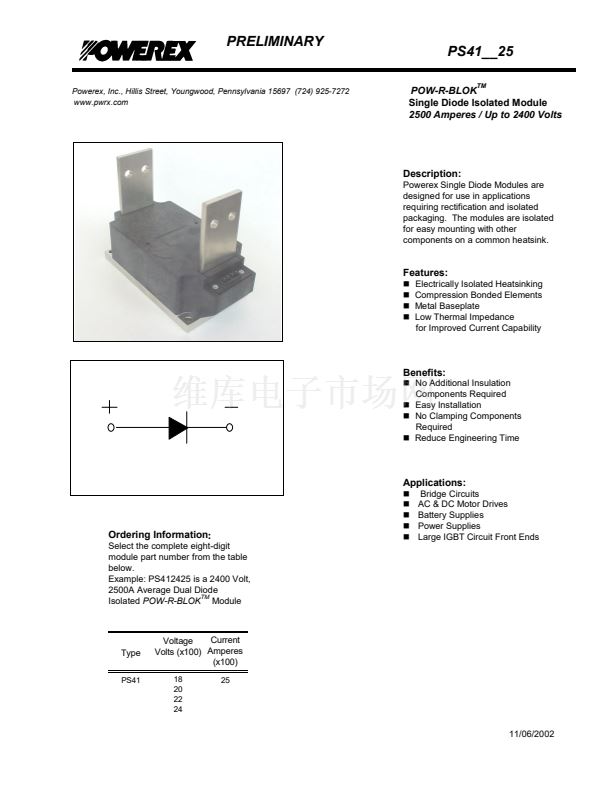

PRELIMINARY
PS41__25
POW-R-BLOK
Single Diode Isolated Module
2500 Amperes / Up to 2400 Volts
TM
Powerex, Inc., Hillis Street, Youngwood, Pennsylvania 15697 (724) 925-7272
www.pwrx.com
Description:
Powerex Single Diode Modules are
designed for use in applications
requiring rectification and isolated
packaging. The modules are isolated
for easy mounting with other
components on a common heatsink.
Features:
T
T
T
T
Electrically Isolated Heatsinking
Compression Bonded Elements
Metal Baseplate
Low Thermal Impedance
for Improved Current Capability
Benefits:
T
No Additional Insulation
Components Required
T
Easy Installation
T
No Clamping Components
Required
T
Reduce Engineering Time
Applications:
T
T
T
T
T
Bridge Circuits
AC & DC Motor Drives
Battery Supplies
Power Supplies
Large IGBT Circuit Front Ends
Ordering Information
:
Select the complete eight-digit
module part number from the table
below.
Example: PS412425 is a 2400 Volt,
2500A Average Dual Diode
TM
Isolated
POW-R-BLOK
Module
Type
PS41
Current
Voltage
Volts (x100) Amperes
(x100)
18
20
22
24
25
11/06/2002
