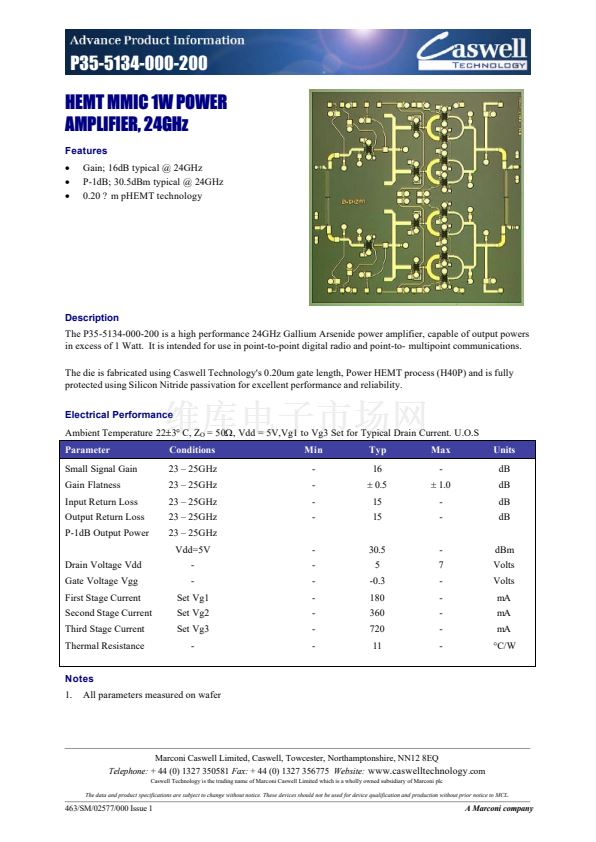

P35-5134-000-200
HEMT MMIC 1W POWER
AMPLIFIER, 24GHz
Features
鈥?/div>
鈥?/div>
鈥?/div>
Gain; 16dB typical @ 24GHz
P-1dB; 30.5dBm typical @ 24GHz
0.20 ? m pHEMT technology
Description
The P35-5134-000-200 is a high performance 24GHz Gallium Arsenide power amplifier, capable of output powers
in excess of 1 Watt. It is intended for use in point-to-point digital radio and point-to- multipoint communications.
The die is fabricated using Caswell Technology's 0.20um gate length, Power HEMT process (H40P) and is fully
protected using Silicon Nitride passivation for excellent performance and reliability.
Electrical Performance
Ambient Temperature 22鹵3擄 C, Z
O
= 50鈩? Vdd = 5V,Vg1 to Vg3 Set for Typical Drain Current. U.O.S
Parameter
Small Signal Gain
Gain Flatness
Input Return Loss
Output Return Loss
P-1dB Output Power
Drain Voltage Vdd
Gate Voltage Vgg
First Stage Current
Second Stage Current
Third Stage Current
Thermal Resistance
Conditions
23 鈥?25GHz
23 鈥?25GHz
23 鈥?25GHz
23 鈥?25GHz
23 鈥?25GHz
Vdd=5V
-
-
Set Vg1
Set Vg2
Set Vg3
-
-
-
-
-
-
-
-
30.5
5
-0.3
180
360
720
11
-
7
-
-
-
-
-
dBm
Volts
Volts
mA
mA
mA
擄C/W
Min
-
-
-
-
Typ
16
鹵 0.5
15
15
Max
-
鹵 1.0
-
-
Units
dB
dB
dB
dB
Notes
1.
All parameters measured on wafer
Marconi Caswell Limited, Caswell, Towcester, Northamptonshire, NN12 8EQ
Telephone:
+ 44 (0) 1327 350581
Fax:
+ 44 (0) 1327 356775
Website:
www.caswelltechnology
.com
Caswell Technology is the trading name of Marconi Caswell Limited which is a wholly owned subsidiary of Marconi plc
The data and product specifications are subject to change without notice. These devices should not be used for device qualification and production without prior notice to MCL.
463/SM/02577/000 Issue 1
A Marconi company
