25dBm Output Power
High Gain; typically 26dB
Surface mount package
Tx/Rx diversity switch
Description

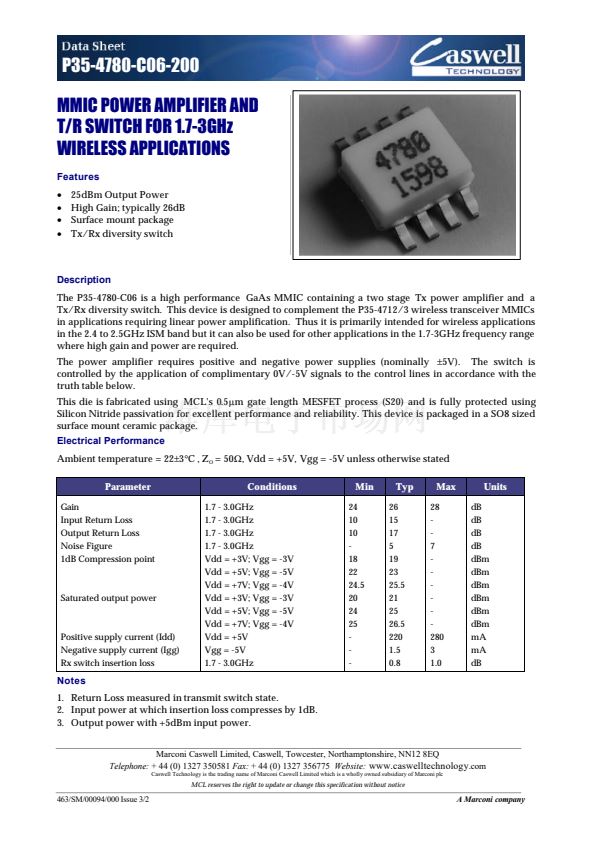

The P35-4780-C06 is a high performance GaAs MMIC containing a two stage Tx power amplifier and a
Tx/Rx diversity switch. This device is designed to complement the P35-4712/3 wireless transceiver MMICs
in applications requiring linear power amplification. Thus it is primarily intended for wireless applications
in the 2.4 to 2.5GHz ISM band but it can also be used for other applications in the 1.7-3GHz frequency range
where high gain and power are required.
The power amplifier requires positive and negative power supplies (nominally
鹵5V).
The switch is

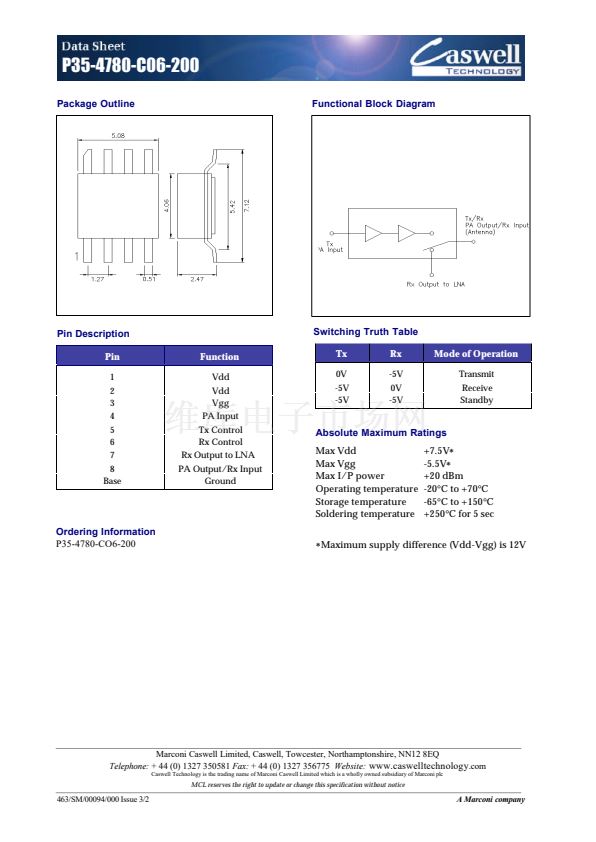

controlled by the application of complimentary 0V/-5V signals to the control lines in accordance with the
truth table below.
This die is fabricated using MCL's 0.5碌m gate length MESFET process (S20) and is fully protected using
Silicon Nitride passivation for excellent performance and reliability. This device is packaged in a SO8 sized
surface mount ceramic package.
Electrical Performance
Ambient temperature = 22鹵3擄C , Z
O
= 50鈩? Vdd = +5V, Vgg = -5V unless otherwise stated
Parameter
Gain
Input Return Loss
Output Return Loss
Noise Figure
1dB Compression point
Conditions
1.7 - 3.0GHz
1.7 - 3.0GHz
1.7 - 3.0GHz
1.7 - 3.0GHz
Vdd = +3V; Vgg = -3V
Vdd = +5V; Vgg = -5V
Vdd = +7V; Vgg = -4V
Vdd = +3V; Vgg = -3V
Vdd = +5V; Vgg = -5V
Vdd = +7V; Vgg = -4V
Vdd = +5V
Vgg = -5V
1.7 - 3.0GHz
Min
24
10
10
-
18
22
24.5
20
24
25
-
-
-
Typ
26
15
17
5
19
23
25.5
21
25
26.5
220
1.5
0.8
Max
28
-
-
7
-
-
-
-
-
-
280
3
1.0
Units
dB
dB
dB
dB
dBm
dBm
dBm
dBm
dBm
dBm
mA
mA
dB
Saturated output power
Positive supply current (Idd)
Negative supply current (Igg)
Rx switch insertion loss
Notes
1. Return Loss measured in transmit switch state.
2. Input power at which insertion loss compresses by 1dB.
3. Output power with +5dBm input power.
Marconi Caswell Limited, Caswell, Towcester, Northamptonshire, NN12 8EQ
Telephone:
+ 44 (0) 1327 350581
Fax:
+ 44 (0) 1327 356775
Website:
www.caswelltechnology
.com
Caswell Technology is the trading name of Marconi Caswell Limited which is a wholly owned subsidiary of Marconi plc
MCL reserves the right to update or change this specification without notice
463/SM/00094/000 Issue 3/2
