Broadband DC - 20GHz
Low insertion loss; 2.2dB typ at 10GHz
Fast switching speed
High isolation; typ 45dB at 10GHz
Through GaAs vias for improved
performance
Description
The P35-4310-000-200 is a high performance Gallium Arsenide monolithic single bit absorptive
step attenuator. It is suitable for use in broadband communications, instrumentation and electronic
warfare applications. The attenuator is controlled by the application of complimentary 0V/-5V
or 0/-8V signals to the control lines in accordance with the truth tables below.
The die is fabricated using MCL's 0.5碌m gate length MESFET process (S20). It is fully protected
using Silicon Nitride passivation for excellent performance and reliability.
Electrical Performance
Ambient temperature = 22鹵3擄C , Z
O
= 50鈩? Control voltages = 0V/-5V unless otherwise stated
Parameter
Insertion Loss
(reference state)
Maximum Attenuation
Condition
DC - 10GHz
10GHz - 18GHz
18GHz - 20GHz
DC - 10GHz
10GHz - 18GHz
18GHz - 20GHz
50MHz - 20GHz
50MHz - 20GHz
50% control to 10%90%RF
2-18 GHz
-
-
-
42
38
35
13
13
-
18
Min
2.2
3.0
3.4
45
40
38
16
16
5
22
Typ
2.5
3.4
3.8
-
-
-
-
-
10
-
Max
Units
dB
dB
dB
dB
dB
dB
dB
dB
ns
dBm
Input Return Loss
1
Output Return Loss
1
Switching Speed
1dB power compression point
2

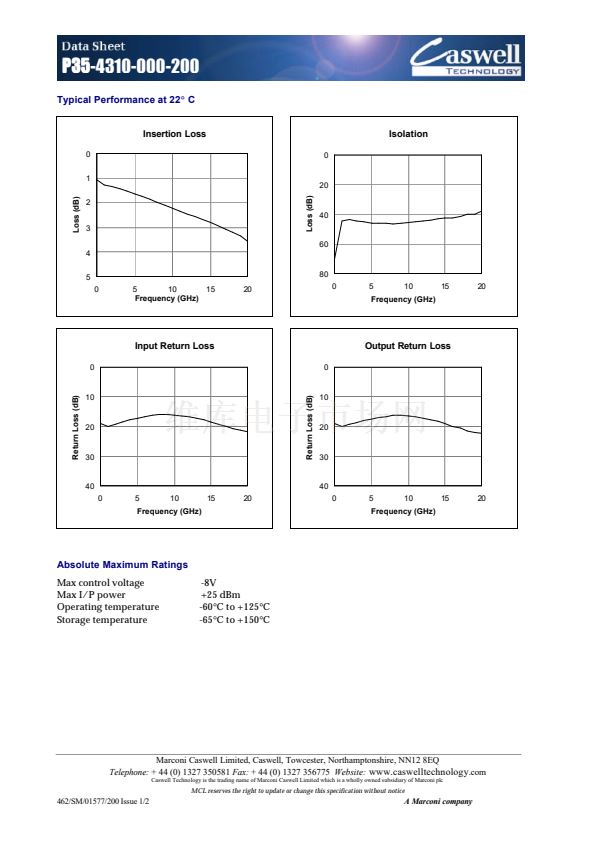

Notes
1. Return Loss measured in low loss switch state.
Input power at which insertion loss compresses by 1dB.
Marconi Caswell Limited, Caswell, Towcester, Northamptonshire, NN12 8EQ
Telephone:
+ 44 (0) 1327 350581
Fax:
+ 44 (0) 1327 356775
Website:
www.caswelltechnology
.com
Caswell Technology is the trading name of Marconi Caswell Limited which is a wholly owned subsidiary of Marconi plc
MCL reserves the right to update or change this specification without notice
462/SM/01577/200 Issue 1/2
