P35-4304-000-200
Marconi Optical Components
6 Bit Digital Attenuator,
0.5 - 16GHz
Features
路
路
路
路
路
Broadband 0.5 - 16GHz
Low insertion loss; 4dB typ at 8GHz
Attenuation 0.5dB steps to 31.5dB
Fast switching speed
Through GaAs vias for improved performance
Description
The P35-4304-000-200 is a high performance Gallium Arsenide monolithic 6 bit digital attenuator offering an attenuation
range of 31.5dB in 0.5dB steps. It is suitable for use in broadband communications, instrumentation and electronic warfare
applications. The attenuator is controlled by the application of complimentary 0V/-5V or 0/-8V signals to the control lines

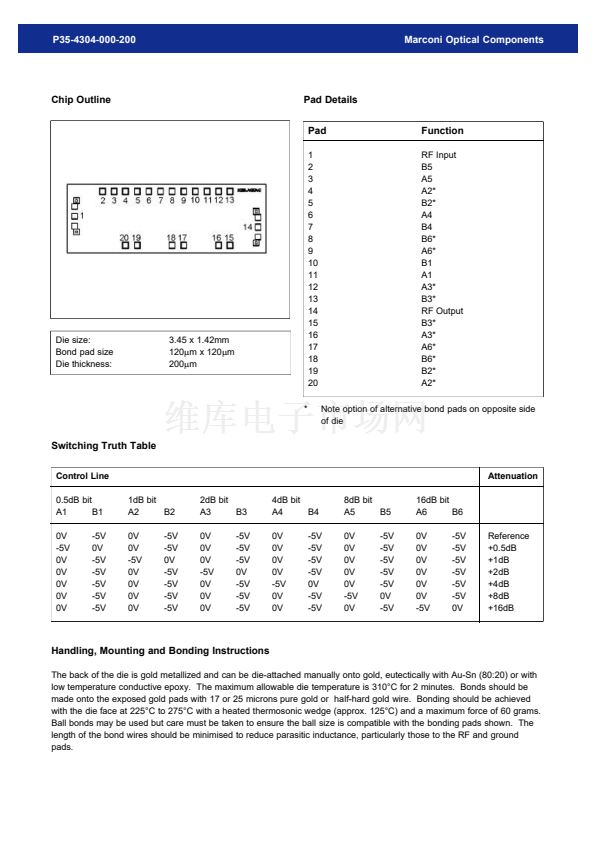

in accordance with the truth table below. The full attenuation range is achieved by modifying the control lines in
combination.
The die is fabricated using MOC's 0.5碌m gate length MESFET process (S20). It is fully protected using Silicon Nitride
passivation for excellent performance and reliability.
Electrical Performance
Ambient temperature = 22鹵3擄C , ZO = 50鈩? Control voltages = 0V/-5V unless otherwise stated
Parameter
Insertion Loss1
(reference state)
Attenuation Range
Step Size
Attenuation Accuracy
Conditions
0.5 - 8GHz
8GHz - 16GHz
0.5 - 16GHz
0.5 - 16GHz
0.5 - 8GHz
8 - 12GHz
12 - 16GHz
0.5 - 16GHz
0.5 - 16GHz
0.5 - 16GHz
50% Control to 10%90%RF
Min
-
-
-
-
-
-
-
10
10
-
-
Typ
4
5
31.5
0.5
-
-
-
20
20
18
5
Max
5
6
-
-
鹵0.3 鹵3%
鹵0.5 鹵10%
鹵0.5 鹵15%
-
-
-
10
Units
dB
dB
dB
dB
dB
dB
dB
dB
dB
dBm
nS
Input Return Loss
Output Return Loss
Input Power @ P-1dB Point
Switching Speed
Notes
Insertion Loss measured in low loss state.
1
2
3
4
